Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™
i7/i5/i3/Pentium®/Celeron® CPU per Intel® Q170, DDR4,
VGA/IDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s,
Quick Installation Guide
Package List
PCIE-Q170 package includes the following items:
1 x PCIE-Q170 single board computer
1 x SATA cable (P/N: 32000-0628000-RS)
1 x Mini jumper pack
1 x QIG (Quick Installation Guide)
1 x Utility CD
PCIe mini, mSATA, HD Audio, iAMT,
iRIS-2400 and RoHS
PCIE-Q170
Version 1.0
Jul 27, 2016.
©2016 Copyright by IEI Integration corp.
All rights reserved.
1
Advertisement
Related Manuals for IEI Technology PCIE-Q170
Summary of Contents for IEI Technology PCIE-Q170
-
Page 1: Quick Installation Guide

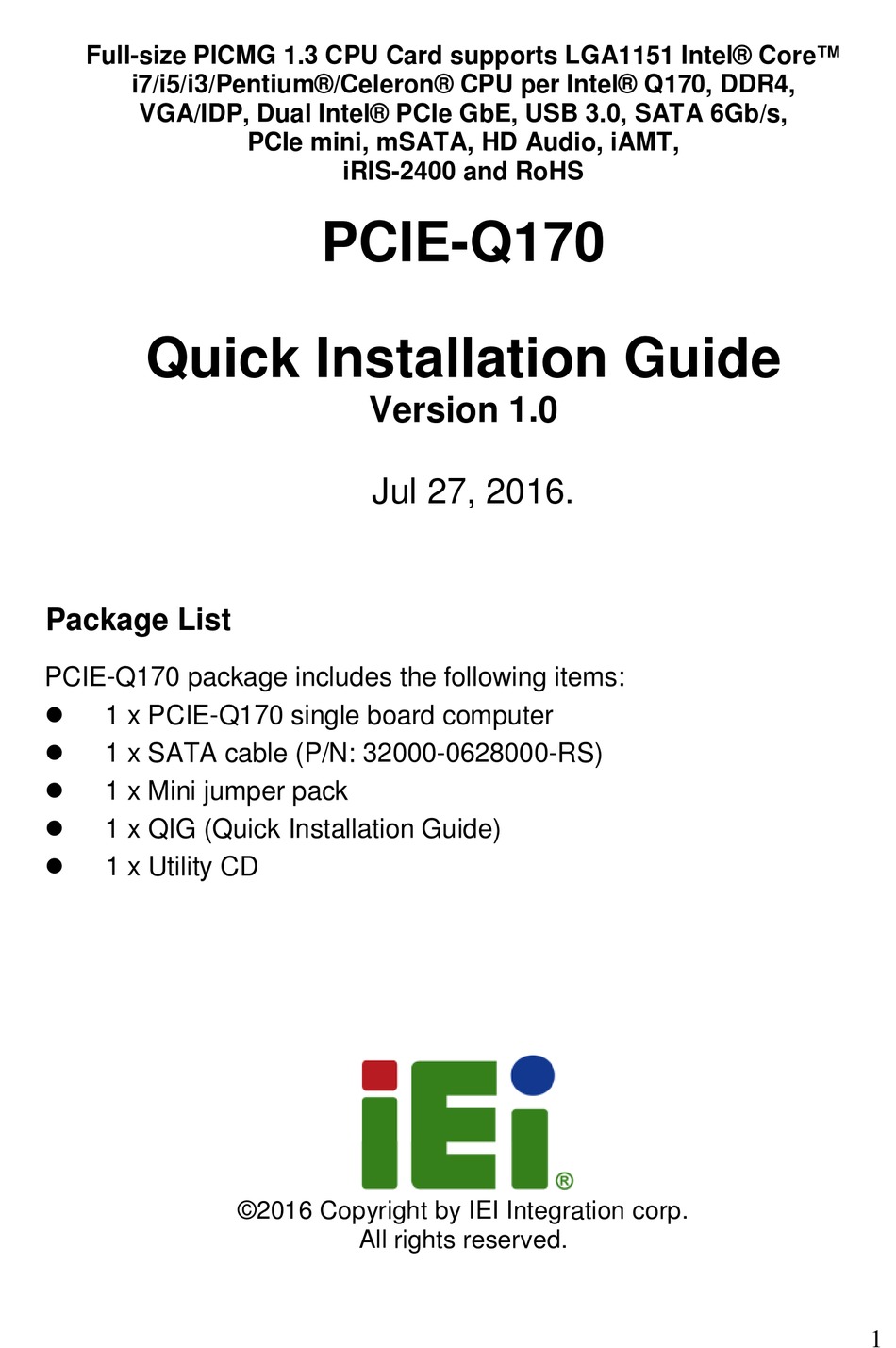

RoHS PCIE-Q170 Quick Installation Guide Version 1.0 Jul 27, 2016. Package List PCIE-Q170 package includes the following items: 1 x PCIE-Q170 single board computer 1 x SATA cable (P/N: 32000-0628000-RS) 1 x Mini jumper pack ... - Page 2 Specifications CPU: LGA1151 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU PCH: Intel® Q170 Memory: Four 288-pin 1867/2133MHz Dual-Channel DDR4 SDRAM unbuffered DIMM supported up to 64GB BIOS: UEFI BIOS Graphic Engine: Intel® HD Graphics Gen 9 supports DX11/12, OpenCL 2.x and OpenGL 4.3/4.4 Decode/Encode for HEVC, VP8, VP9, VDENC ...
- Page 3 Front Panel: 1 x Front Panel (Power LED, HDD LED, Speaker, Power Button, Reset Button) LAN LED: 2 x 2 Pin for LAN1 LED, LAN2 LED (Active) Audio: Support 7.1 channel HD audio by IEI AC-KIT-892HD kit ...
-
Page 4: Ordering Information
Ordering Information PCIE-Q170-R10: Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU per Intel® Q170, DDR4, VGA/ IDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, PCIe mini, mSATA, HD Audio, iAMT and RoHS PCIE-Q170-i2-R10: Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™... - Page 5 DP-HDMI-R10: DisplayPort to HDMI converter board (For iEi IDP connector) DP-LVDS-R10: DisplayPort to LVDS converter board (For iEi IDP connector) DP-VGA-R10: DisplayPort to VGA converter board (For iEi IDP connector) SAIDE-KIT01-R10: SATA to IDE/CF Converter board...
-
Page 6: Jumpers Setting And Connectors
Jumpers setting and connectors LABEL FUNCTION J_ATX_AT1 AT/ATX mode select switch J_CMOS1 Clear CMOS button PCIE x16 Power PCIEX16 channel mode setting USB SW1 Power USB power setting USB SW2 Power MSATA_SW1 M-SATA switch auto-detect J_FLASH1 Flash descriptor security override SW_BIOS1_2 Switch BIOS1 or BIOS2 (option function) J_AUDIO1... - Page 7 TPM1 TPM connector USB1, USB2, USB3 Internal USB 2.0 connectors USB4 External USB2.0 type A Connector USB3_1, USB3_2 USB 3.0 connector USB3_34 Internal USB 3.0 connector LAN1, LAN2 RJ45 LAN connectors VGA1 VGA connector J_ATX_AT1: AT/ATX mode select switch PIN NO. DESCRIPTION Short 1 - 2 ATX Mode (default)
- Page 8 USB SW1, USB SW2: USB power setting PCIE x16 DESCRIPTION +5V DUAL 5V DUAL (default) Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc. Chipset Auto Power Button Status [Disabled(ATX)] Restore AC Power Loss [Last State] ------------------ > PCI Express Configuration >...
- Page 9 J_AUDIO1: Audio source connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDA_BIT_CLK HDA_SYNC HDA_SDOUT HDA_SPKR HDA_SDIN HDA_RST# HDA_GND HDA_VCC HDA_GND HDA_+12V CHASSIS1: Chassis status connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3VSB CHASSIS OPEN CPU_FAN1: CPU fan connector PIN NO. DESCRIPTION PIN NO.
- Page 10 DP1: Display port connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION AUXP LANE1N AUXN LANE1P LANE2P LANE3N LANE2N LANE3P LANE0P AUX_CTRL_DET_D LANE0N +3.3V CN1: EC debug connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION EC_EPP_STB# EC_EPP_AFD# EC_EPP_PD0 EC_EPP_PD1 EC_EPP_INIT# EC_EPP_PD2 EC_EPP_SLIN# EC_EPP_PD3 EC_EPP_PD4 EC_EPP_PD5 EC_EPP_BUSY...
- Page 11 I2C1: I2C Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCH_GP38 (I2C_DAT) PCH_GP39 (I2C_CLK) KB_MS1: Keyboard and mouse connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION MSDATA MSCLK KBDATA KBCLK LED_LAN1: LAN1 link LED connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V LAN1_LED_LNK#_ACT LED_LAN2: LAN2 link LED connector PIN NO.
- Page 12 MPCIE1: M-SATA card connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# +3.3V 1.5V MSATA_CLK# MSATA _CLK PLTRST_N +3.3V PLTRST_N SATA_RX+ +3.3V SATA_RX- 1.5V SMB_CLK SATA_TX- SMB_DATA SATA_TX+ USB_DATA- USB_DATA+ +3.3V +3.3V +3.3V CLINK_CLK CLINK_DATA 1.5V CLINK_RST# MSATA_DET +3.3V...
- Page 13 COM1, COM2: RS-232 serial port connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION COM3,COM4: RS-232/422/485 serial port connector PIN NO. RS-232 RS-422 RS-485 TXD422- TXD485- TXD422+ TXD485+ RXD422+ RXD422- SATA1, SATA2, SATA3, SATA4, SATA5, SATA6: SATA 6Gb/s drive connectors PIN NO. DESCRIPTION PIN NO.
- Page 14 SMB1: SMBUS connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SMB_DATA SMB_CLK JSPI1: Flash SPI ROM connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V SPI_CS# SPI_SO SPI_CLK SPI_SI JSPI2: Flash EC ROM connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION +3.3V SPI_CS# SPI_SO SPI_CLK SPI_SI...
- Page 15 USB1, USB2, USB3: Internal USB 2.0 connectors PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA+ USB_DATA+ USB_DATA- USB4: External USB 2.0 type A Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION DATA- DATA+ USB3_34: Internal USB 3.0 Connector PIN NO. DESCRIPTION PIN NO.
- Page 16 USB3_1, USB3_2: Internal USB 3.0 connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION VBUS STDA_SSRX_N STDA_SSRX_P GND_DRAIN STDA_SSTX_N STDA_SSTX_P VGA1: VGA connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION GREEN BLUE DDCDA HSYNC VSYNC DDCCLK...
- Page 17 Board Layout: Jumper and Connector Locations (Unit: mm)
