ITRON SHARPFLOW SWB7 Quick Start Manual page 30

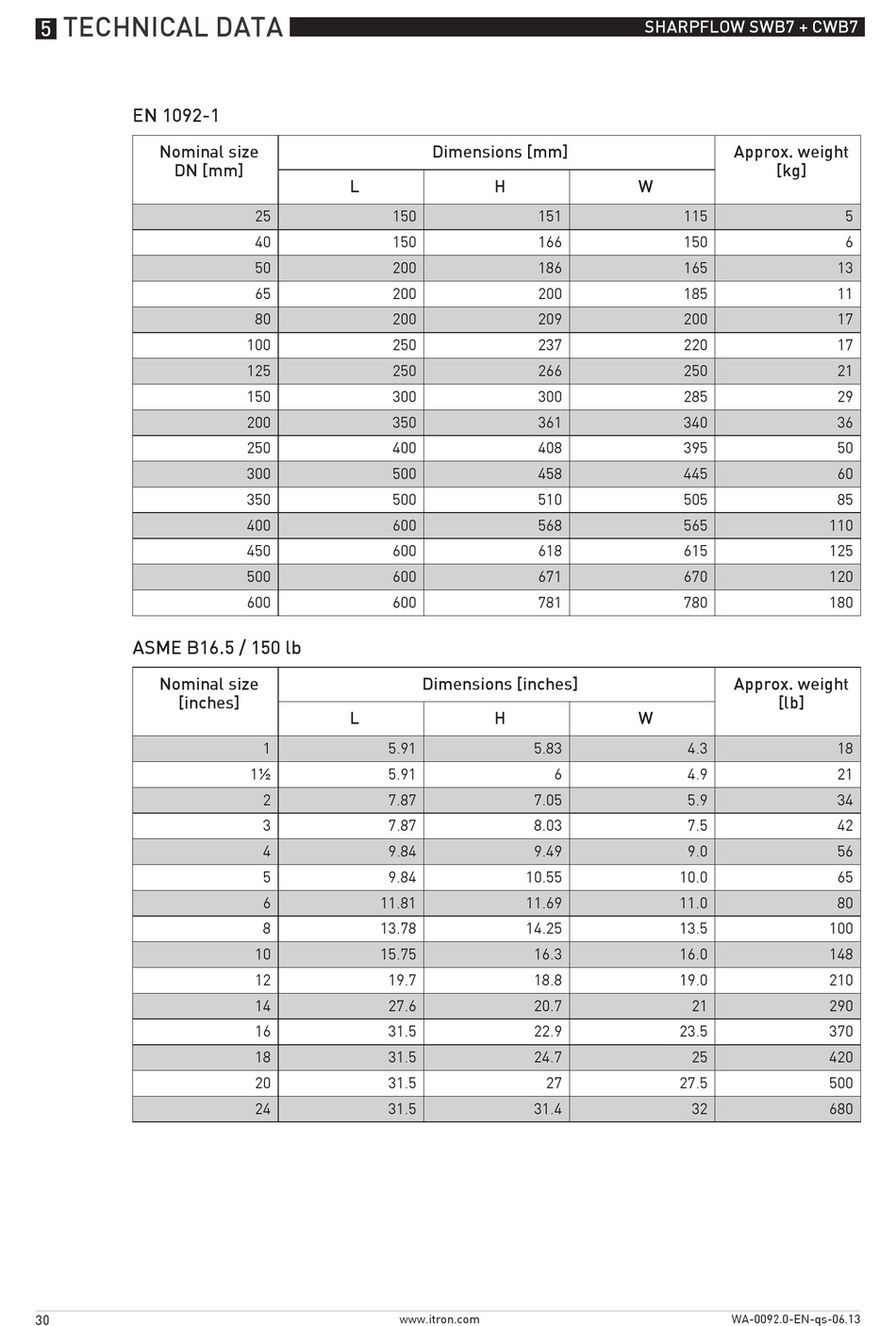

TECHNICAL DATA
5
EN 1092-1
Nominal size
DN [mm]
ASME B16.5 / 150 lb
Nominal size
[inches]
30
L
25 150
40 150
50 200
65 200
80 200
100 250
125 250
150 300
200 350
250 400
300 500
350 500
400 600
450 600
500 600
600 600
L
1 5.91
1½ 5.91
2 7.87
3 7.87
4 9.84
5 9.84
6 11.81
8 13.78
10 15.75
12 19.7
14 27.6
16 31.5
18 31.5
20 31.5
24 31.5
