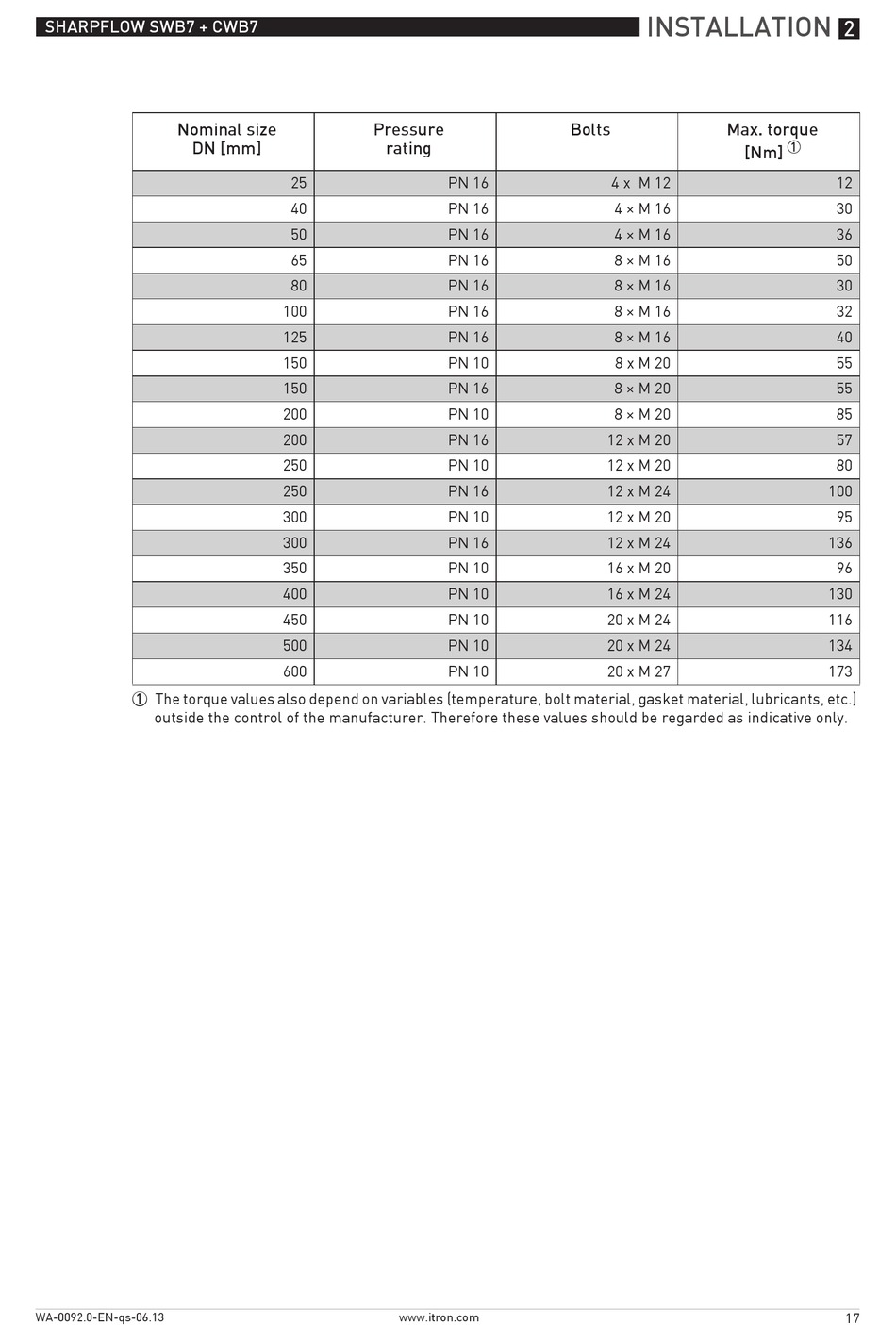

ITRON SHARPFLOW SWB7 Quick Start Manual page 17

SHARPFLOW SWB7 + CWB7
Nominal size
DN [mm]
1 The torque values also depend on variables (temperature, bolt material, gasket material, lubricants, etc.)
outside the control of the manufacturer. Therefore these values should be regarded as indicative only.
WA-0092.0-EN-qs-06.13
Pressure
rating
25 PN 16
40 PN 16
50 PN 16
65 PN 16
80 PN 16
100 PN 16
125 PN 16
150 PN 10
150 PN 16
200 PN 10
200 PN 16
250 PN 10
250 PN 16
300 PN 10
300 PN 16
350 PN 10
400 PN 10
450 PN 10
500 PN 10
600 PN 10
