INSTALLATION
2

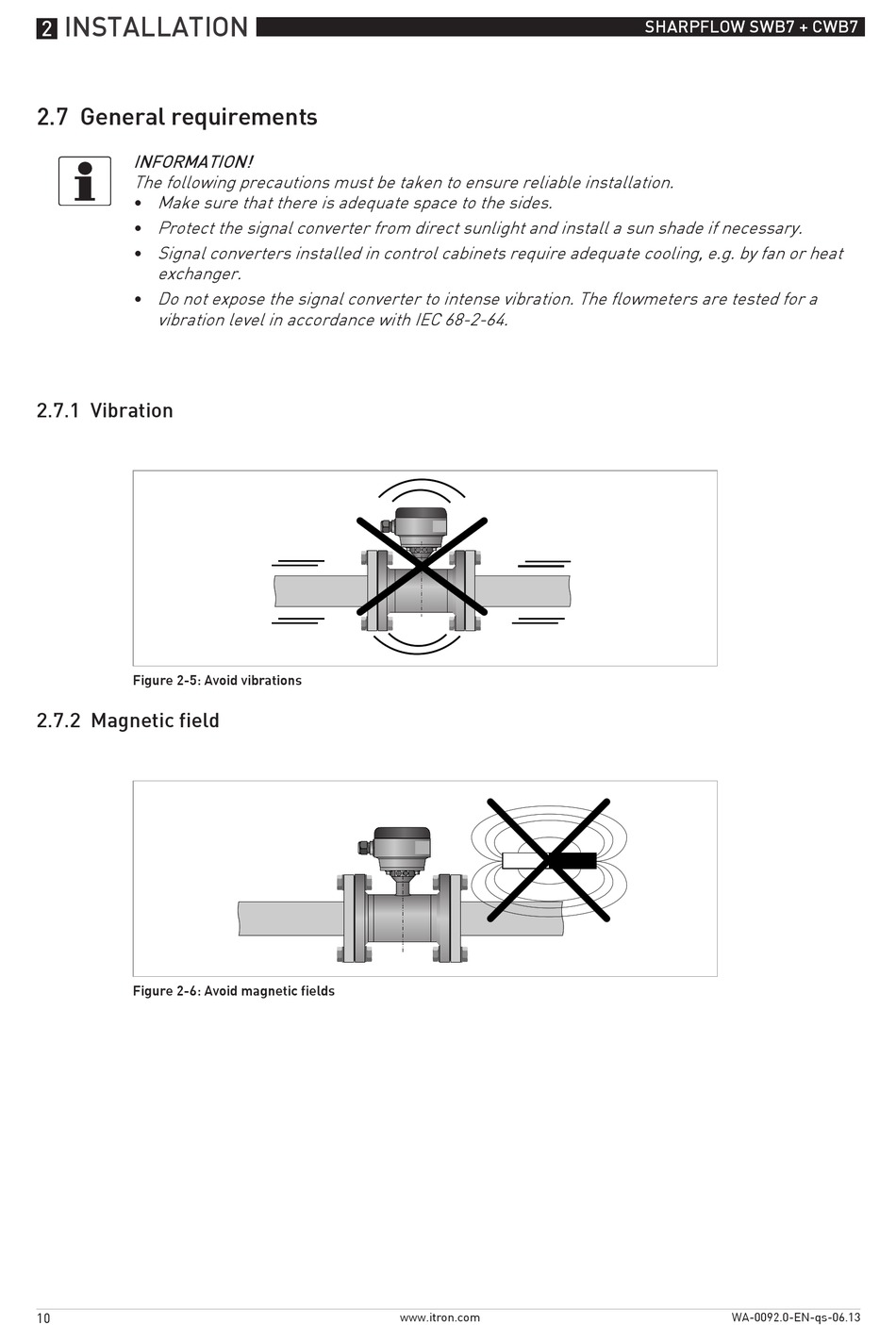

2.7 General requirements

INFORMATION!
The following precautions must be taken to ensure reliable installation.
Make sure that there is adequate space to the sides.
•
Protect the signal converter from direct sunlight and install a sun shade if necessary.
•
Signal converters installed in control cabinets require adequate cooling, e.g. by fan or heat
•
exchanger.
Do not expose the signal converter to intense vibration. The flowmeters are tested for a
•
vibration level in accordance with IEC 68-2-64.

2.7.1 Vibration

Figure 2-5: Avoid vibrations

2.7.2 Magnetic field

Figure 2-6: Avoid magnetic fields
