- Page 1 OpenWay® Riva Intelis Gas Meter Installation Guide Technical knowledge to shape your future Communications...
- Page 2 Suggestions For more information about Itron or Itron products, see www.itron.com. If you have questions or comments about the software or hardware product, contact Itron Technical Support Services. Contact •...
-
Page 3: Table Of Contents
Contents Chapter 1 Important Safety and Compliance Information......1 USA, FCC Part 15 compliance..........................1 Canada, ISED compliance............................ 2 RF Exposure (FCC/ISED)............................2 Electromagnetic compatibility..........................2 Intrinsic safety............................... 3 Lithium battery..............................3 Transportation classification..........................3 Electrostatic discharge............................3 Electrostatic ignition hazard..........................3 Device cleaning..............................4 Do Not Drop ................................. -
Page 4: Chapter 1 Important Safety And Compliance Information
To ensure system performance, this device and antenna shall not be changed or modified without the express approval of Itron. Per FCC rules, unapproved modifications or operation beyond or in conflict with these instructions for use could void the user's authority to operate the equipment. -
Page 5: Canada, Ised Compliance
Important Safety and Compliance Information Canada, ISED compliance Compliance Statement Canada Déclaration de Conformité This device complies with Innovation, Science Le présent appareil est conforme aux CNR and Economic Development Canada (ISED) d'Industrie Canada applicables aux appareils license-exempt RSS standard(s). Operation is radio exempts de licence. -
Page 6: Intrinsic Safety
Transportation classification The Federal Aviation Administration prohibits operating transmitters and receivers on all commercial aircraft. When powered, the Itron device is considered an operating transmitter and receiver and cannot be shipped by air. All product returns must be shipped by ground transportation. -
Page 7: Device Cleaning
Device cleaning Warning: Clean only with a damp cloth. Do Not Drop Warning: While Itron modules are designed to withstand a drop, dropping the module may damage the device and void the warranty. OpenWay® Riva Intelis Gas Installation Guide TDC-1782-000... -
Page 8: Product Notification
Direct customer inquiries as to the selection and application of gas meters to your local Itron sales representative or Itron Support. • Itron does not endorse or warrant the completeness or accuracy of any third-party valve installation procedures or practices, unless otherwise provided in writing by Itron. -
Page 9: Chapter 2 The Openway® Riva Intelis Gas Meter

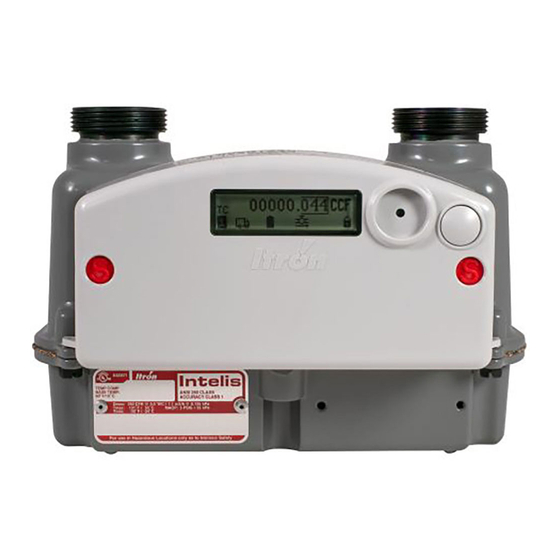

Chapter 2 The OpenWay® Riva Intelis Gas Meter The OpenWay® Riva Intelis Gas Meter is a solid state static meter featuring built-in temperature conversion, an integrated shut off valve, and an integrated OpenWay Riva 500G communications module for extended datalogging capability. The Intelis meter supports the listed functionality. -
Page 10: Openway Riva Intelis Gas Meter Lcd
The OpenWay® Riva Intelis Gas Meter OpenWay Riva Intelis Gas Meter LCD The Intelis meter LCD provides a visual display through a liquid crystal display (LCD). The LCD: • Displays a 5-digit plus three (in CCF) in NTC or TC measurement. ◦... -
Page 11: Integrated 500G Ert Module
Integrated 500G ERT module The integrated 500G radio-frequency (RF) gas ERT module is designed to operate in Mobile Mode and be read by ChoiceConnect handheld readers, mobile collection, or the Itron Mobile Radio connected to a user-supplied computer or Bluetooth device. -
Page 12: Auto Disconnect Configuration
The OpenWay® Riva Intelis Gas Meter Auto disconnect configuration The Intelis gas meter can be configured for an automatic shut off for the following event types. • High flow. Configuration for a high flow event enables an automatic shut off if the high flow threshold is reached or exceeded. -
Page 13: Intelis Meter Dimensions
The OpenWay® Riva Intelis Gas Meter Specification Specification value Battery information 4 A cell Lithium manganese dioxide (LiMn02) 'A' cell batteries, replaceable Battery life 20 years for meter, 500G, and valve using recommended operating parameters Pressure tap 1/8" NPT pipe plug pressure tap standard on meter outlet Badging Standard aluminum manufacturing and optional customer badge... -
Page 14: Chapter 3 Installing The Intelis Meter
Chapter 3 Installing the Intelis Meter This section provides the Intelis meter installation information. Warning: This product, as of the date of its manufacture, is designed and tested to conform to all governmental or industry safety standards then existing as well as may apply to the manufacturer. -
Page 15: The Intelis Meter Capacity And Pressure Loss Test
Installing the Intelis Meter 3. Support the meter so that both hubs are against the connection washers and run the connection nuts down hand tight. 4. In an alternating fashion, tighten the nuts to the appropriate torque for the connection size. -
Page 16: Chapter 4 Proving And Calibrating The Intelis Meter
Note: Temper meters unpackaged and uncapped in the proving area for 24 hours prior to the testing. Some configuration of the meter is necessary for the prover station type. This configuration is completed using the FDM configuration file. Proving accessory Itron part number Intelis prover cable CFG-7100-001 Prover types There are a variety of prover types that can be used to prove the Intelis meter. -
Page 17: Proving Operations
Proving and Calibrating the Intelis Meter Proving operations Proving the Intelis meter involves the following tasks. 1. Configuring Test Mode. 2. Entering Test Mode. 3. Recording prover consumption. 4. Exiting Test Mode. 5. Adjusting the calibration. Configuring Test Mode Test Mode configuration is completed using Field Deployment Manager (FDM) in one of two ways. -
Page 18: Recording Prover Consumption
Proving and Calibrating the Intelis Meter 5. The Intelis meter LCD moves to Test Display Mode. Note: When the Intelis meter is in Test Display Mode, FDM can be used to confirm the meter is in Test Mode. Recording prover consumption While the Intelis meter is in Test Mode, the listed operations occur. -
Page 19: Chapter 5 Openway Riva Intelis Gas Meter Maintenance
Chapter 5 OpenWay Riva Intelis Gas Meter Maintenance This section describes maintenance to keep the OpenWay Riva Intelis Gas Meter operating at optimum performance. OpenWay® Riva Intelis Gas Installation Guide TDC-1782-000 Proprietary and Confidential...
