INSTALLATION
2

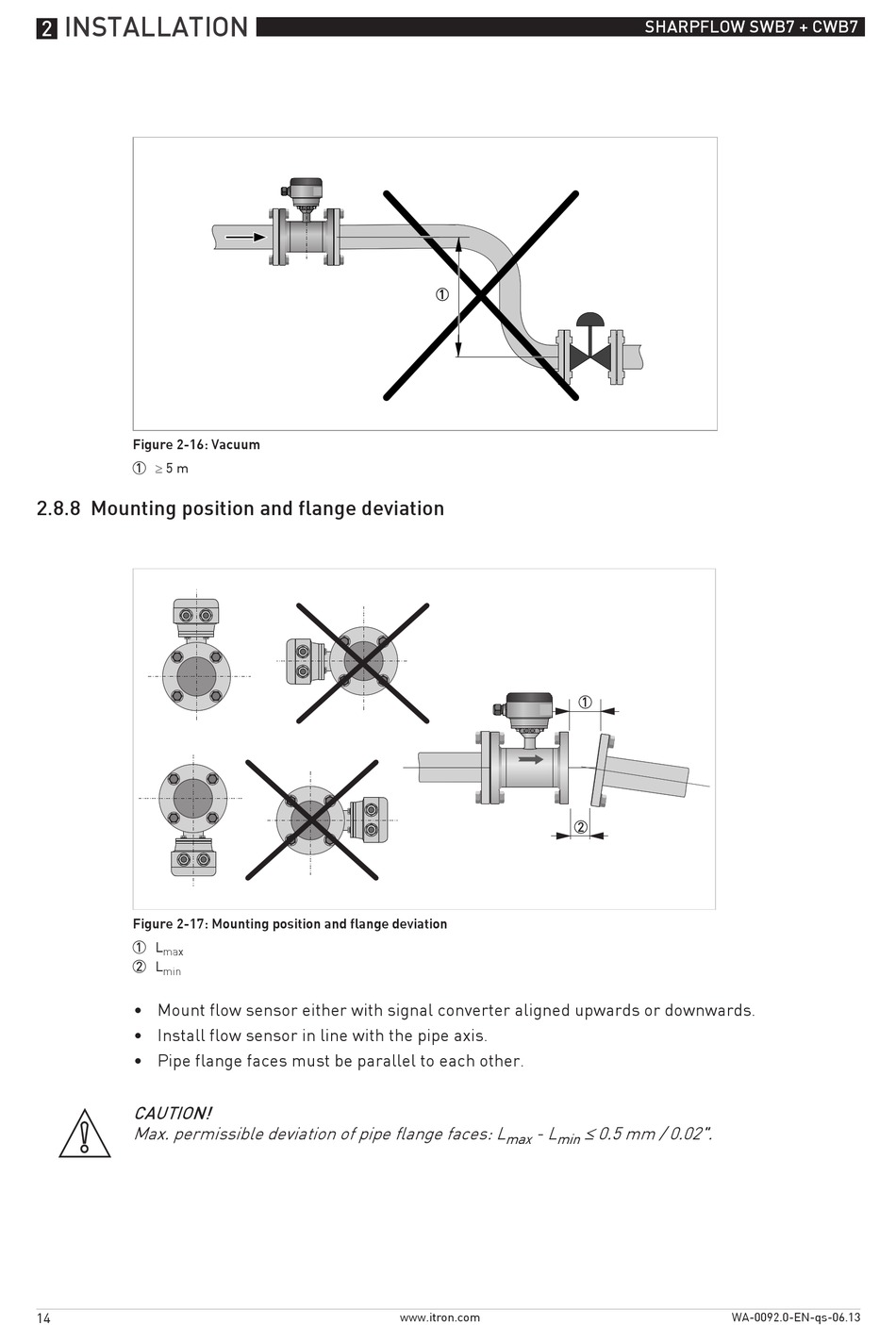

Figure 2-16: Vacuum
1 ≥ 5 m

2.8.8 Mounting position and flange deviation

Figure 2-17: Mounting position and flange deviation
1 L
max
2 L
min
• Mount flow sensor either with signal converter aligned upwards or downwards.
• Install flow sensor in line with the pipe axis.
• Pipe flange faces must be parallel to each other.
CAUTION!
Max. permissible deviation of pipe flange faces: L
14
- L
max min
www.itron.com
SHARPFLOW SWB7 + CWB7
≤ 0.5 mm / 0.02".
