2.10 Mounting of the signal converter

INFORMATION!
Assembly materials and tools are not part of the delivery. Use the assembly materials and tools
in compliance with the applicable occupational health and safety directives.

2.10.1 IP67 housing, remote version

Pipe mounting Pipe mounting
Pipe mounting Pipe mounting

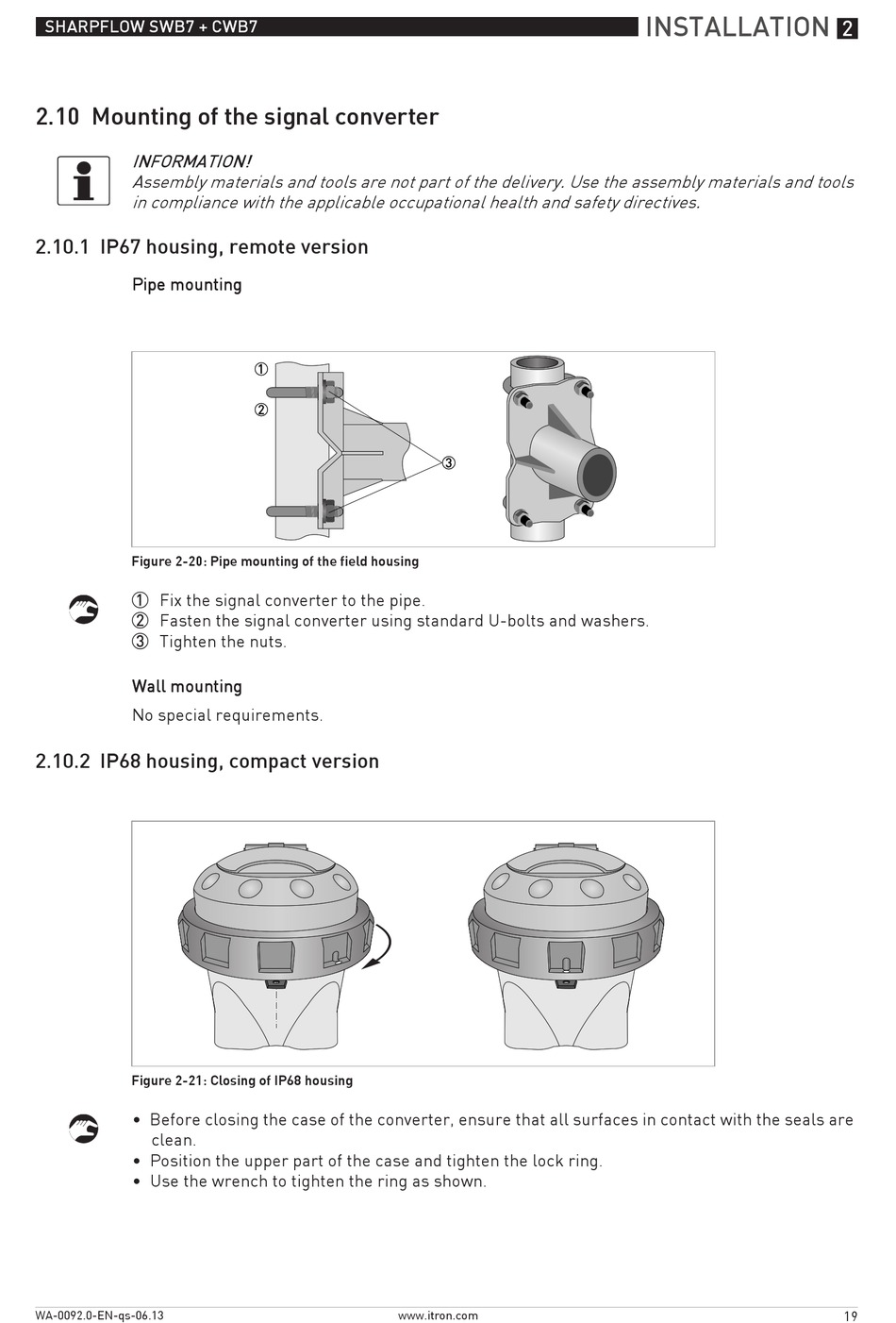

Figure 2-20: Pipe mounting of the field housing
1 Fix the signal converter to the pipe.
2 Fasten the signal converter using standard U-bolts and washers.
3 Tighten the nuts.
Wall mounting Wall mounting Wall mounting Wall mounting
No special requirements.

2.10.2 IP68 housing, compact version

Figure 2-21: Closing of IP68 housing
• Before closing the case of the converter, ensure that all surfaces in contact with the seals are
clean.
• Position the upper part of the case and tighten the lock ring.
• Use the wrench to tighten the ring as shown.
