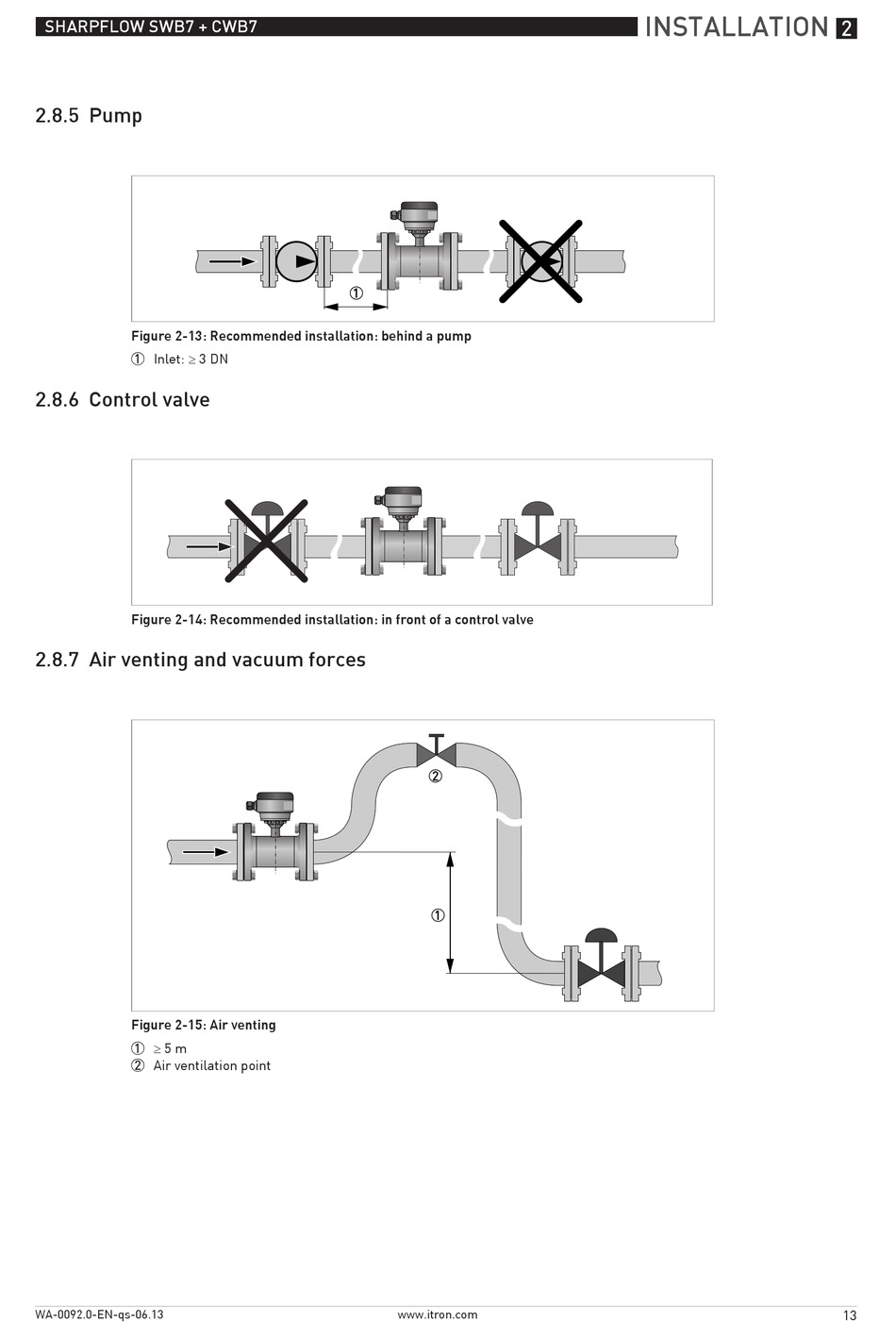

SHARPFLOW SWB7 + CWB7
2.8.5 Pump
Figure 2-13: Recommended installation: behind a pump
1 Inlet: ≥ 3 DN
2.8.6 Control valve
Figure 2-14: Recommended installation: in front of a control valve
2.8.7 Air venting and vacuum forces
Figure 2-15: Air venting
1 ≥ 5 m
2 Air ventilation point
WA-0092.0-EN-qs-06.13
www.itron.com
INSTALLATION
2
13
