SHARPFLOW SWB7 + CWB7

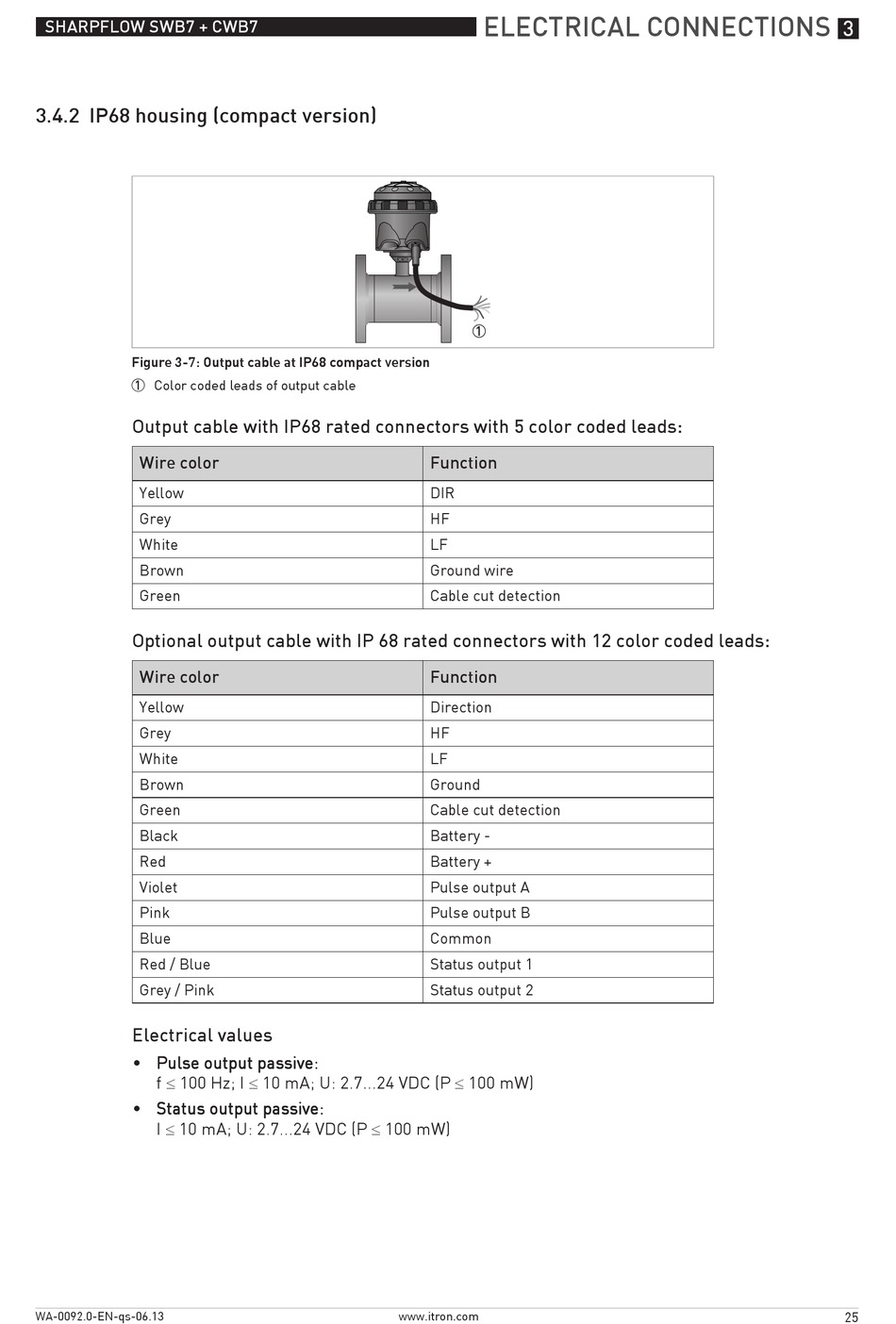

3.4.2 IP68 housing (compact version)

Figure 3-7: Output cable at IP68 compact version
1 Color coded leads of output cable
Output cable with IP68 rated connectors with 5 color coded leads:
Wire color
Yellow
Grey
White
Brown
Green
Optional output cable with IP 68 rated connectors with 12 color coded leads:
Wire color
Yellow
Grey
White
Brown
Green
Black
Red
Violet
Pink
Blue
Red / Blue
Grey / Pink
Electrical values
• Pulse output passive:
Pulse output passive:
Pulse output passive:
Pulse output passive:
f ≤ 100 Hz; I ≤ 10 mA; U: 2.7...24 VDC (P ≤ 100 mW)
• Status output passive:
Status output passive:
Status output passive:
Status output passive:
I ≤ 10 mA; U: 2.7...24 VDC (P ≤ 100 mW)
WA-0092.0-EN-qs-06.13
ELECTRICAL CONNECTIONS
Function
DIR
HF
LF
Ground wire
Cable cut detection
Function
Direction
HF
LF
Ground
Cable cut detection
Battery -
Battery +
Pulse output A
Pulse output B
Common
Status output 1
Status output 2
