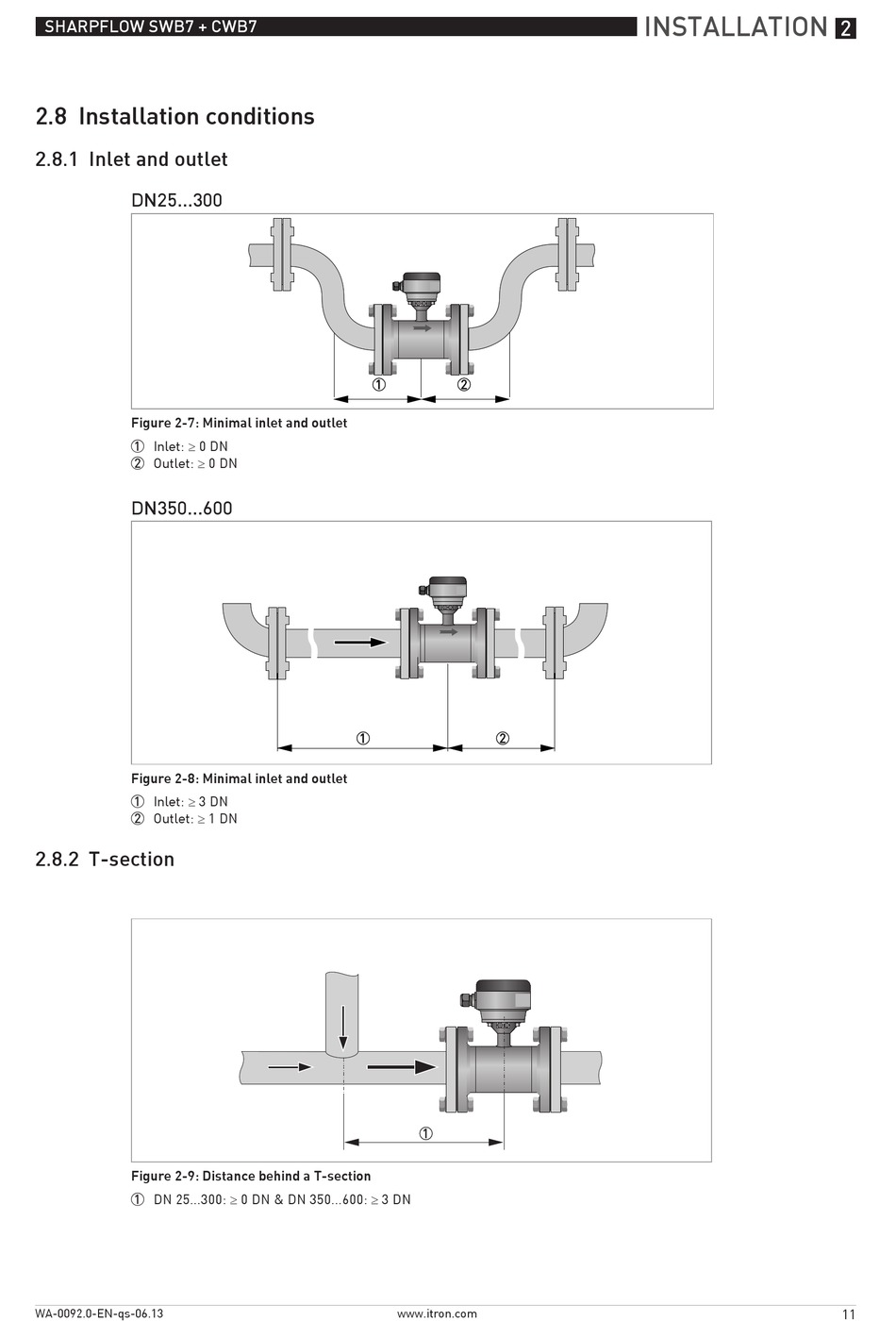

SHARPFLOW SWB7 + CWB7
2.8 Installation conditions
2.8.1 Inlet and outlet
DN25...300
Figure 2-7: Minimal inlet and outlet
1 Inlet: ≥ 0 DN
2 Outlet: ≥ 0 DN
DN350...600
Figure 2-8: Minimal inlet and outlet
1 Inlet: ≥ 3 DN
2 Outlet: ≥ 1 DN
2.8.2 T-section
Figure 2-9: Distance behind a T-section
1 DN 25...300: ≥ 0 DN & DN 350...600: ≥ 3 DN
WA-0092.0-EN-qs-06.13
