SHARPFLOW SWB7 + CWB7

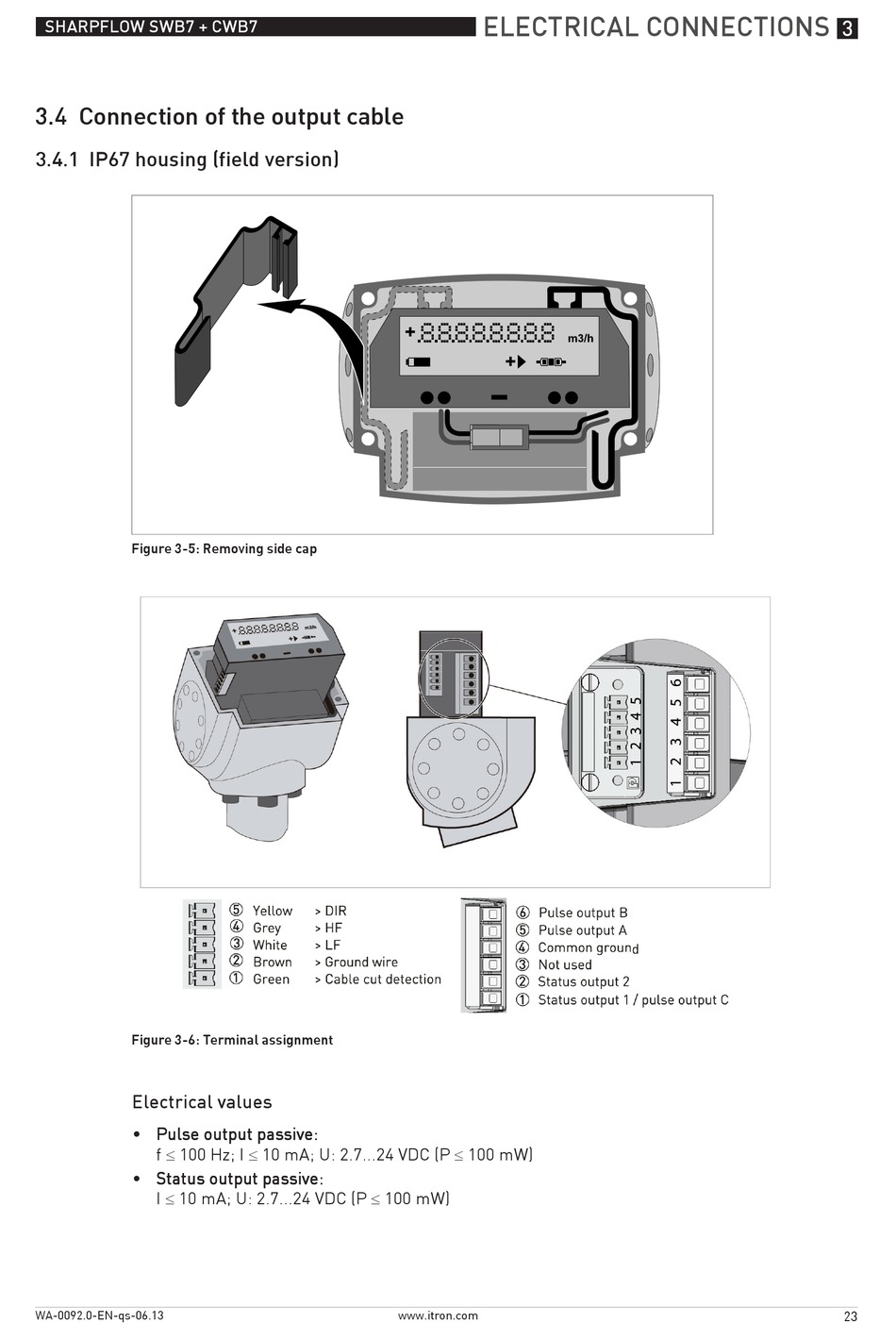

3.4 Connection of the output cable

3.4.1 IP67 housing (field version)

Figure 3-5: Removing side cap
Figure 3-6: Terminal assignment
Electrical values
• Pulse output passive: Pulse output passive: Pulse output passive: Pulse output passive:
f ≤ 100 Hz; I ≤ 10 mA; U: 2.7...24 VDC (P ≤ 100 mW)
• Status output passive: Status output passive: Status output passive: Status output passive:
I ≤ 10 mA; U: 2.7...24 VDC (P ≤ 100 mW)
WA-0092.0-EN-qs-06.13
ELECTRICAL CONNECTIONS
www.itron.com
3
23
