INSTALLATION
2

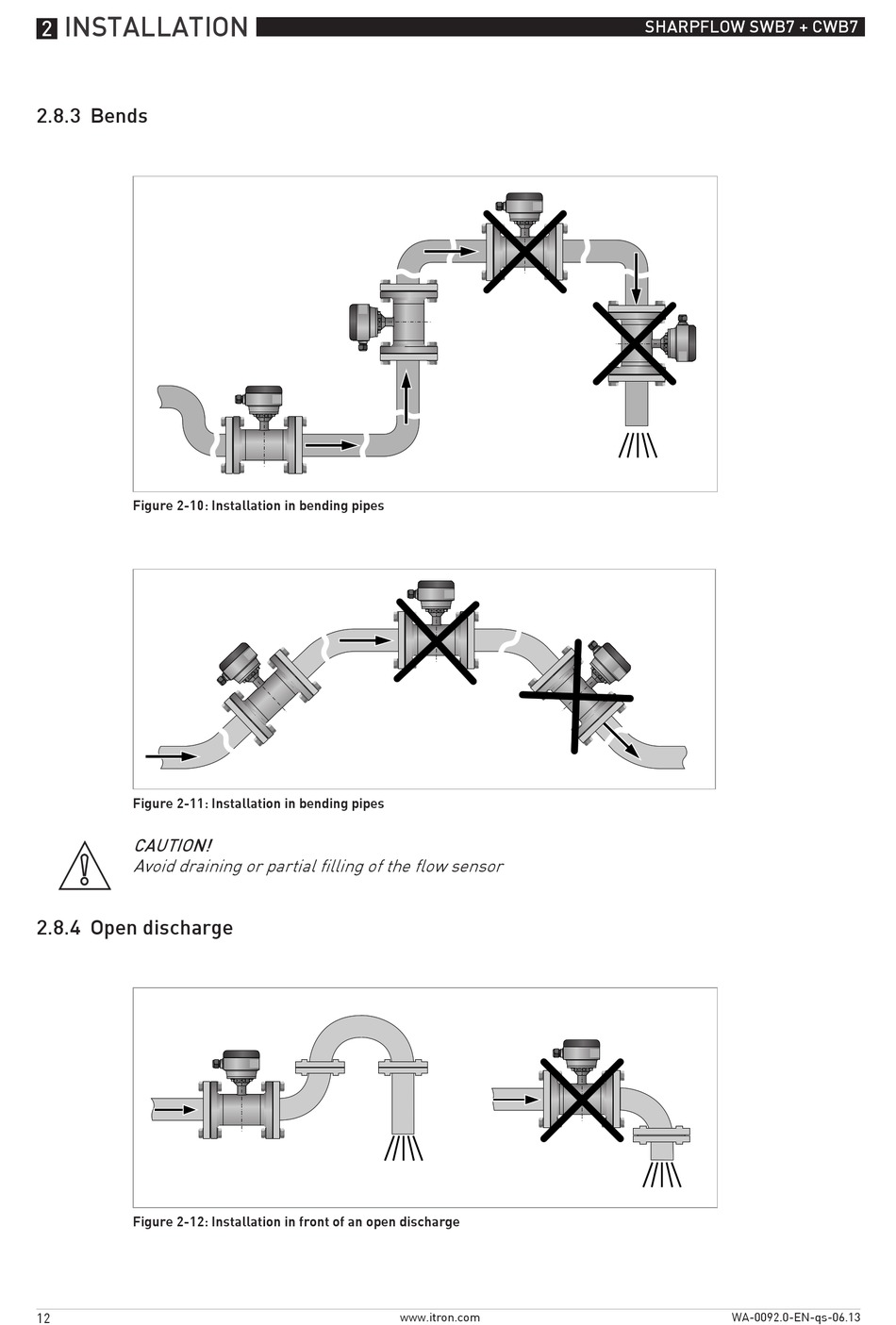

2.8.3 Bends
Figure 2-10: Installation in bending pipes
Figure 2-11: Installation in bending pipes
CAUTION!
Avoid draining or partial filling of the flow sensor
2.8.4 Open discharge
Figure 2-12: Installation in front of an open discharge
12
www.itron.com
SHARPFLOW SWB7 + CWB7
WA-0092.0-EN-qs-06.13
