- Page 1 EM512 Type700 JV1 Technical and user guide...
-
Page 2: Table Of Contents
Table of Content Table of Content ............................2 Introduction to Prepayment ........................3 Standard Transfer Specification (STS) ...................... 4 Purchasing a token ........................... 6 User Training ............................7 Understanding the front panel of the meter ................... 8 Annunciations ............................9 Meter programmable features ...................... -
Page 3: Introduction To Prepayment
Introduction to Prepayment Prepayment electricity meters enable supply authorities to collect revenue from consumers more efficiently. Consumers are obliged to pay for their electricity prior to actual consumption. This means that if a prepayment meter is installed in the house, the meter would monitor electricity consumption and compare that to the available credit purchased by the consumer. -
Page 4: Standard Transfer Specification (Sts)
STS meters STS Tokens Vending systems Itron - Vending system Vending system A Vending system B Tokens generated using this algorithm can only be used once and must be supplied by an approved authority. Tokens are meter and area specific, which means that a token can only used on one specific meter and not on any other. - Page 5 This means that tokens: Can only be accepted by the meter, which it is intended for. Cannot be modified after the tokens have been issued to the user. Token for Meter #123 Itron - vending system Meter # Meter #...
-
Page 6: Purchasing A Token
Purchasing a token The vending of prepayment electricity tokens is a one-way system in which tokens cannot be refunded upon returned. This is because once a token has been issued, the only way that the supply authority could verify if the token has been entered into the meter is to physically check the meter registry on the meter. -
Page 7: User Training
User Training Product Introduction The EM512 Type 700 JV1 (Prepayment meter Double sensor) meter was developed to expand the product portfolio of high quality Prepayment Products manufactured by Itron. The products are designed to be compatible with the standardized prepayment protocol, STS (Standard... -
Page 8: Understanding The Front Panel Of The Meter

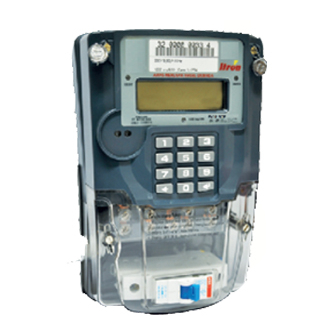

Understanding the front panel of the meter EM512 Type 700 JV1 Front Panel Display LCD EM512 Type 700 JV1 Tamper Status LED Credits Indicator LED Pulse Imp/kWh Optical probe for RDO Unique Meter Serial Number BACKSPACE Key ENTER Key Terminal Cover (Sealed) Display LCD Visually displays the credit remaining on the meter on LCD segments. -
Page 9: Annunciations
Annunciations Annunciation icons are described below. Icons Descriptions Indicate the power consumption of the users. The Bar graphic base on Power limit of meter, each bar equal to 20% of power limit. Reverse current Indicator Tamper Indicator The Icon will appear when display show remain credits and Total cumulative kWh Contactor open Indicator Number of digits token was input... -
Page 10: Meter Programmable Features
Meter programmable features The EM512 TYPE 700 JV1 product is equipped with programmable features, which can be customized to each customer’s specific needs. Audible Low Credit Warning and Credits Indicator LED When the credit available on the meter reaches the low credit threshold, the meter will signal this by change the color of Credits Indicator LED from Green to Red (Blinking). -
Page 11: Anti-Tamper Features
Tamper Switch The EM512 Type 700 JV1 assembled with a tamper switch. The switch is toggled when the terminal cover is removing from the meter base. The meters automatically record the numbers of the terminal cover opened... -
Page 12: Tampering Mode
Tampering Mode When the EM512 Type 700 JV1 in tampers Mode with display we can check what kind tamper occurred by Use the keypad and type in the following Tamper Number(SC08) Tamper Definition Notes _ _ _ _ _ _ _ 1... -
Page 13: Entering A Token
Entering a Token Once a token has been purchased from the supply authority it must be entered into the meter in order to credit the amount kWh to the meter. Please enter the token following these easy steps: Key in the 20-digit code that appears on the receipt (left to right) Verify entered numbers on LCD Use the backspace key if token is entered incorrectly After all 20 digits have been entered, press the ENTER... -
Page 14: Meter Displays
Meter displays The following images illustrate the displays given on the LCD and what they would mean to the user. There is no credit (kWh) available on the meter The credit available on the meter is 20.00kWh. There is a load connected to the meter The token entered was accepted. - Page 15 The token was either entered incorrectly or not intended for this meter and could not be decoded by the meter. The token entered has been used before and the token cannot be accepted. The meter gets error STATUS Display String on LCD ERR_READ_KEY Rec key ERR_READ_SECURE_STORE...
- Page 16 Input token Via RC-5 Remote EM512 type 700 JV1 have Infra-Red port for input the 20 digits token via Remote. The remote shall be comply with RC-5...
- Page 17 DBO Data Format Here the list data of data burst output via Optical probe: Data output are: Remaining Credit Accumulated Energy Voltage Current Power Instantaneous Power Limit Meter ID Tariff Index Trip Count due to over power Power Failure count Alarm Duration Low Limit Alarm KT-KRN...
- Page 18 <22/06/22 22:22><Meter off) <22/06/22 22:22><Earth tamper) <22/06/22 22:22><Earth tamper) <22/06/22 22:22><Earth tamper) <22/06/22 22:22><Meter off) <22/06/22 22:22><Terminal cover open) <22/06/22 22:22><Terminal cover open) <22/06/22 22:22><Meter off) <22/06/22 22:22><Meter off) <22/06/22 22:22><Meter off) <22/06/22 22:22><Earth tamper) <22/06/22 22:22><Earth tamper) <22/06/22 22:22><Earth tamper) <22/06/22 22:22><Earth tamper) <00/00/00 00:00><N/A) <00/00/00 00:00><N/A)
- Page 19 <00/00/00 00:00><00000000000000000000)(000000.00*kWh) <00/00/00 00:00><00000000000000000000)(000000.00*kWh) <00/00/00 00:00><00000000000000000000)(000000.00*kWh) <00/00/00 00:00><00000000000000000000)(000000.00*kWh) <00/00/00 00:00><00000000000000000000)(000000.00*kWh) <00/00/00 00:00><00000000000000000000)(000000.00*kWh) <00/00/00 00:00><00000000000000000000)(000000.00*kWh) <00/00/00 00:00><00000000000000000000)(000000.00*kWh) <00/00/00 00:00><00000000000000000000)(000000.00*kWh) <00/00/00 00:00><00000000000000000000)(000000.00*kWh) <00/00/00 00:00><00000000000000000000)(000000.00*kWh) <00/00/00 00:00><00000000000000000000)(000000.00*kWh) <00/00/00 00:00><00000000000000000000)(000000.00*kWh) <00/00/00 00:00><00000000000000000000)(000000.00*kWh) <00/00/00 00:00><00000000000000000000)(000000.00*kWh)
-
Page 20: Cleaning The Meter
CLEANING THE METER To clean any meter within the EM512 TYPE 700 JV1 product range it is best advised to use a soft cloth damped with methanol. Wipe cloth gently across cover of meter. This should be repeated until the meter cover has been cleaned. -
Page 21: Meter Support Training
Future positioning of e.g. kitchen cupboards in a newly constructed home should be kept in mind General accessibility is important Meter Handling The EM512 TYPE 700 JV1 product range has been tested extensively to verify its toughness to external factors. Please avoid the following actions: Do not drop meter during installation;... -
Page 22: Installation
EM512 TYPE 700 DO NOT use countersunk screws. If the wall is uneven, rather mount the EM512 TYPE 700 JV1 meter on a wooden or metal plate. Make sure that the unit is firm and not warped. Do not over tighten screws. - Page 23 Final Inspection Please ensure that the following instructions are covered: Check that the meter is properly secured to the wall Make sure that it is not warped Double-check that the incoming supply is connected to the incoming supply terminals Ensure again that the outgoing load wires are connected to the load terminals Double-check that all electrical terminal screws are tight, and that the electrical connections are secure and neat Ensure that the inside of the base is clean and dry...
-
Page 24: Short Codes And Descriptions
Short Codes and Descriptions The following short codes are available for EM512 Type 700 JV1 Short Description Code Test All Trip test Test LCD display and buzzer Total kWh Display KT & KRN Display Tariff Index Display power limit Display tamper status... -
Page 25: Technical Specifications
Technical Specifications Meter Type Prepaymnet Single Phase meter IEC 62055-31: 2005-09, Electricity metering – Payment sistems – Part 31: Particular requirements – Static payment meters for active energy (classes 1 and 2) IEC 62055-41: 2007-05, Electricity metering – Payment sistem – Part 41: Standard transfer specification (STS) –...
Need help?
Do you have a question about the EM512 TYPE 700 JV1 and is the answer not in the manual?
Questions and answers

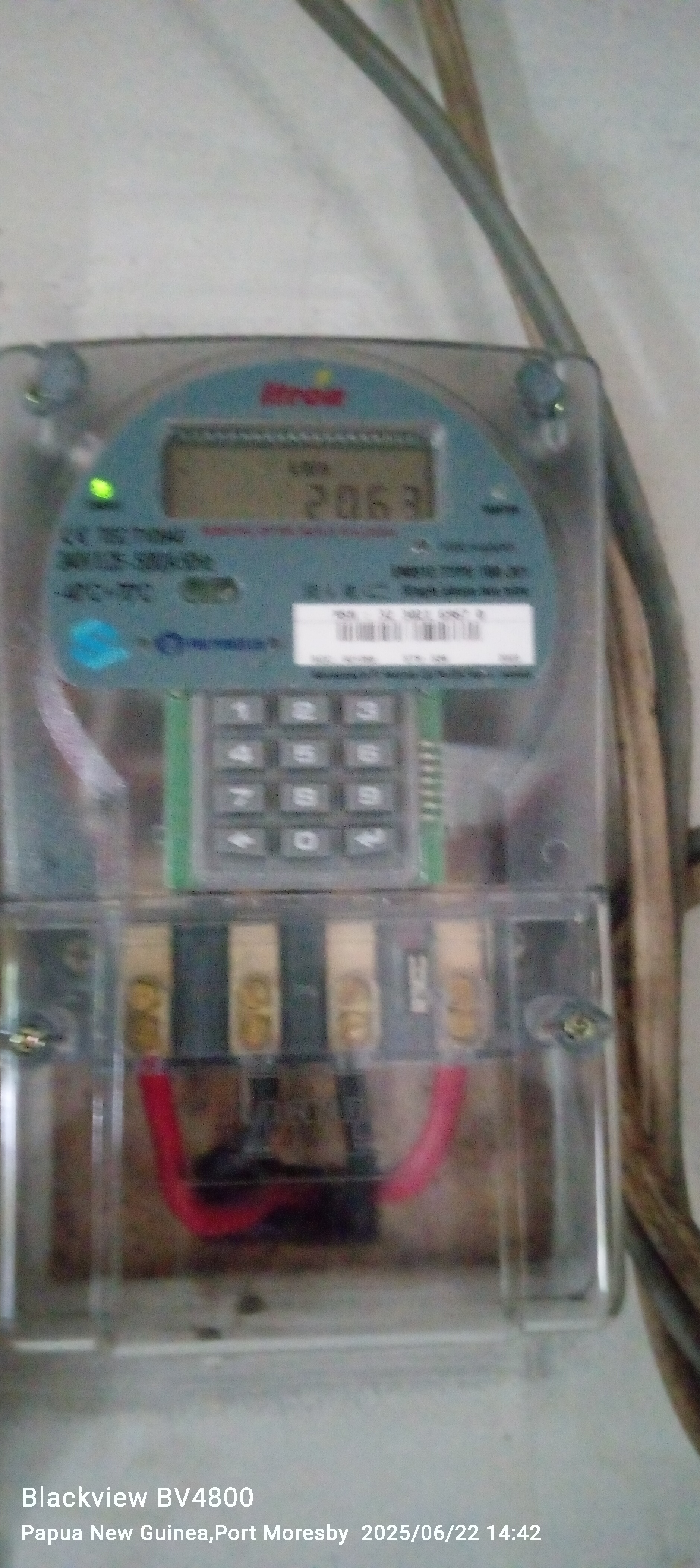

hi good afternoon . i foun on my EM512 700 jv1 it is coming on and of in split secound and this sign appear on the LED screen......ju-1 can you explan and provide code for me to cancle this ju-1 please
