DATTUS III Meter Maintenance Overview
The DATTUS meter requires very little routine maintenance. Generally, only periodic battery
replacements are necessary. The meter has 2 D-cell lithium battery packs. The three-cell battery pack
powers the DATTUS III electronics. The four-cell battery pack powers the DATTUS III sensors.
DATTUS III Battery Replacement Guidelines
When a battery alarm occurs, replace DATTUS III meter battery pack.

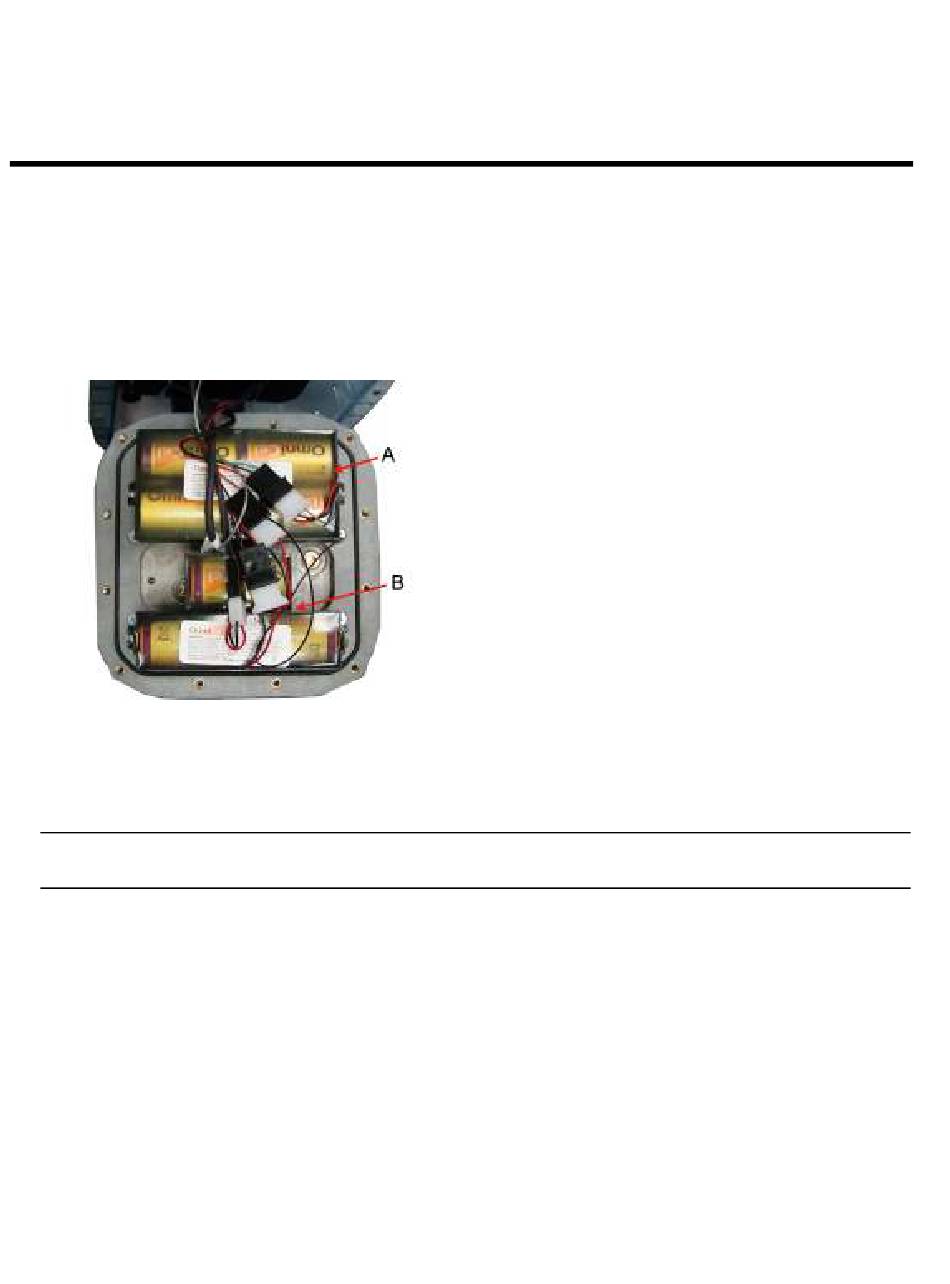

A. Sensor battery pack
B. Electronics battery pack
To change batteries in the DATTUS meter
Note These instructions show electronics battery pack replacement. Follow this procedure to replace the
sensor battery pack.
1. Remove the two security seals.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ITRON DATTUS III
Summary of Contents for ITRON DATTUS III
- Page 1 The DATTUS meter requires very little routine maintenance. Generally, only periodic battery replacements are necessary. The meter has 2 D-cell lithium battery packs. The three-cell battery pack powers the DATTUS III electronics. The four-cell battery pack powers the DATTUS III sensors. DATTUS III Battery Replacement Guidelines When a battery alarm occurs, replace DATTUS III meter battery pack.
- Page 2 2. Push a flat-edge screwdriver into the security seal to break the seal. 3. Gently pry the broken seal out of the security seal cup. 4. Remove the protective cover mounting screws. 5. Carefully place the protective cover along the top meter edge.
- Page 3 6. Remove the screws holding the battery pack in place. 7. Unplug the battery cable connectors. 8. Remove the old battery pack. 9. Place the new battery pack in the same orientation as the original battery pack. 10. Reconnect the battery cable connectors. 11.
