Modem Reset
The Modem Reset signal, MRESET, is used to reset an optional socket
modem. This signal is controlled by bit 5 in the register shown in Table 9.
The MRESET signal is available at the embedded modem socket inter-
face (J9, Pin1). Setting this bit Low places the optional socket modem
into a reset state. The user must pull this bit High again to enable the
socket modem. Reference the appropriate documentation for the socket
modem to reset timing requirements.

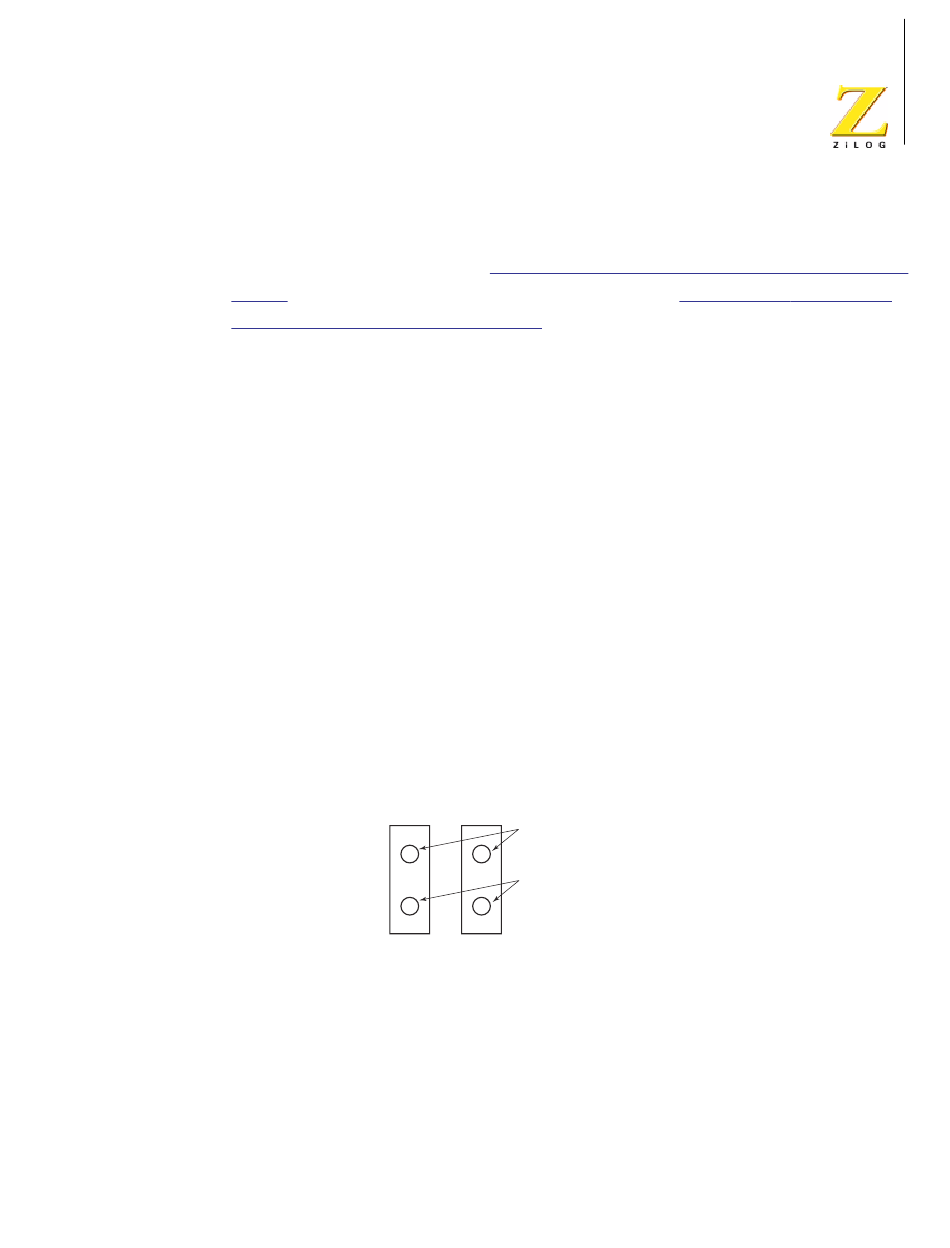

User Triggers
®
Two general-purpose trigger output pins are provided on the eZ80
Development Platform. Labeled J21 (Trig2) and J22 (Trig1), these pins
allow the user a way to trigger external equipment to aid in the debug of
the system. See Figure 8 for trigger pin details.
J21 J22
Ground
Trigger output
Trig2 Trig1

Figure 8. Trigger Pins J21 and J22

Bits 6 and 7 in Table 9 are the control bits for the user triggers. If either
bit is a 1, the corresponding Trig1 and Trig2 signals are driven High. If
either bit is 0, the corresponding Trig1 and Trig2 signals are driven Low.
