UG-1615

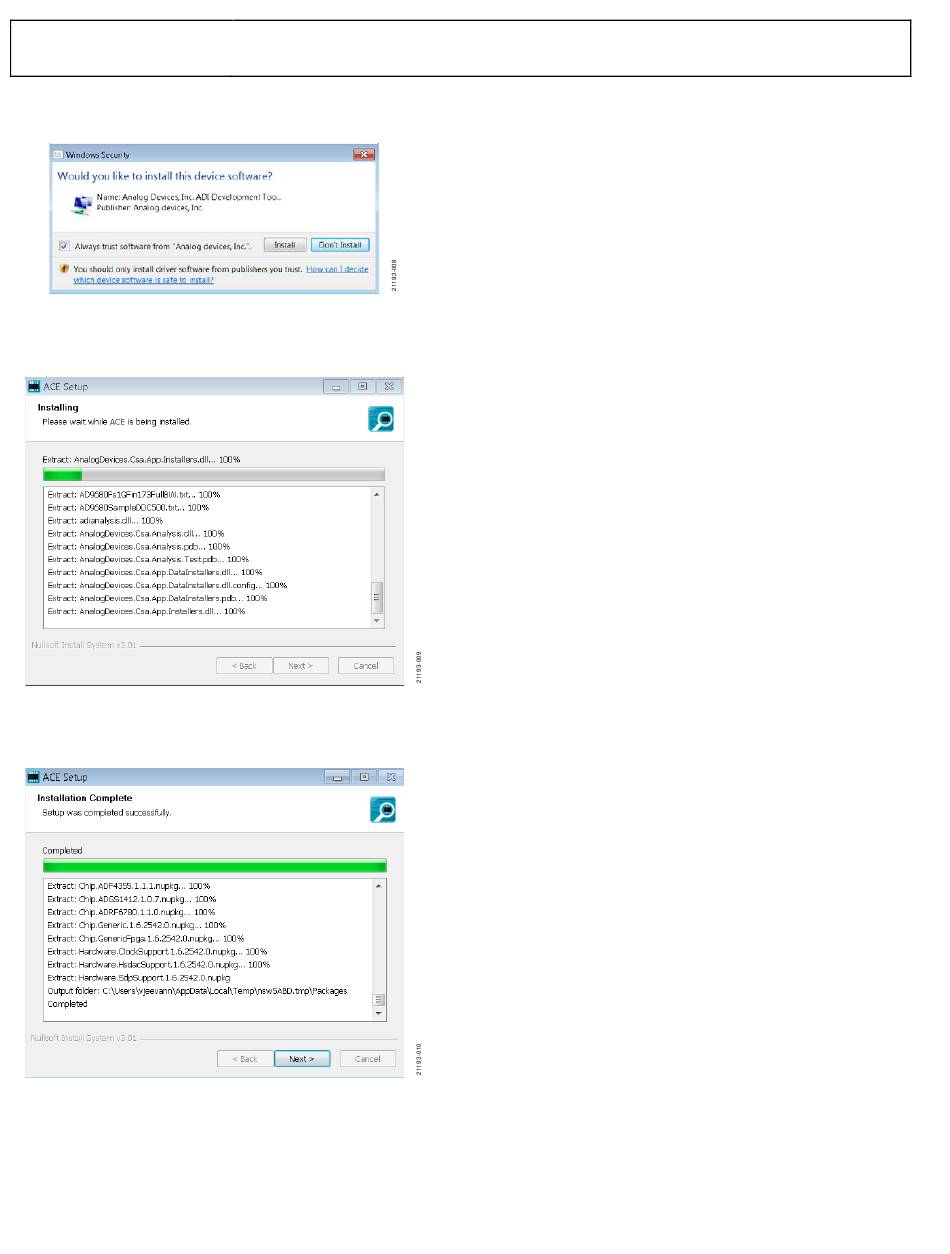

8. The Windows Security window then appears. Click
Install.
Figure 8. Windows Security Window
9. The installation is now in progress, and no action is
required.
Figure 9. Installation in Progress
10. The Installation Complete window then appears. Click
Next > and Finish to complete the installation.
Figure 10. Installation Complete

EVALUATION BOARD SETUP PROCEDURES

The EVAL-AD7386FMCZ connects to the EVAL-SDP-CH1Z.
The EVAL-SDP-CH1Z
communication link between the PC and the EVAL-
AD7386FMCZ. Figure 2 shows a diagram of the connections
between the EVAL-AD7386FMCZ evaluation board and the
EVAL-SDP-CH1Z.
After following the instructions in the Software Installation
Procedures section, set up the EVAL-AD7386FMCZ and the
EVAL-SDP-CH1Z
AD7386FMCZ and EVAL-SDP-CH1Z to a PC section.
The evaluation software and drivers must be installed before
connecting the EVAL-AD7386FMCZ and
the USB port of the PC. Installing the software and drivers prior
to connection ensures that the evaluation system is correctly
recognized when the system is connected to the PC.
Connecting the EVAL-AD7386FMCZ and
to a PC
Take the following steps to connect the EVAL-AD7386FMCZ
and EVAL-SDP-CH1Z
1. Ensure that all configuration links are in the appropriate
positions (see Table 2).
2. Connect the EVAL-AD7386FMCZ board securely to the
160-way connector on the EVAL-SDP-CH1Z.
3. Connect the
USB cable enclosed in the
Note that the EVAL-AD7386FMCZ board does not require an
external power supply adapter.
Rev. A | Page 8 of 21
EVAL-AD7386FMCZ
is the controller board, which is the
as detailed in the Connecting the EVAL-
EVAL-SDP-CH1Z
to a PC:
EVAL-SDP-CH1Z board to the PC via the
EVAL-SDP-CH1Z
User Guide
to
EVAL-SDP-CH1Z
kit.
