Evaluation Board Software; Software Installation Procedures - Analog Devices EVAL-AD7386FMCZ User Manual

EVAL-AD7386FMCZ

EVALUATION BOARD SOFTWARE

SOFTWARE INSTALLATION PROCEDURES

Download the ACE evaluation software from the
AD7386FMCZ product page and install this software on a PC
before using the EVAL-AD7386FMCZ evaluation board.
Take the following two steps to complete the installation
process:
1. Install the ACE evaluation software
2. Install the EVAL-SDP-CH1Z
Warning
The evaluation board software and drivers must be installed before
connecting the EVAL-AD7386FMCZ and the
to the USB port of the PC to ensure that the evaluation system is
correctly recognized when the system is connected to the PC.
Installing the ACE Evaluation Software
To install the ACE evaluation software,
1. Download the ACE evaluation software to a Windows-
based PC.
2. Double-click the ACEInstall.exe file to begin the
installation. By default, the software is saved to the
following location: C:\Program Files (x86)\Analog
Devices\ACE.
3. A dialog box appears asking for permission to allow the
program to make changes to the PC. Click Yes to begin the
installation process.
4. Click Next > to continue the installation, as shown in
Figure 4.

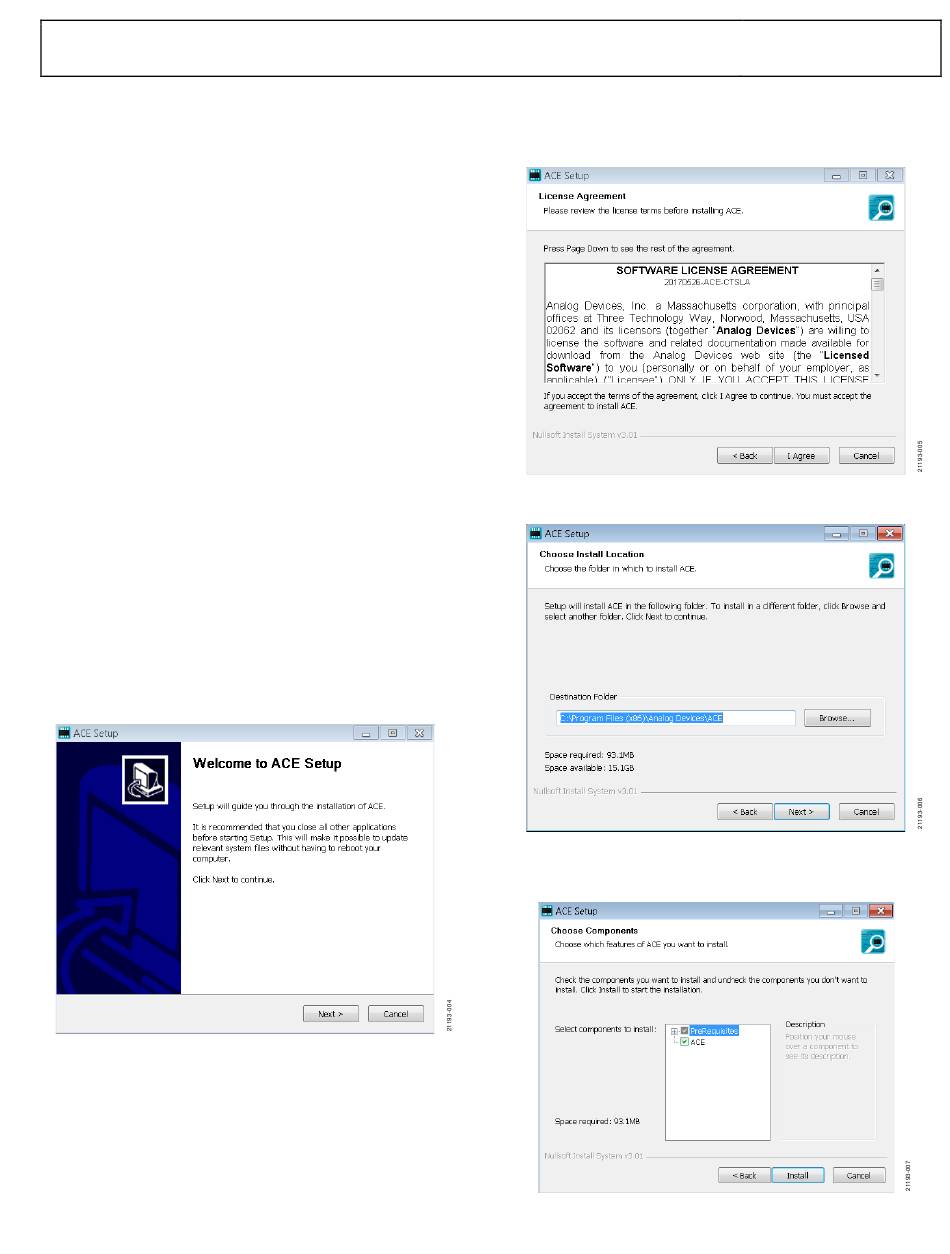

Figure 4. Evaluation Software Install Confirmation
User Guide
EVAL-
driver
EVAL-SDP-CH1Z
5. The license agreement then pops up. Read the license and
click I Agree.
6. Then, choose the installation location and click Next >.
7. The components to install are preselected. Therefore, click
Install.
Rev. A | Page 7 of 21
Figure 5. License Agreement
Figure 6. Choose Install Location
Figure 7. Choose Components
UG-1615
