EVALUATION SOFTWARE OPERATION

LAUNCHING THE SOFTWARE

After the EVAL-AD7386FMCZ and
are correctly connected to the PC, launch the
software as follows:
1. From the Start menu, select All Programs > Analog
Devices > ACE > ACE.exe, which opens the window
shown in Figure 12.
2. If the EVAL-AD7386FMCZ evaluation board is not connected
to the USB port via the EVAL-SDP-CH1Z
is launched, the AD7386 Eval Board icon does not show up
in the Attached Hardware section. Connect the EVAL-
AD7386FMCZ and EVAL-SDP-CH1Z
the PC and wait a few seconds. Then, follow the instructions.
Double-click the AD7386 Eval Board icon to view the
board view (see Figure 13).
3. Double-click the AD7386 chip icon to open the chip view
window (see Figure 14).
4. Click Software Defaults and then click Apply Changes.
EVAL-SDP-CH1Z boards
ACE evaluation
when the software
to the USB port of

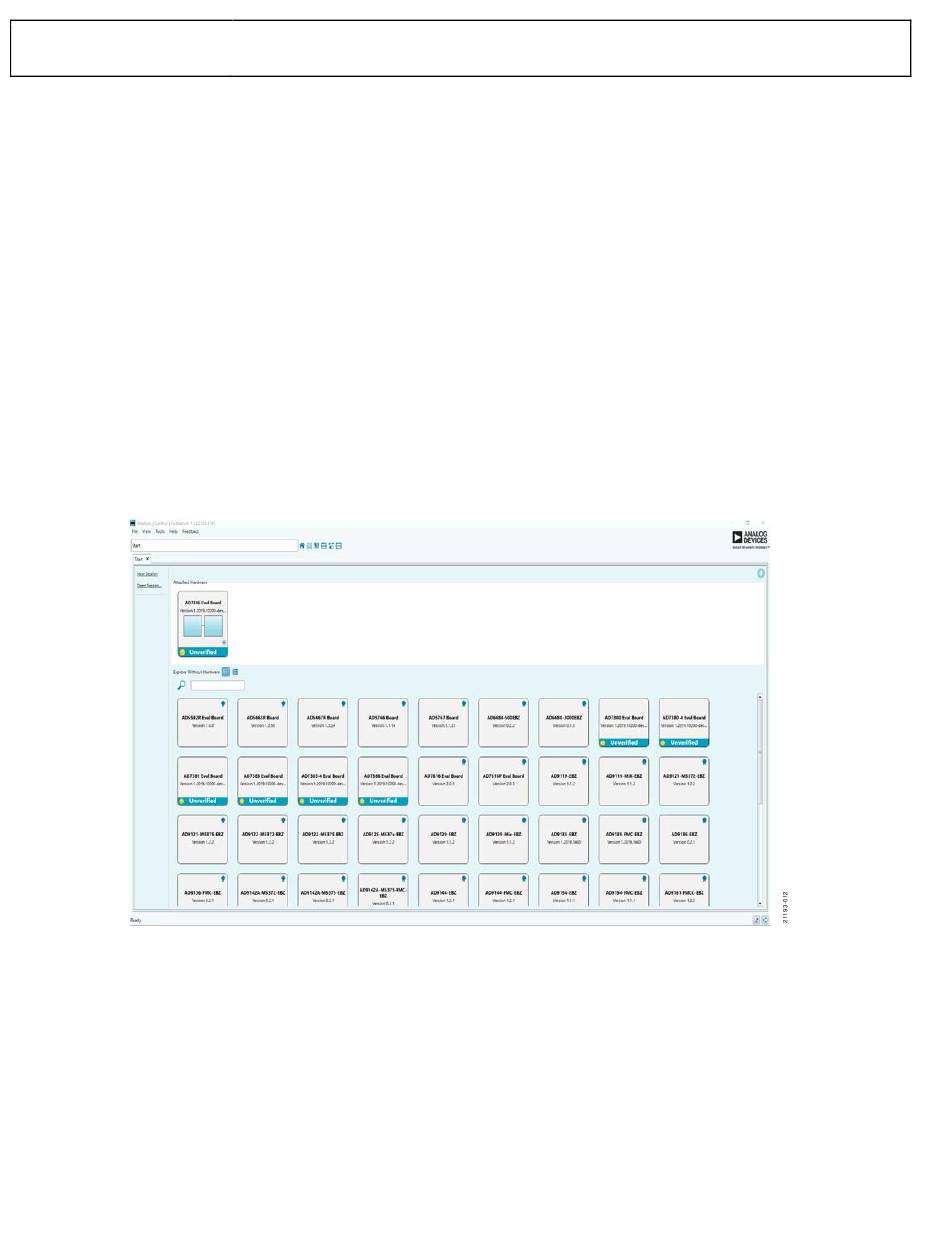

Figure 12. ACE Evaluation Software Main Window
Rev. A | Page 10 of 21
EVAL-AD7386FMCZ

DESCRIPTION OF CHIP VIEW

After completing the steps in the Software Installation Procedures
section and the Evaluation Board Setup Procedures section, set
up the system for data capture as follows:
1. Block icons that are dark blue are programmable blocks.
Click a dark blue block icon to open a configurable pop-up
window that allows customization for data capture, as
shown in the Over Sampling block in Figure 16.
2. Type the value of the reference voltage in the Reference
Voltage box when External Reference is selected (click the
REF block in Figure 15 to access this option). The default
value for the external reference is set to 3.3 V and 2.5 V for
the internal reference.
