EVAL-AD7386FMCZ
Verifying the Board Connection
Take the following steps to verify the board connection:
1. Allow the Found New Hardware Wizard to run after the
EVAL-SDP-CH1Z board is plugged into the PC. If using
Windows XP, search for the
Choose to automatically search for the drivers for the
EVAL-SDP-CH1Z board if prompted by the operating
system.
2. Ensure that the EVAL-AD7386FMZ evaluation board is
connected to the PC correctly by using the Device
Manager window. A dialog box may appear asking for
permission to allow the program to make changes to the
computer. Click Yes. The Computer Management window
will appear. From the System Tools list, click Device
Manager.
3. If the EVAL-SDP-CH1Z
the EVAL-SDP-CH1Z board is connected to the PC
correctly, Analog Devices SDP-H1 appears nested under
the ADI Development Tools in the Device Manager
window, as shown in Figure 11.

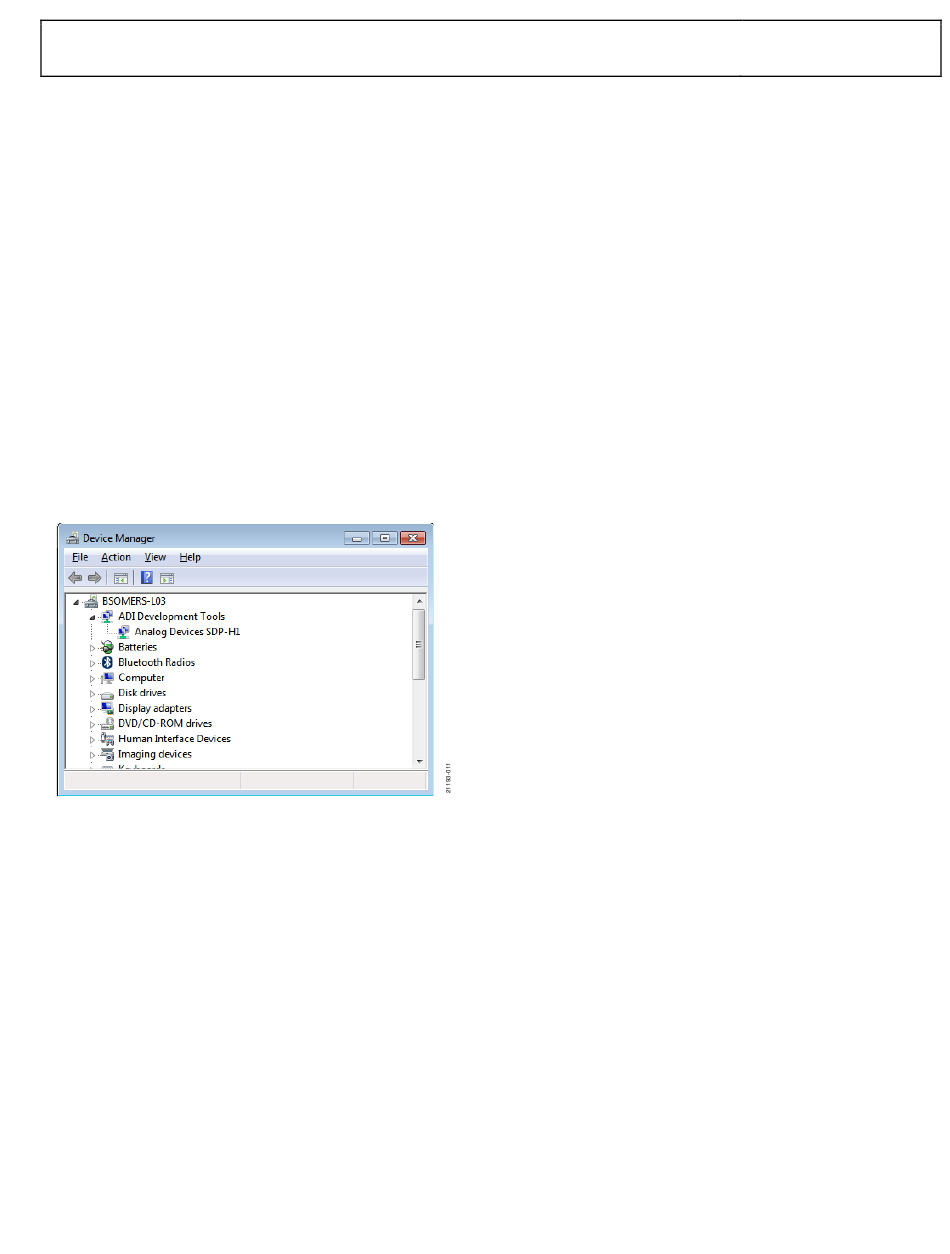

Figure 11. Device Manager Window
User Guide
EVAL-SDP-CH1Z drivers.
driver software is installed, and
Disconnecting the EVAL-AD7386FMCZ
Before removing the EVAL-AD7386FMCZ evaluation board,
always remove power from the
reset tact switch on the EVAL-SDP-CH1Z, located alongside the
mini USB port.
Rev. A | Page 9 of 21
UG-1615
EVAL-SDP-CH1Z or push the
