DESCRIPTION OF CHIP VIEW WINDOW

Click the AD7386 chip icon in the board view to open the
window shown in Figure 14. The chip view shows the
configurable block diagram of the AD7386.

CHANNEL SELECTION

Click the multiplexer icons circled in red (see Figure 15) to
select the ADC channel pairs for conversion (A
A 1/A 1).
INA INB

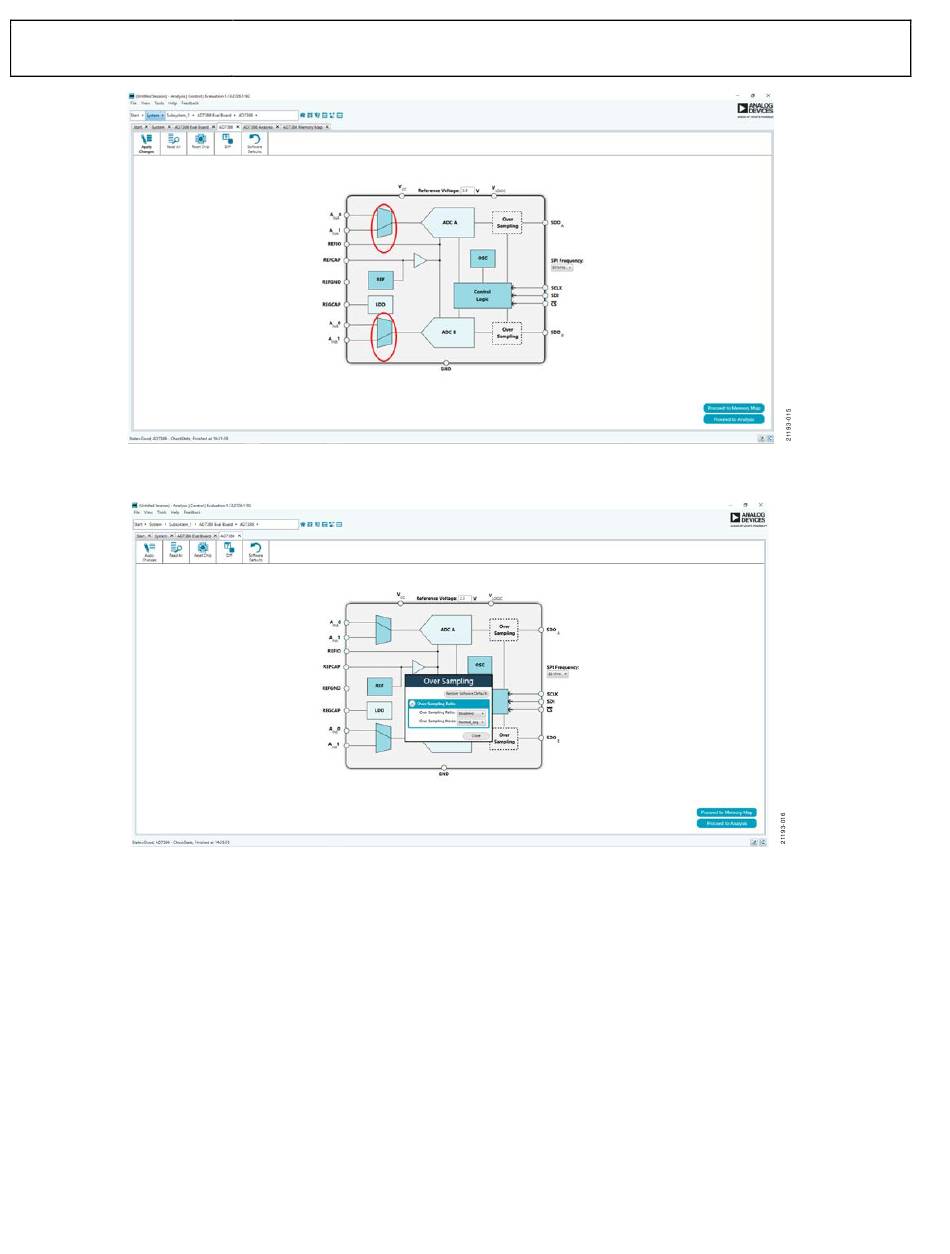

Figure 15. Channel Selection View
Figure 16. Over Sampling Pop-Up Configurable Window
0/A 0 and
INA INB
Rev. A | Page 12 of 21
EVAL-AD7386FMCZ

OVERSAMPLING

The AD7386 offers an oversampling function on chip and has
two user configurable oversampling modes, normal average and
rolling average. Click the OSC block to configure the
oversampling ratio.

REFERENCE

Click the REF block to select from an internal 2.5 V or external
reference source for the ADC. An externally supplied reference
can be in the 2.5 V to 3.3 V range.
