SERIAL MODE

The AD7386 offers an option to have a 1-wire or a 2-wire
configuration for serial communication. Click the Control
Logic block to configure this option.
Serial 2-Wire Mode
Configure 2-wire mode by setting the SDO bit in the
CONFIGURATION2 register (Address 0x02) to 0. In 2-wire
mode, the conversion result for ADC A is output on the SDOA
pin, and the conversion result for ADC B is output on the
SDOB/ ALERT pin.
Serial 1-Wire Mode
In applications where slower throughput rates are allowed, or
normal average oversampling is used, the serial interface can
operate in 1-wire mode. In 1-wire mode, the conversion results
from ADC A and ADC B are output on the serial output,
SDOA. Additional SCLK cycles are required to propagate all
data. ADC A data is output first, followed by ADC B conversion
results.

DESCRIPTION OF MEMORY MAP WINDOW

Click Proceed to Memory Map in the bottom right corner of
the chip view window to open the window shown in Figure 17.
The memory map shows all registers of the AD7386.
User Guide

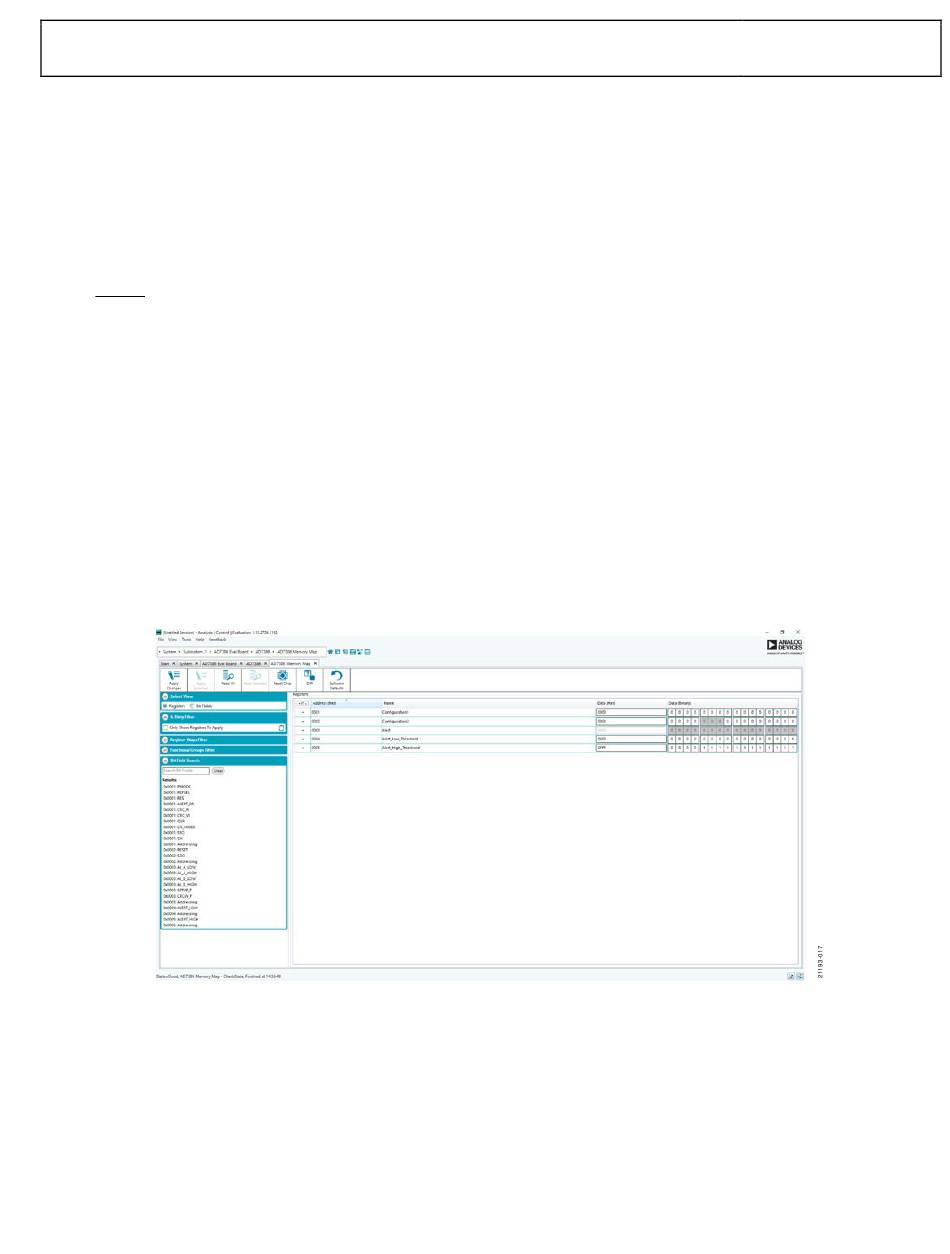

Figure 17. Memory Map View
Apply Changes
The registers are populated with default values when powered
up. To implement the values changed in all the registers, click
Apply Changes to write to the registers.
Apply Selected
To implement changes on a selected register when the values of
a register are changed, click Apply Selected to write the new
value on the selected register to the AD7386.
Read All
Click Read All to read the values of all the registers from the
chip.
Read Selected
Click Read Selected to read the selected register from the chip.
Reset Chip
Click Reset Chip to prompt the software to reset the AD7386.
Diff
Click Diff to check for differences in register values between the
software and the chip.
Software Defaults
To revert all the register values to their defaults, click Software
Defaults and then Apply Changes to write to the AD7386.
