EVAL-AD7386FMCZ
Waveform Results
Waveform Results displays amplitude, sample frequency, and
noise analysis data for the selected channels.
Export Capture Data
Click Export to export the captured data. The waveform,
histogram, and FFT data are stored in .xml files along with the
values of parameters at capture.
Waveform Graph
The data Waveform graph shows each successive sample of the
ADC output. The user can zoom and pan the waveform using
the embedded waveform tools. The channels to display can be
selected in the Display Channels section.
Display Units and Axis Controls
Click the display units dropdown list to select whether the data
graph displays in units of hexadecimal, volts, or codes. The axis
controls are dynamic.
User Guide

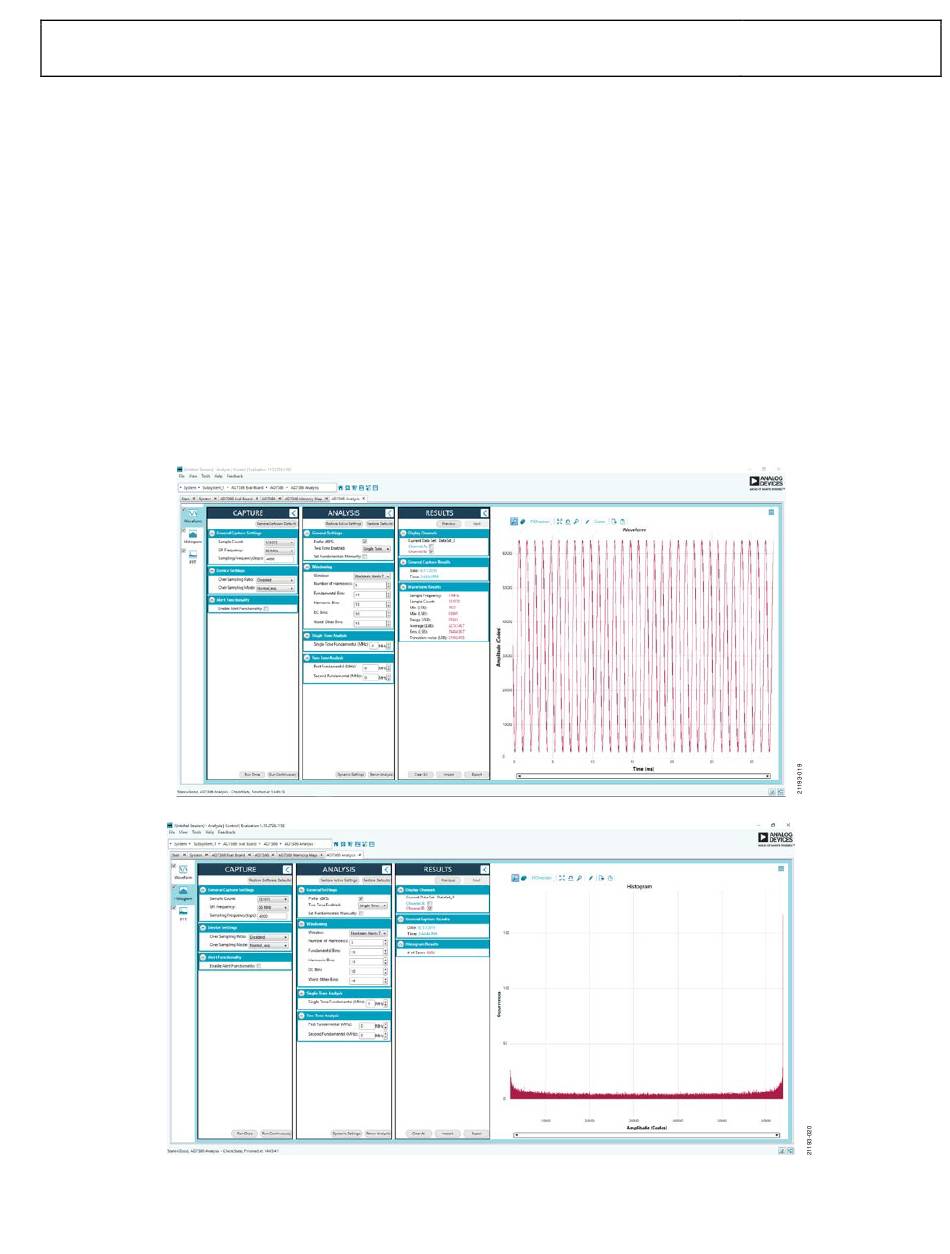

Figure 19. Waveform Tab
Figure 20. Histogram Tab
When selecting either y-scale dynamic or x-scale dynamic, the
corresponding axis width automatically adjusts to show the
entire range of the ADC results after each batch of samples.
Histogram Tab
The Histogram tab contains the histogram graph and the
results pane, as shown in Figure 20.
RESULTS Pane
The RESULTS pane displays the information related to the dc
performance.
Histogram Graph
The histogram graph displays the number of hits per code within
the sampled data. This graph is useful for dc analysis and indicates
the noise performance of the device.
Rev. A | Page 15 of 21
UG-1615
