One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the
AD7386
FEATURES
Full featured evaluation board multichannel, simultaneous
sampling ADC
On-board reference, reference buffer, and ADC driver
On-board power supplies
Board-compatible high speed system demonstration
platform
(EVAL-SDP-CH1Z
PC software for control and data analysis
EVALUATION KIT CONTENTS
EVAL-AD7386FMCZ evaluation board
Instructions to download software
ADDITIONAL EQUIPMENT NEEDED
EVAL-SDP-CH1Z
Signal source
PC running Windows XP SP3, Windows Vista, Windows 7, or
Windows 10 with a USB port
ONLINE RESOURCES
AD7386
data sheet
ACE evaluation software
AD738x ACE plugin
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
4-Channel 16-Bit, Dual Simultaneous Sampling, SAR ADC
(SDP-H1)) controller
EVALUATION BOARD CONNECTION DIAGRAM
SIGNAL GENERATOR
ANALOG FILTER

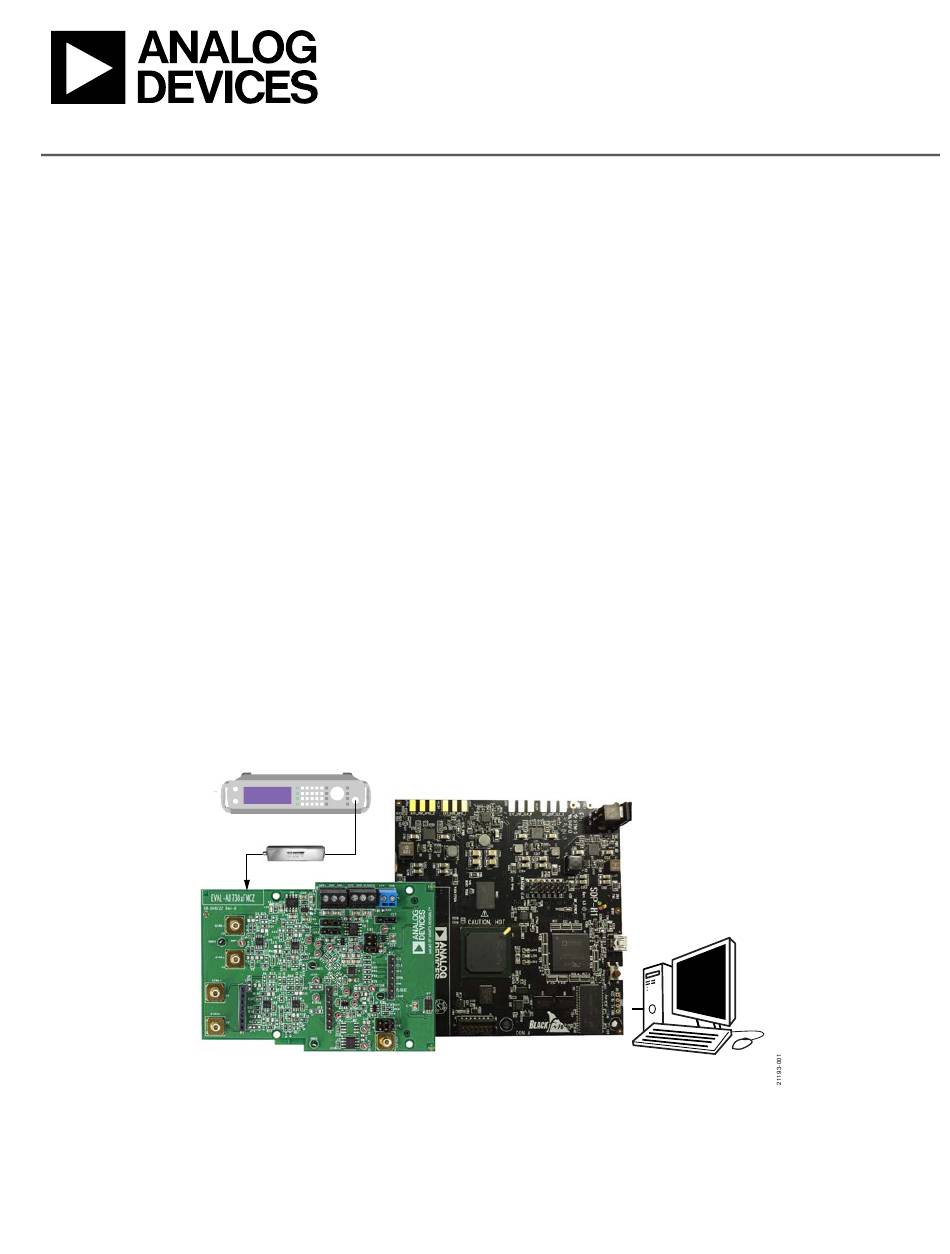

Figure 1. Typical Setup of the EVAL-AD7386FMCZ (Left) and the
EVAL-AD7386FMCZ
GENERAL DESCRIPTION
The EVAL-AD7386FMCZ is a full featured evaluation board
designed to evaluate all the features of the
digital converter (ADC). The evaluation board can be controlled by
the
EVAL-SDP-CH1Z
platform connector, P7. The
the evaluation board through the USB port of the PC using the
Analysis Control Evaluation (ACE) software, which is available
for download from the
The EVAL-AD7386FMCZ can evaluate the
AD7388
by using the
AD7386FMCZ
of SCLKs that clock out the conversion results, which is dependent
on the resolution for each generic.
Complete specifications for the
provided in the
these specifications in conjunction with this user guide when
using the evaluation board. Full details on the
are available on the
ACE user guide is available on the
Figure 1 shows the typical setup of the EVAL-AD7386FMCZ.
EVAL-SDP-CH1Z
Rev. A | Page 1 of 21
User Guide
AD7386
via the 160-way system demonstration
EVAL-SDP-CH1Z
ACE
software page.
AD738x ACE plugin
found on the
product page. The only difference is the number
AD7386/AD7387/AD7388
AD7386/AD7387/AD7388
data sheet. Consult
SDP-H1
product page. The comprehensive
ACE
software page.
PC RUNNING EVALUATION
BOARD SOFTWARE
(Right)
UG-1615
analog-to-
board controls
AD7387
and
EVAL-
are
EVAL-SDP-CH1Z
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL-AD7386FMCZ
Summary of Contents for Analog Devices EVAL-AD7386FMCZ
-
Page 1: Features
EVALUATION BOARD CONNECTION DIAGRAM SIGNAL GENERATOR ANALOG FILTER PC RUNNING EVALUATION BOARD SOFTWARE Figure 1. Typical Setup of the EVAL-AD7386FMCZ (Left) and the EVAL-SDP-CH1Z (Right) PLEASE SEE THE LAST PAGE FOR AN IMPORTANT Rev. A | Page 1 of 21... -
Page 2: Table Of Contents
UG-1615 EVAL-AD7386FMCZ User Guide TABLE OF CONTENTS Features ....................1 Evaluation Board Setup Procedures ...........8 Evaluation Kit Contents ..............1 Evaluation Software Operation ............ 10 Additional Equipment Needed ............1 Launching the Software ............. 10 Online Resources ................1 Description of Chip View............10 General Description ................. -
Page 3: Quick Start Guide
Ensure that the link options are configured as detailed in B1 channel. Table 2. Connect the EVAL-SDP-CH1Z board to the EVAL- AD7386FMCZ, as shown in Figure 2. Figure 2. EVAL-AD7386FMCZ Evaluation Board (Left) Connected to the EVAL-SDP-CH1Z Board (Right) Rev. A | Page 3 of 21... -
Page 4: Evaluation Board Hardware
AD7386 can accept a wide common-mode input voltage EVAL-AD7386FMCZ. See Table 2 for the complete list of link and is sampled and converted on the falling edge of CS . options. -
Page 5: Link Configuration Options
Multiple link options must be set correctly to select the appropriate operating mode before applying power and signals to the operating setup before using the EVAL-AD7386FMCZ. The evaluation boards. Table 2 shows the default positions of the functions of these options are detailed in Table 2. -
Page 6: Evaluation Board Circuitry
Table 3. the EVAL-AD7386FMCZ. These test points provide easy access to the signals from the evaluation board for probing, evaluation, The default interface to the EVAL-AD7386FMCZ is via the 160- and debugging. way connector, which connects the EVAL-AD7386FMCZ to the EVAL-SDP-CH1Z. -
Page 7: Evaluation Board Software
I Agree. Download the evaluation software from the EVAL- AD7386FMCZ product page and install this software on a PC before using the EVAL-AD7386FMCZ evaluation board. Take the following two steps to complete the installation process: Install the evaluation software Install the... -
Page 8: Evaluation Board Setup Procedures
PC via the USB cable enclosed in the EVAL-SDP-CH1Z kit. Note that the EVAL-AD7386FMCZ board does not require an Figure 9. Installation in Progress external power supply adapter. 10. The Installation Complete window then appears. Click Next > and Finish to complete the installation. - Page 9 UG-1615 Verifying the Board Connection Disconnecting the EVAL-AD7386FMCZ Take the following steps to verify the board connection: Before removing the EVAL-AD7386FMCZ evaluation board, always remove power from the EVAL-SDP-CH1Z or push the Allow the Found New Hardware Wizard to run after the...
-
Page 10: Evaluation Software Operation
Click a dark blue block icon to open a configurable pop-up shown in Figure 12. window that allows customization for data capture, as If the EVAL-AD7386FMCZ evaluation board is not connected shown in the Over Sampling block in Figure 16. to the USB port via the... - Page 11 EVAL-AD7386FMCZ User Guide UG-1615 Figure 13. Board View Figure 14. Chip View Rev. A | Page 11 of 21...
-
Page 12: Description Of Chip View Window
UG-1615 EVAL-AD7386FMCZ User Guide Figure 15. Channel Selection View Figure 16. Over Sampling Pop-Up Configurable Window OVERSAMPLING DESCRIPTION OF CHIP VIEW WINDOW AD7386 offers an oversampling function on chip and has Click the AD7386 chip icon in the board view to open the two user configurable oversampling modes, normal average and window shown in Figure 14. -
Page 13: Serial Mode
EVAL-AD7386FMCZ User Guide UG-1615 SERIAL MODE Apply Changes The registers are populated with default values when powered AD7386 offers an option to have a 1-wire or a 2-wire up. To implement the values changed in all the registers, click configuration for serial communication. Click the Control Apply Changes to write to the registers. -
Page 14: Description Of Analysis Window
UG-1615 EVAL-AD7386FMCZ User Guide DESCRIPTION OF ANALYSIS WINDOW Device Settings The Over Sampling Ratio box includes options to disable the Click Proceed to Analysis in the chip view to open the window oversampling ratio function (Disabled) or to set the oversampling shown in Figure 18. - Page 15 EVAL-AD7386FMCZ User Guide UG-1615 Waveform Results When selecting either y-scale dynamic or x-scale dynamic, the corresponding axis width automatically adjusts to show the Waveform Results displays amplitude, sample frequency, and entire range of the ADC results after each batch of samples.
-
Page 16: Exiting The Software
UG-1615 EVAL-AD7386FMCZ User Guide FFT Tab RESULTS Pane Figure 21 shows the FFT tab, which displays fast Fourier transform Signal (FFT) information for the last batch of samples gathered. Signal displays the sample frequency, fundamental frequency, ANALYSIS Pane and fundamental power. -
Page 17: Evaluation Board Schematics And Artwork
EVAL-AD7386FMCZ User Guide UG-1615 EVALUATION BOARD SCHEMATICS AND ARTWORK Figure 22. ADC Evaluation Board, ADC Drivers and ADC Rev. A | Page 17 of 21... - Page 18 UG-1615 EVAL-AD7386FMCZ User Guide Figure 23. ADC Evaluation Board, Common-Mode and Reference Buffers Rev. A | Page 18 of 21...
- Page 19 EVAL-AD7386FMCZ User Guide UG-1615 M20-9990345 SCLK_R SCLK +12V SDOC AMP+ SDOD ADP7104ARDZ-5.0 SDP_+12V +12V VOUT AMP_PWR+ SENSE/ADJ EXT_AMP_PWR+ EN/UVLO M20-9990345 C_PG 25.195.0253.0 10UF AVIN PMEG2005AEL,315 ADP5075ACBZ –5V PVIN 2.2UF VREG VREG SLEW SDP_VADJ SDP_VADJ SYNC/FREQ VREF VREG 2.2UF ASP-134604-01 ASP-134604-01 AMP–...
-
Page 20: Ordering Information
UG-1615 EVAL-AD7386FMCZ User Guide ORDERING INFORMATION BILL OF MATERIALS Table 4. Bill of Materials Reference Designator Description Manufacturer Part Number Single-ended input, dual, simultaneous Analog Devices AD7386 sampling 16-bit successive approximation register (SAR) ADC Very low quiescent current, 150 mA, low... - Page 21 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
