Device: Hdd & Ptz - KGuard Security Easy Link PLUS Series User Manual

Configure here the internal HDD that the DVR uses for saving the recordings. You need to format the HDD only at the first startup and if you replace the HDD.
This menu is for configuring the PTZ (Pan-Tilt-Zoom) settings for the dome camera. This feature is not supported.
Easy Link PLUS Series DVR
28

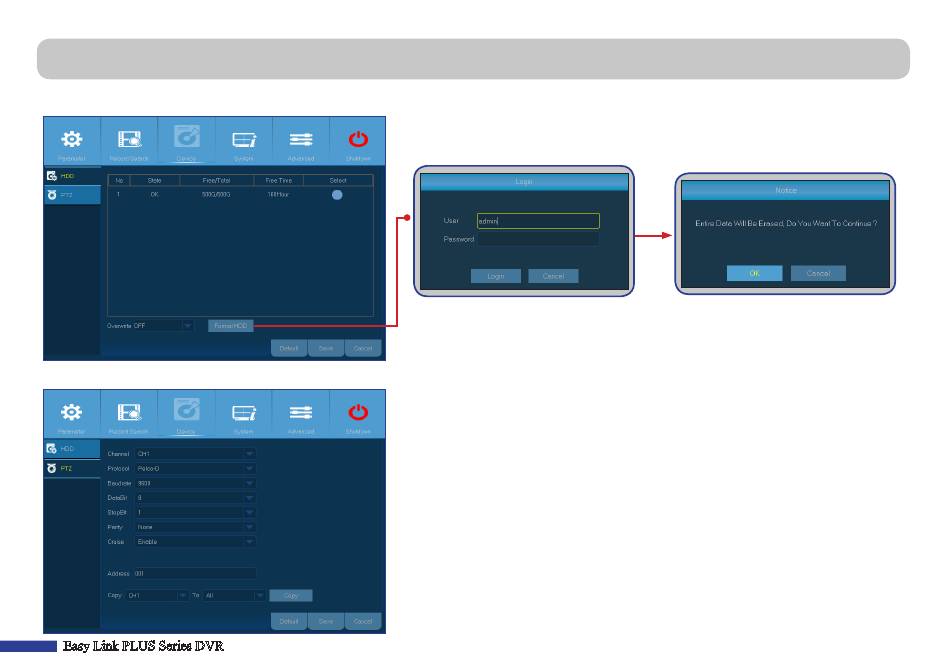

Device: HDD & PTZ
• Format HDD: Select the HDD you want to format and then click Format HDD. To start formatting,
you need to enter your user name and password and then click OK to confirm to continue
formatting.
• Overwrite: Use this option to overwrite the old recordings on the HDD when the HDD is full. For
example, if you choose the option 7 days then only the last 7 days recordings are kept on the
HDD. To prevent overwriting any old recordings, select Disable. If you have disabled this function,
please check the HDD status regularly, to make sure the HDD is not full.
• Channel: Choose a channel where is connected a dome camera.
• Protocol: Choose the communication protocol between the PTZ capable camera and DVR.
• Baudrate: The speed of the information sent from the DVR to the PTZ-capable camera. Make sure
it matches the compatibility level of your PTZ-capable camera.
• DataBit/StopBit: The information between the DVR and PTZ-capable camera is sent in individual
packages. The DataBit indicates the number of bits sent, while the EndBit indicates the end of
the package and the beginning of the next (information) package. The available parameters for
DataBit are the following: 8, 7, 6, 5. The available parameters for the StopBit are 1 or 2.
• Cruise: Enable to allow to use the Cruise mode. In order to use the Cruise mode, you need to set a
number of preset points.
• Parity: Is necessary for error check. See the documentation of your PTZ-capable camera, to
configure this setting.
• Address: Set the command address of the PTZ system. Please be noted that each PTZ-capable
camera needs a unique address to function properly.
