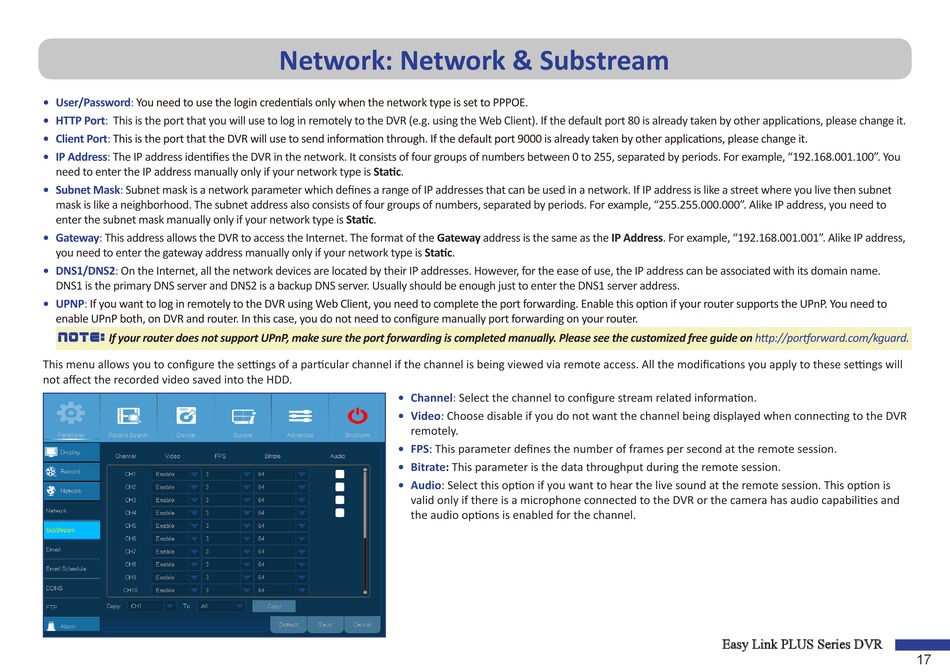

Network: Network & Substream - KGuard Security Easy Link PLUS Series User Manual

Table of Contents

• User/Password:

You need to use the login credentials only when the network type is set to PPPOE.

• HTTP Port:

This is the port that you will use to log in remotely to the DVR (e.g. using the Web Client). If the default port 80 is already taken by other applications, please change it.

• Client Port:

This is the port that the DVR will use to send information through. If the default port 9000 is already taken by other applications, please change it.

• IP Address:

The IP address identifies the DVR in the network. It consists of four groups of numbers between 0 to 255, separated by periods. For example, "192.168.001.100". You

need to enter the IP address manually only if your network type is Static.

• Subnet Mask:

Subnet mask is a network parameter which defines a range of IP addresses that can be used in a network. If IP address is like a street where you live then subnet

mask is like a neighborhood. The subnet address also consists of four groups of numbers, separated by periods. For example, "255.255.000.000". Alike IP address, you need to

enter the subnet mask manually only if your network type is Static.

• Gateway:

This address allows the DVR to access the Internet. The format of the Gateway address is the same as the IP Address. For example, "192.168.001.001". Alike IP address,

you need to enter the gateway address manually only if your network type is Static.

• DNS1/DNS2:

On the Internet, all the network devices are located by their IP addresses. However, for the ease of use, the IP address can be associated with its domain name.

DNS1 is the primary DNS server and DNS2 is a backup DNS server. Usually should be enough just to enter the DNS1 server address.

• UPNP:

If you want to log in remotely to the DVR using Web Client, you need to complete the port forwarding. Enable this option if your router supports the UPnP. You need to

enable UPnP both, on DVR and router. In this case, you do not need to configure manually port forwarding on your router.

If your router does not support UPnP, make sure the port forwarding is completed manually. Please see the customized free guide on

NOTE:

This menu allows you to configure the settings of a particular channel if the channel is being viewed via remote access. All the modifications you apply to these settings will

not affect the recorded video saved into the HDD.

Network: Network & Substream

• Channel:

Select the channel to configure stream related information.

•

Video: Choose disable if you do not want the channel being displayed when connecting to the DVR

remotely.

•

FPS: This parameter defines the number of frames per second at the remote session.

•

Bitrate: This parameter is the data throughput during the remote session.

•
