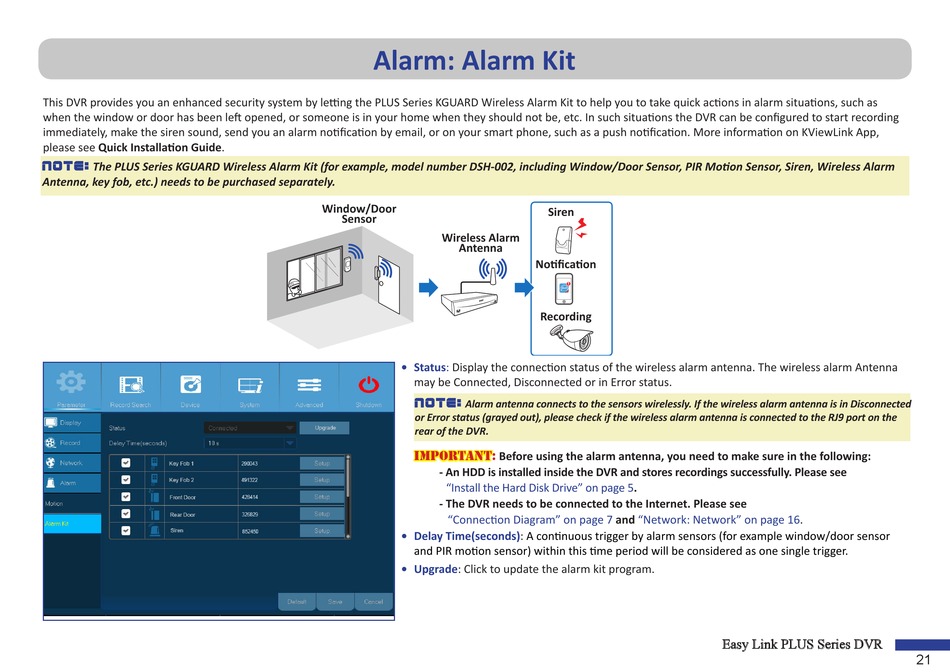

Alarm: Alarm Kit - KGuard Security Easy Link PLUS Series User Manual

This DVR provides you an enhanced security system by letting the PLUS Series KGUARD Wireless Alarm Kit to help you to take quick actions in alarm situations, such as
when the window or door has been left opened, or someone is in your home when they should not be, etc. In such situations the DVR can be configured to start recording
immediately, make the siren sound, send you an alarm notification by email, or on your smart phone, such as a push notification. More information on KViewLink App,
please see Quick Installation Guide.
The PLUS Series KGUARD Wireless Alarm Kit (for example, model number DSH-002, including Window/Door Sensor, PIR Motion Sensor, Siren, Wireless Alarm
NOTE:
Antenna, key fob, etc.) needs to be purchased separately.

Alarm: Alarm Kit

Window/Door
Sensor
Wireless Alarm
Antenna
4CH
Easy Link PLUS
HD
720P
• Status: Display the connection status of the wireless alarm antenna. The wireless alarm Antenna
may be Connected, Disconnected or in Error status.
Alarm antenna connects to the sensors wirelessly. If the wireless alarm antenna is in Disconnected
NOTE:
or Error status (grayed out), please check if the wireless alarm antenna is connected to the RJ9 port on the
rear of the DVR.
IMPORTANT:
Before using the alarm antenna, you need to make sure in the following:
- An HDD is installed inside the DVR and stores recordings successfully. Please see
"Install the Hard Disk Drive" on page
- The DVR needs to be connected to the Internet. Please see
"Connection Diagram" on page 7
• Delay Time(seconds):
and PIR motion sensor) within this time period will be considered as one single trigger.
• Upgrade: Click to update the alarm kit program.
Siren
Notification
1
Recording
5.
and "Network: Network" on page
A continuous trigger by alarm sensors (for example window/door sensor
16.
Easy Link PLUS Series DVR
21
