KGuard Security Easy Link PLUS Series User Manual page 7

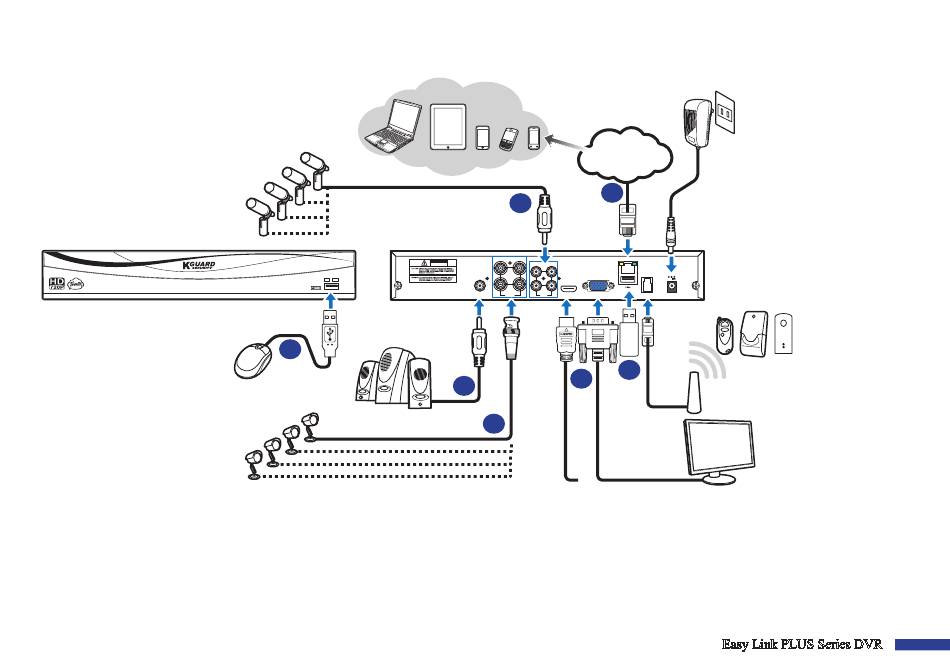

Connection Diagram
Front
1) Connect the microphone(s) and/or audio-supported camera(s), if you want to
listen to the audio sound from the cameras.
2) Connect one end of the supplied RJ-45 cable to the router and the other end to
the LAN connector on the rear of the DVR.
3) Use the USB flash disk for backup or system upgrade.
4) Connect the video output of the DVR to the TV or monitor via HDMI or VGA
connection.
Notebook/PC
Tablet PC
Rear
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
7
6
Smart Phones
Internet
2
1
3 1 LAN
3 1
4 2 4 2
AUDIO VIDEO AUDIO
HDMI VGA RJ9
OUTPUT INPUT INPUT
3
4
5
or
5) Connect the BNC plug of the camera's extension cable to the Video input
connector on the rear of the DVR.
6) Connect speakers if you want to listen to the live audio sound or audio playback from
the DVR.
7) You need the USB mouse to go through the initial setup menus once the DVR is
powered on.
12V
Wireless Alarm Devices of PLUS Series
(sensors, sirens, key fobs, etc.)
Wireless Alarm
Antenna
Easy Link PLUS Series DVR
7
