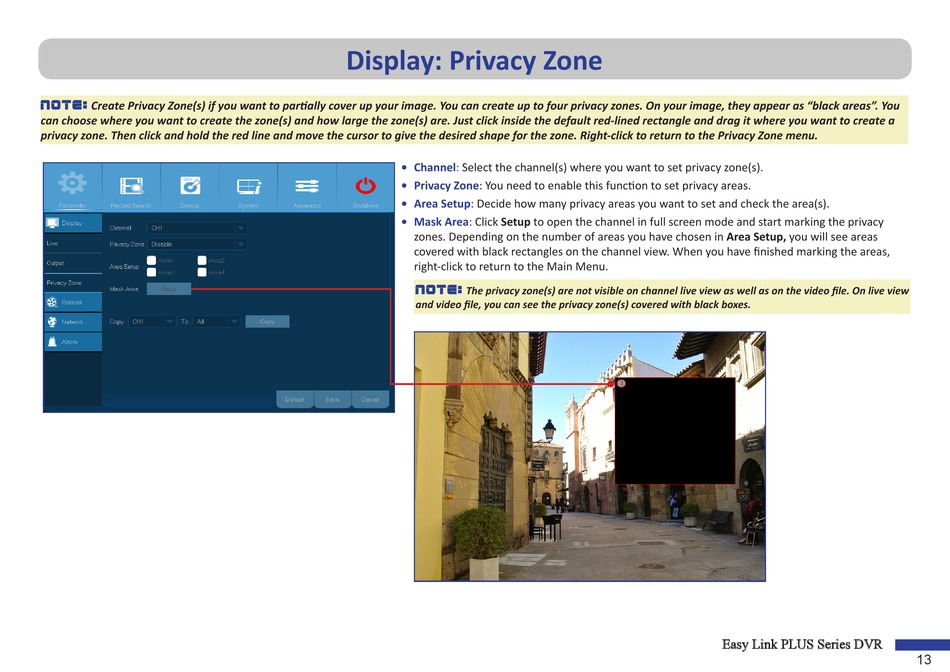

Display: Privacy Zone - KGuard Security Easy Link PLUS Series User Manual

Create Privacy Zone(s) if you want to partially cover up your image. You can create up to four privacy zones. On your image, they appear as "black areas". You
NOTE:
can choose where you want to create the zone(s) and how large the zone(s) are. Just click inside the default red-lined rectangle and drag it where you want to create a
privacy zone. Then click and hold the red line and move the cursor to give the desired shape for the zone. Right-click to return to the Privacy Zone menu.

Display: Privacy Zone

• Channel: Select the channel(s) where you want to set privacy zone(s).
• Privacy Zone: You need to enable this function to set privacy areas.
• Area Setup: Decide how many privacy areas you want to set and check the area(s).
• Mask Area: Click Setup to open the channel in full screen mode and start marking the privacy
zones. Depending on the number of areas you have chosen in Area Setup, you will see areas
covered with black rectangles on the channel view. When you have finished marking the areas,
right-click to return to the Main Menu.
The privacy zone(s) are not visible on channel live view as well as on the video file. On live view
NOTE:
and video file, you can see the privacy zone(s) covered with black boxes.
Easy Link PLUS Series DVR
13
