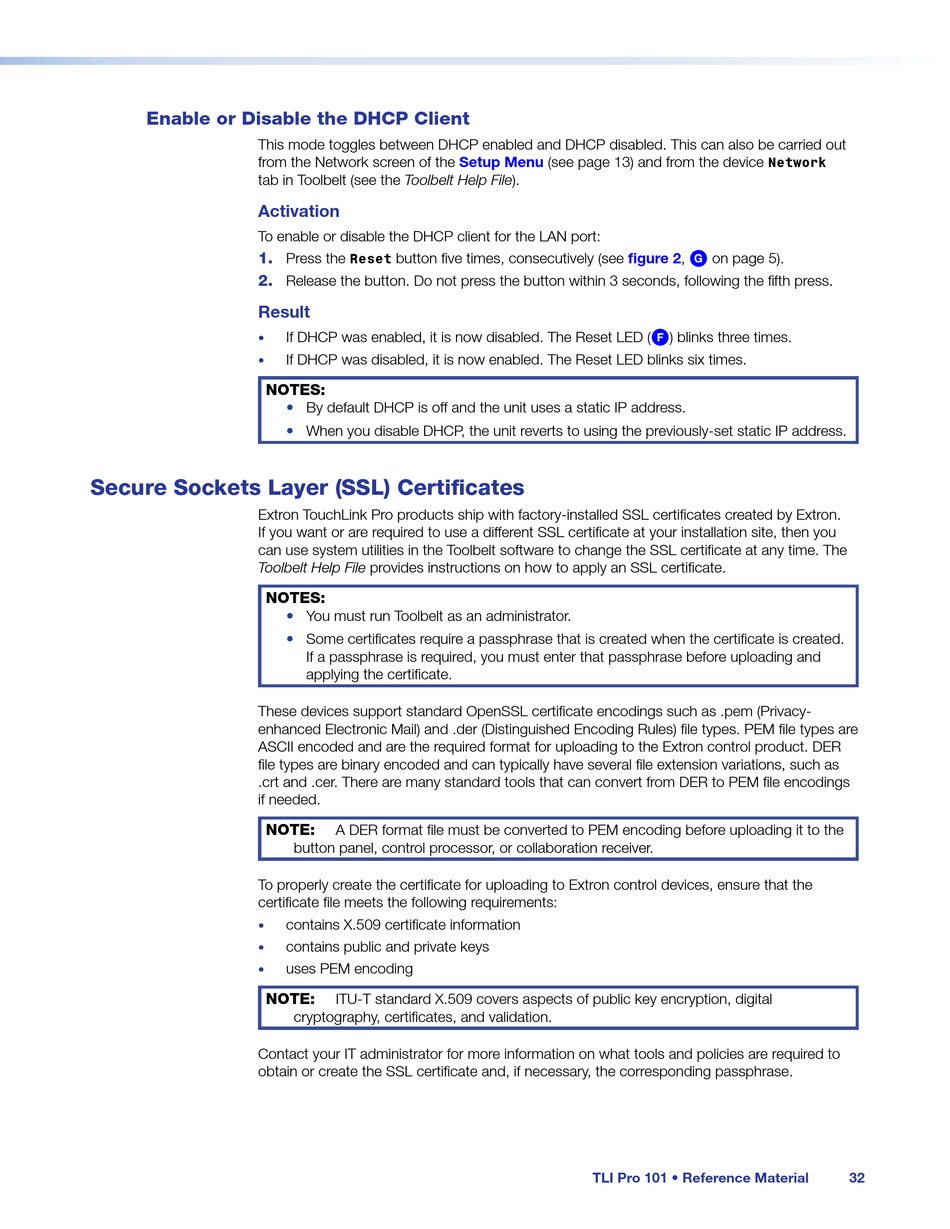

Enable or Disable the DHCP Client
This mode toggles between DHCP enabled and DHCP disabled. This can also be carried out
from the Network screen of the
tab in Toolbelt (see the Toolbelt Help File).
Activation
To enable or disable the DHCP client for the LAN port:
1.
2.
Result
•
•
NOTES:
Secure Sockets Layer (SSL) Certificates
Extron TouchLink Pro products ship with factory-installed SSL certificates created by Extron.
If you want or are required to use a different SSL certificate at your installation site, then you
can use system utilities in the Toolbelt software to change the SSL certificate at any time. The
Toolbelt Help File provides instructions on how to apply an SSL certificate.
NOTES:
These devices support standard OpenSSL certificate encodings such as .pem (Privacy-
enhanced Electronic Mail) and .der (Distinguished Encoding Rules) file types. PEM file types are
ASCII encoded and are the required format for uploading to the Extron control product. DER
file types are binary encoded and can typically have several file extension variations, such as
.crt and .cer. There are many standard tools that can convert from DER to PEM file encodings
if needed.
NOTE:
To properly create the certificate for uploading to Extron control devices, ensure that the
certificate file meets the following requirements:
•
•
•
NOTE:
Contact your IT administrator for more information on what tools and policies are required to
obtain or create the SSL certificate and, if necessary, the corresponding passphrase.
Setup Menu
Press the
button five times, consecutively (see
Reset
Release the button. Do not press the button within 3 seconds, following the fifth press.
If DHCP was enabled, it is now disabled. The Reset LED (
If DHCP was disabled, it is now enabled. The Reset LED blinks six times.
•
By default DHCP is off and the unit uses a static IP address.
•
When you disable DHCP, the unit reverts to using the previously-set static IP address.
•
You must run Toolbelt as an administrator.
•
Some certificates require a passphrase that is created when the certificate is created.
If a passphrase is required, you must enter that passphrase before uploading and
applying the certificate.
A DER format file must be converted to PEM encoding before uploading it to the
button panel, control processor, or collaboration receiver.
contains X.509 certificate information
contains public and private keys
uses PEM encoding
ITU-T standard X.509 covers aspects of public key encryption, digital
cryptography, certificates, and validation.
(see page 13) and from the device
figure
2,
on page 5).
G
F
) blinks three times.
TLI Pro 101 • Reference Material
Network
32
