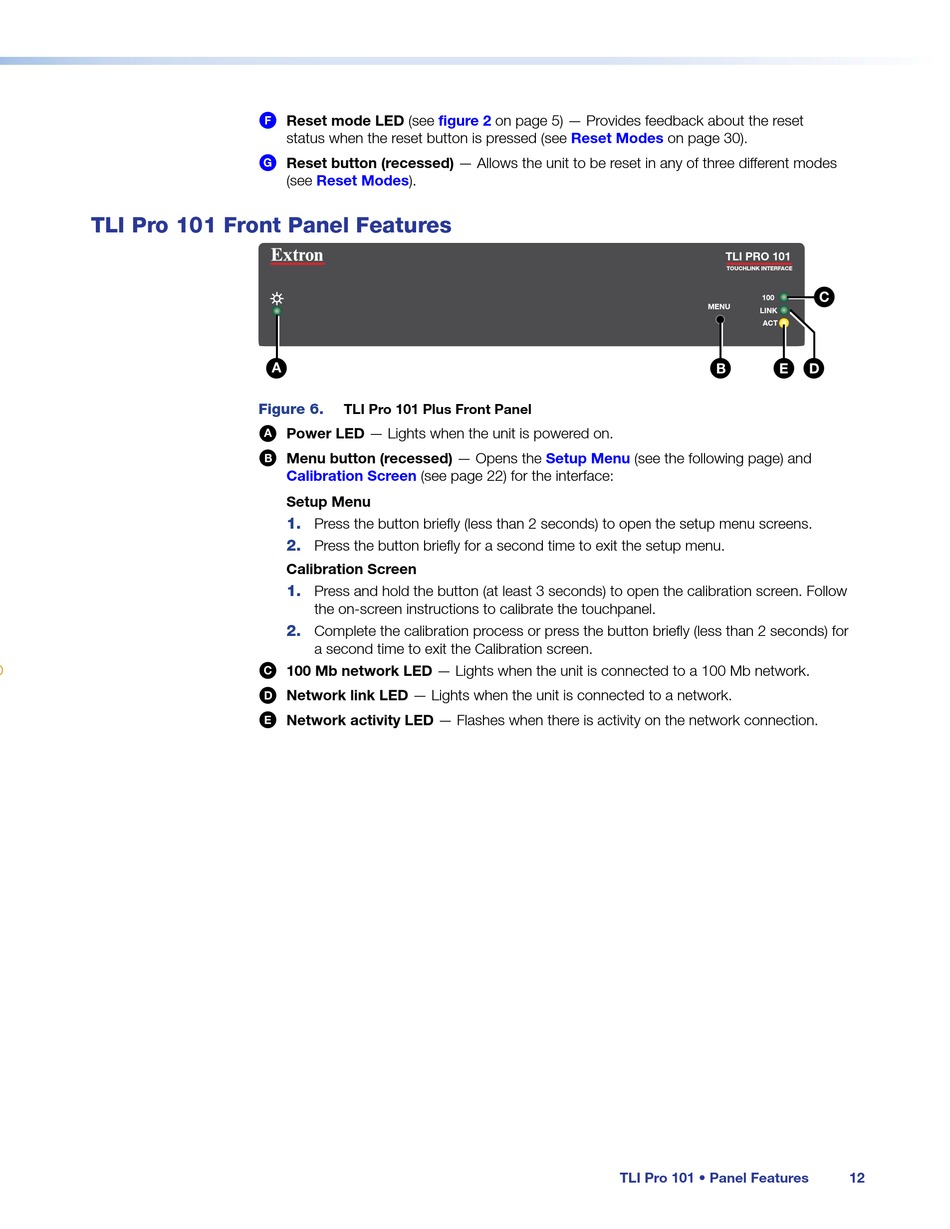

TLI Pro 101 Front Panel Features
D
Reset mode LED (see
F
status when the reset button is pressed (see
Reset button (recessed) — Allows the unit to be reset in any of three different modes
G
(see
Reset
Modes).
A
Figure 6.
TLI Pro 101 Plus Front Panel
Power LED — Lights when the unit is powered on.
A
B
Menu button (recessed) — Opens the
Calibration Screen
(see page 22) for the interface:
Setup Menu
1.
Press the button briefly (less than 2 seconds) to open the setup menu screens.
2.
Press the button briefly for a second time to exit the setup menu.
Calibration Screen
1.
Press and hold the button (at least 3 seconds) to open the calibration screen. Follow
the on-screen instructions to calibrate the touchpanel.
2.
Complete the calibration process or press the button briefly (less than 2 seconds) for
a second time to exit the Calibration screen.
100 Mb network LED — Lights when the unit is connected to a 100 Mb network.
C
Network link LED — Lights when the unit is connected to a network.
D
E
Network activity LED — Flashes when there is activity on the network connection.
figure 2
on page 5) — Provides feedback about the reset
Reset Modes
Setup Menu
on page 30).
TLI PRO 101
TOUCHLINK INTERFACE
100
MENU
LINK
ACT
B
E D
(see the following page) and
TLI Pro 101 • Panel Features
C
12
