2.5.2.

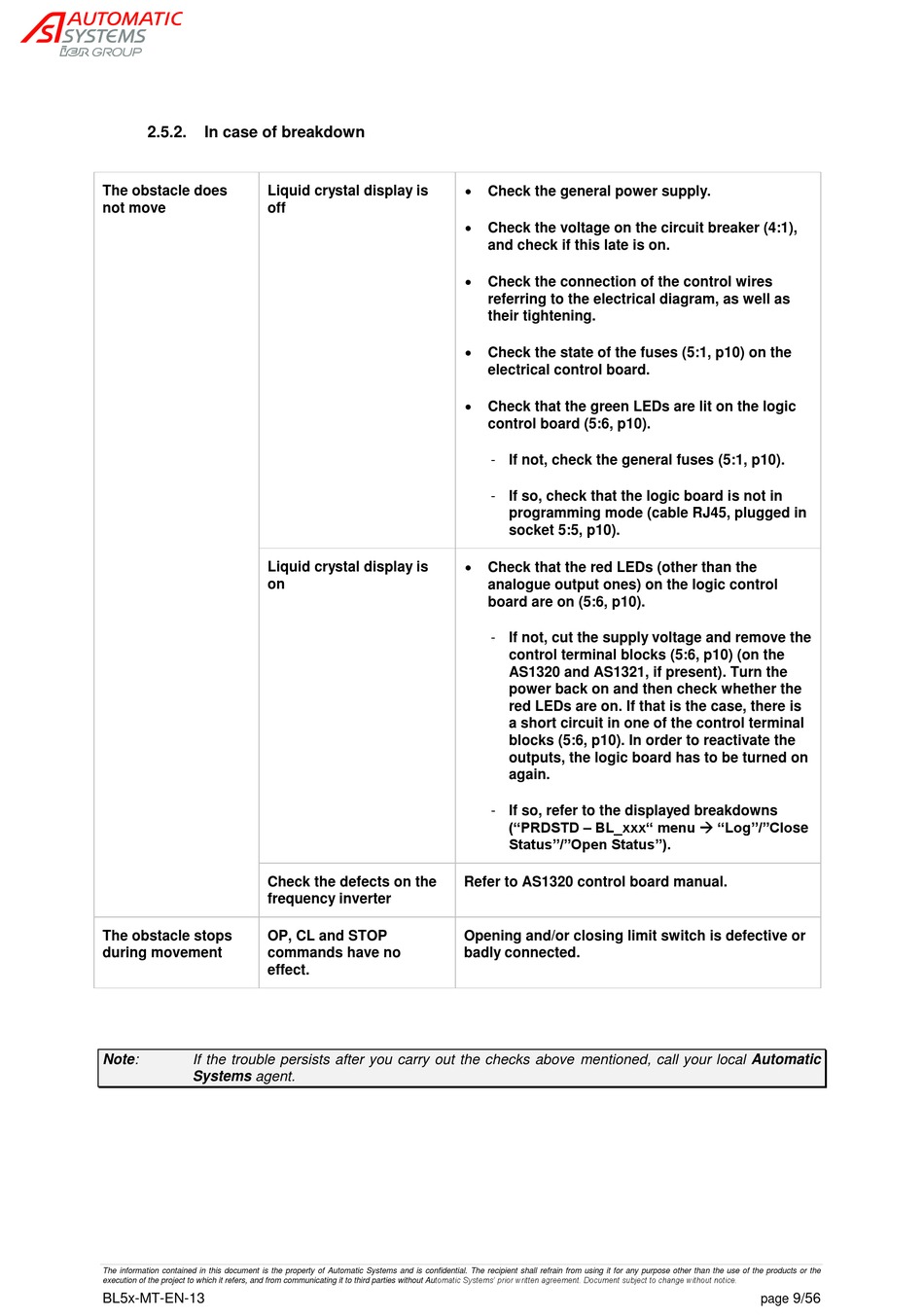

In case of breakdown

The obstacle does Liquid crystal display is
not move off
Liquid crystal display is
on
Check the defects on the
frequency inverter
The obstacle stops OP, CL and STOP
during movement commands have no
effect.
Note: If the trouble persists after you carry out the checks above mentioned, call your local Automatic
Systems agent.
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using it for any purpose other than the use of the products or the
execution of the project to which it refers, and from communicating it to third parties without Automatic Systems' prior written agreement. Document subject to change without notice.
BL5x-MT-EN-13

Check the general power supply.

Check the voltage on the circuit breaker (4:1),
and check if this late is on.

Check the connection of the control wires
referring to the electrical diagram, as well as
their tightening.

Check the state of the fuses (5:1, p10) on the
electrical control board.

Check that the green LEDs are lit on the logic
control board (5:6, p10).
- If not, check the general fuses (5:1, p10).
- If so, check that the logic board is not in
programming mode (cable RJ45, plugged in
socket 5:5, p10).

Check that the red LEDs (other than the
analogue output ones) on the logic control
board are on (5:6, p10).
- If not, cut the supply voltage and remove the
control terminal blocks (5:6, p10) (on the
AS1320 and AS1321, if present). Turn the
power back on and then check whether the
red LEDs are on. If that is the case, there is
a short circuit in one of the control terminal
blocks (5:6, p10). In order to reactivate the
outputs, the logic board has to be turned on
again.
- If so, refer to the displayed breakdowns
("PRDSTD – BL_xxx" menu  "Log"/"Close
Status"/"Open Status").
Refer to AS1320 control board manual.
Opening and/or closing limit switch is defective or
badly connected.
