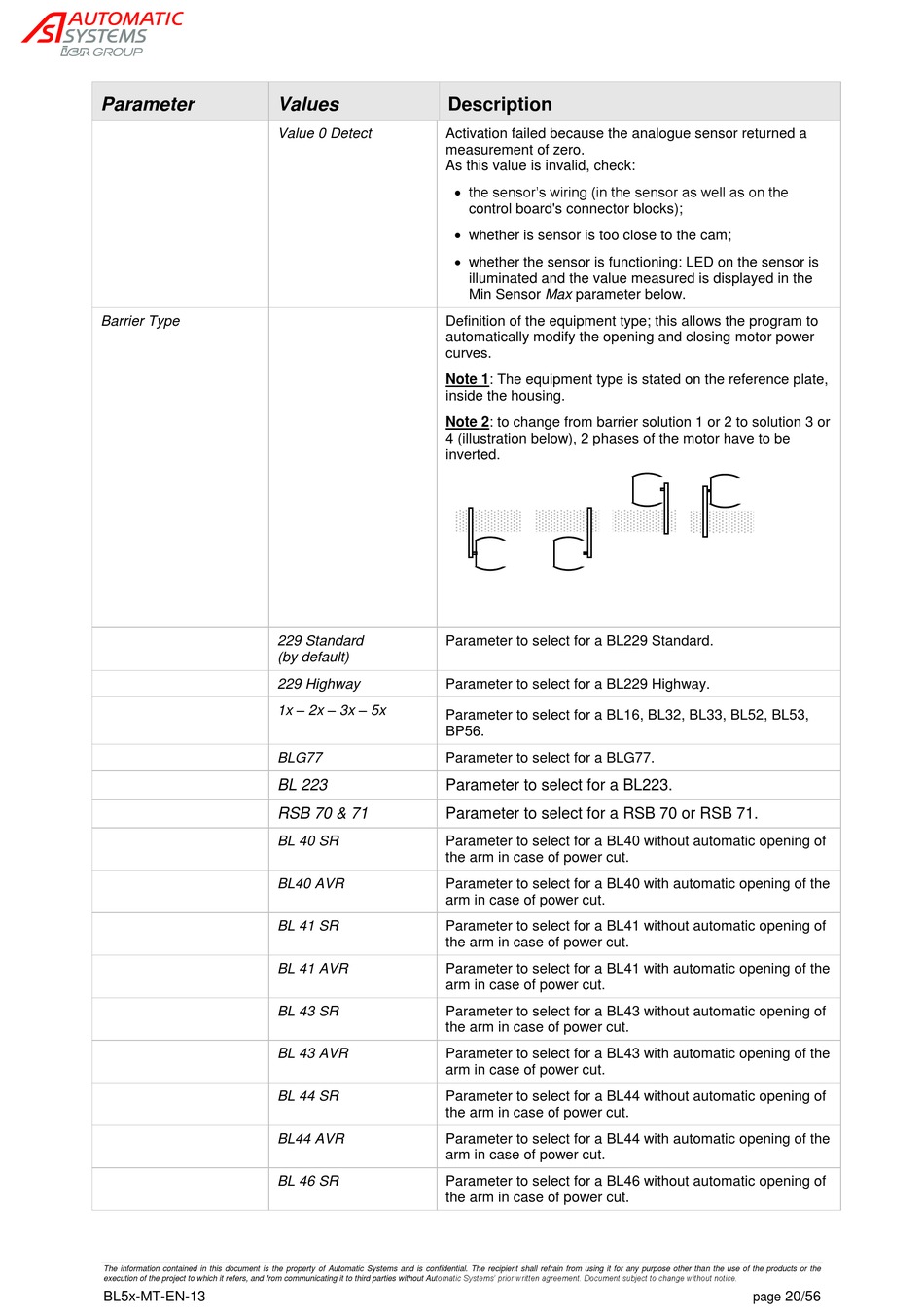

Ier Automatic Systems BL52 Operating Manual page 20

Parameter
Barrier Type
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using it for any purpose other than the use of the products or the
execution of the project to which it refers, and from communicating it to third parties without Automatic Systems' prior written agreement. Document subject to change without notice.
BL5x-MT-EN-13
Values Description
Value 0 Detect Activation failed because the analogue sensor returned a
measurement of zero.
As this value is invalid, check:
Definition of the equipment type; this allows the program to
automatically modify the opening and closing motor power
curves.
Note 1: The equipment type is stated on the reference plate,
inside the housing.
Note 2: to change from barrier solution 1 or 2 to solution 3 or
4 (illustration below), 2 phases of the motor have to be
inverted.
229 Standard Parameter to select for a BL229 Standard.
(by default)
229 Highway Parameter to select for a BL229 Highway.
1x – 2x – 3x – 5x
Parameter to select for a BL16, BL32, BL33, BL52, BL53,
BP56.
BLG77 Parameter to select for a BLG77.
BL 223 Parameter to select for a BL223.
RSB 70 & 71 Parameter to select for a RSB 70 or RSB 71.
BL 40 SR Parameter to select for a BL40 without automatic opening of
the arm in case of power cut.
BL40 AVR Parameter to select for a BL40 with automatic opening of the
arm in case of power cut.
BL 41 SR Parameter to select for a BL41 without automatic opening of
the arm in case of power cut.
BL 41 AVR Parameter to select for a BL41 with automatic opening of the
arm in case of power cut.
BL 43 SR Parameter to select for a BL43 without automatic opening of
the arm in case of power cut.
BL 43 AVR Parameter to select for a BL43 with automatic opening of the
arm in case of power cut.
BL 44 SR Parameter to select for a BL44 without automatic opening of
the arm in case of power cut.
BL44 AVR Parameter to select for a BL44 with automatic opening of the
arm in case of power cut.
BL 46 SR Parameter to select for a BL46 without automatic opening of
the arm in case of power cut.
 the sensor's wiring (in the sensor as well as on the
control board's connector blocks);
 whether is sensor is too close to the cam;
 whether the sensor is functioning: LED on the sensor is
illuminated and the value measured is displayed in the
Min Sensor Max parameter below.
solution 1 solution 2 solution 3 solution 4
