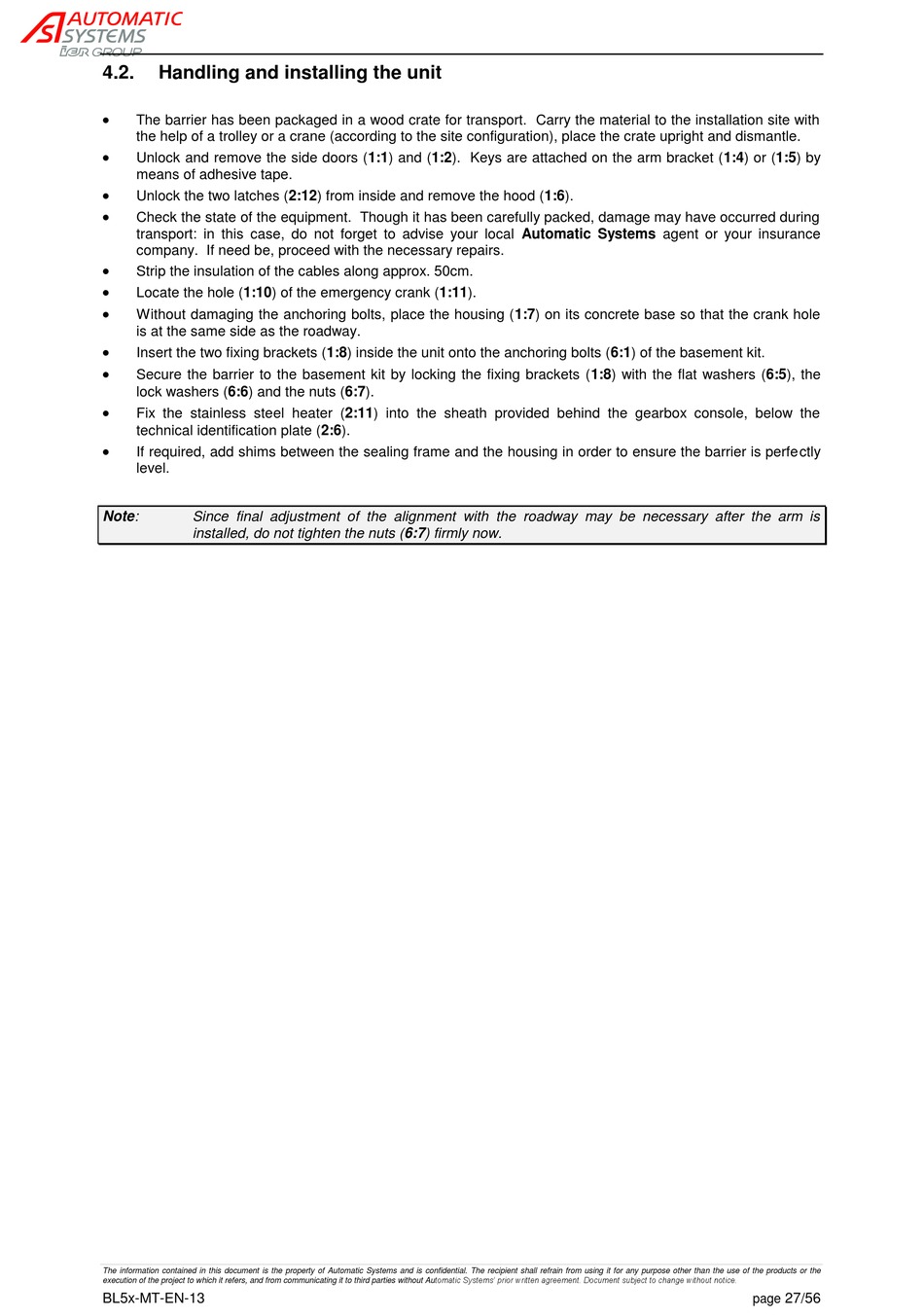

4.2.

Handling and installing the unit


The barrier has been packaged in a wood crate for transport. Carry the material to the installation site with
the help of a trolley or a crane (according to the site configuration), place the crate upright and dismantle.

Unlock and remove the side doors (1:1) and (1:2). Keys are attached on the arm bracket (1:4) or (1:5) by
means of adhesive tape.

Unlock the two latches (2:12) from inside and remove the hood (1:6).

Check the state of the equipment. Though it has been carefully packed, damage may have occurred during
transport: in this case, do not forget to advise your local Automatic Systems agent or your insurance
company. If need be, proceed with the necessary repairs.

Strip the insulation of the cables along approx. 50cm.

Locate the hole (1:10) of the emergency crank (1:11).

Without damaging the anchoring bolts, place the housing (1:7) on its concrete base so that the crank hole
is at the same side as the roadway.

Insert the two fixing brackets (1:8) inside the unit onto the anchoring bolts (6:1) of the basement kit.

Secure the barrier to the basement kit by locking the fixing brackets (1:8) with the flat washers (6:5), the
lock washers (6:6) and the nuts (6:7).

Fix the stainless steel heater (2:11) into the sheath provided behind the gearbox console, below the
technical identification plate (2:6).

If required, add shims between the sealing frame and the housing in order to ensure the barrier is perfectly
level.
Note: Since final adjustment of the alignment with the roadway may be necessary after the arm is
installed, do not tighten the nuts (6:7) firmly now.
