4.3.

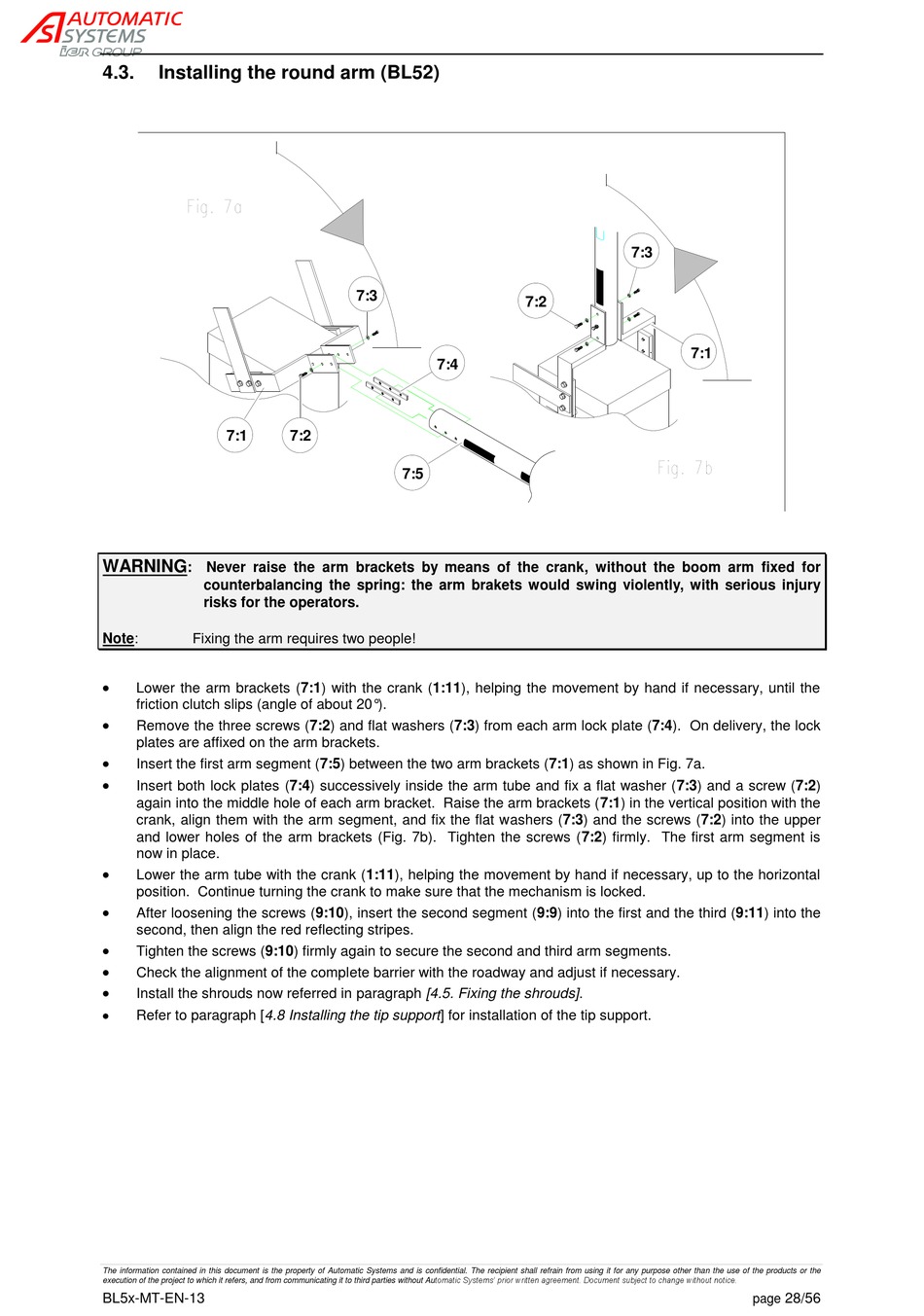

Installing the round arm (BL52)

7:1
WARNING
: Never raise the arm brackets by means of the crank, without the boom arm fixed for
counterbalancing the spring: the arm brakets would swing violently, with serious injury
risks for the operators.
Note: Fixing the arm requires two people!

Lower the arm brackets (7:1) with the crank (1:11), helping the movement by hand if necessary, until the
friction clutch slips (angle of about 20°).

Remove the three screws (7:2) and flat washers (7:3) from each arm lock plate (7:4). On delivery, the lock
plates are affixed on the arm brackets.

Insert the first arm segment (7:5) between the two arm brackets (7:1) as shown in Fig. 7a.

Insert both lock plates (7:4) successively inside the arm tube and fix a flat washer (7:3) and a screw (7:2)
again into the middle hole of each arm bracket. Raise the arm brackets (7:1) in the vertical position with the
crank, align them with the arm segment, and fix the flat washers (7:3) and the screws (7:2) into the upper
and lower holes of the arm brackets (Fig. 7b). Tighten the screws (7:2) firmly. The first arm segment is
now in place.

Lower the arm tube with the crank (1:11), helping the movement by hand if necessary, up to the horizontal
position. Continue turning the crank to make sure that the mechanism is locked.

After loosening the screws (9:10), insert the second segment (9:9) into the first and the third (9:11) into the
second, then align the red reflecting stripes.

Tighten the screws (9:10) firmly again to secure the second and third arm segments.

Check the alignment of the complete barrier with the roadway and adjust if necessary.

Install the shrouds now referred in paragraph [4.5. Fixing the shrouds].

Refer to paragraph [4.8 Installing the tip support] for installation of the tip support.
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using it for any purpose other than the use of the products or the
execution of the project to which it refers, and from communicating it to third parties without Automatic Systems' prior written agreement. Document subject to change without notice.
BL5x-MT-EN-13
7:3
7:4
7:2
7:5
7:3
7:2
7:1
