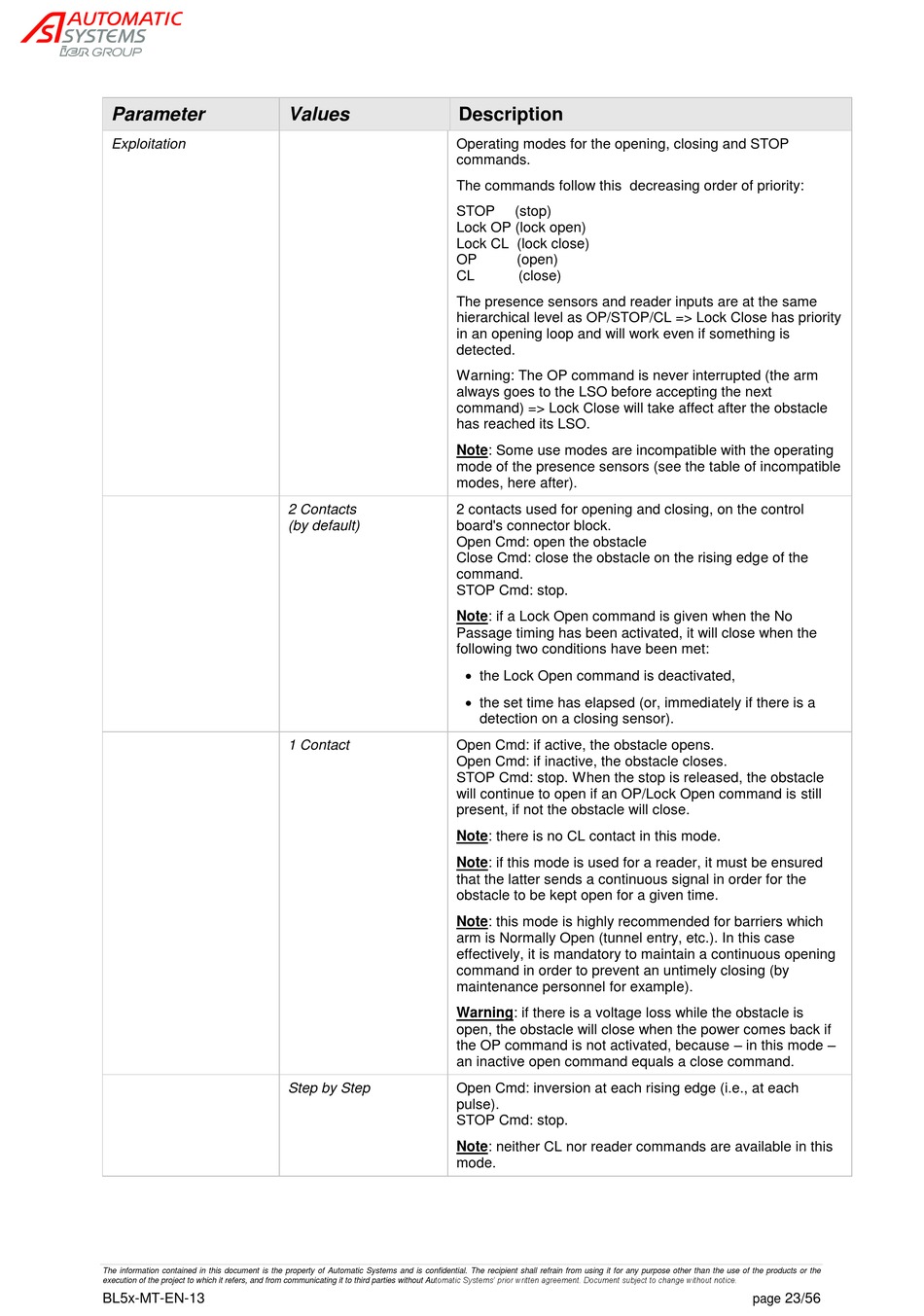

Ier Automatic Systems BL52 Operating Manual page 23

Parameter
Exploitation
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using it for any purpose other than the use of the products or the
execution of the project to which it refers, and from communicating it to third parties without Automatic Systems' prior written agreement. Document subject to change without notice.
BL5x-MT-EN-13
Values Description
Operating modes for the opening, closing and STOP
commands.
The commands follow this decreasing order of priority:
STOP
Lock OP (lock open)
Lock CL (lock close)
OP
CL
The presence sensors and reader inputs are at the same
hierarchical level as OP/STOP/CL => Lock Close has priority
in an opening loop and will work even if something is
detected.
Warning: The OP command is never interrupted (the arm
always goes to the LSO before accepting the next
command) => Lock Close will take affect after the obstacle
has reached its LSO.
Note: Some use modes are incompatible with the operating
mode of the presence sensors (see the table of incompatible
modes, here after).
2 Contacts 2 contacts used for opening and closing, on the control
board's connector block.
(by default)
Open Cmd: open the obstacle
Close Cmd: close the obstacle on the rising edge of the
command.
STOP Cmd: stop.
Note: if a Lock Open command is given when the No
Passage timing has been activated, it will close when the
following two conditions have been met:
1 Contact Open Cmd: if active, the obstacle opens.
Open Cmd: if inactive, the obstacle closes.
STOP Cmd: stop. When the stop is released, the obstacle
will continue to open if an OP/Lock Open command is still
present, if not the obstacle will close.
Note: there is no CL contact in this mode.
Note: if this mode is used for a reader, it must be ensured
that the latter sends a continuous signal in order for the
obstacle to be kept open for a given time.
Note: this mode is highly recommended for barriers which
arm is Normally Open (tunnel entry, etc.). In this case
effectively, it is mandatory to maintain a continuous opening
command in order to prevent an untimely closing (by
maintenance personnel for example).
Warning: if there is a voltage loss while the obstacle is
open, the obstacle will close when the power comes back if
the OP command is not activated, because – in this mode –
an inactive open command equals a close command.
Step by Step Open Cmd: inversion at each rising edge (i.e., at each
pulse).
STOP Cmd: stop.
Note: neither CL nor reader commands are available in this
mode.
(stop)
(open)
(close)
 the Lock Open command is deactivated,
 the set time has elapsed (or, immediately if there is a
detection on a closing sensor).
