5.4.

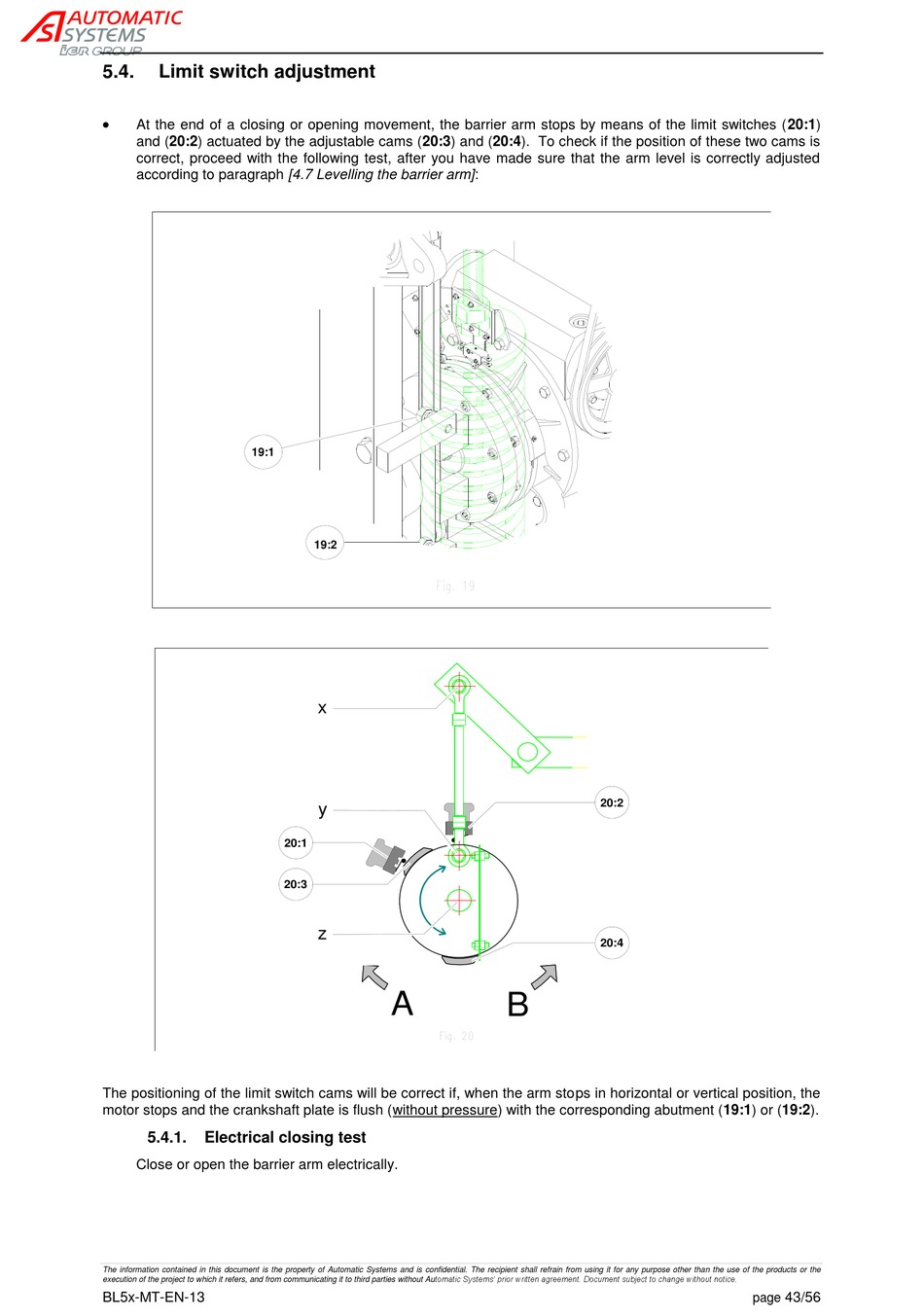

Limit switch adjustment


At the end of a closing or opening movement, the barrier arm stops by means of the limit switches (20:1)
and (20:2) actuated by the adjustable cams (20:3) and (20:4). To check if the position of these two cams is
correct, proceed with the following test, after you have made sure that the arm level is correctly adjusted
according to paragraph [4.7 Levelling the barrier arm]:
19:1
The positioning of the limit switch cams will be correct if, when the arm stops in horizontal or vertical position, the
motor stops and the crankshaft plate is flush (without pressure) with the corresponding abutment (19:1) or (19:2).
5.4.1.

Electrical closing test

Close or open the barrier arm electrically.
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using it for any purpose other than the use of the products or the
execution of the project to which it refers, and from communicating it to third parties without Automatic Systems' prior written agreement. Document subject to change without notice.
BL5x-MT-EN-13
19:2
x
y
20:1
20:3
z
A
20:2
20:4
B
