4.5.

Fixing the shrouds (BL52 only)

9:6
9:7
Attention: Fixing the shrouds requires two people!

The stainless steel bracing wires (9:1) are factory-fixed with the collar (9:2) on the arm.

When the three arm segments are fixed and secured to one another (see paragraph 4.3 Installing the round
arm), proceed as follows:
-- Unroll the cable (9:1) and pass it onto the upper screw of the collar (9:2), not forgetting to place the
eyelet.
-- Loosen the strainers (9:3) at maximum length.
-- Remove the security pin (9:4) and the axle (9:5) from the strainers.
-- Position the strainer (9:3) onto the wing (9:6) of the stretcher plates (9:7).
-- Insert the axle (9:5) into the wing of the stretcher plate and fix the security pin (9:4) again.
-- Tighten the strainers (9:3) so as to make the arm vertical in its open position and horizontal in its
closed position. If the precise positioning of the arm is not possible, see paragraph 4.7.

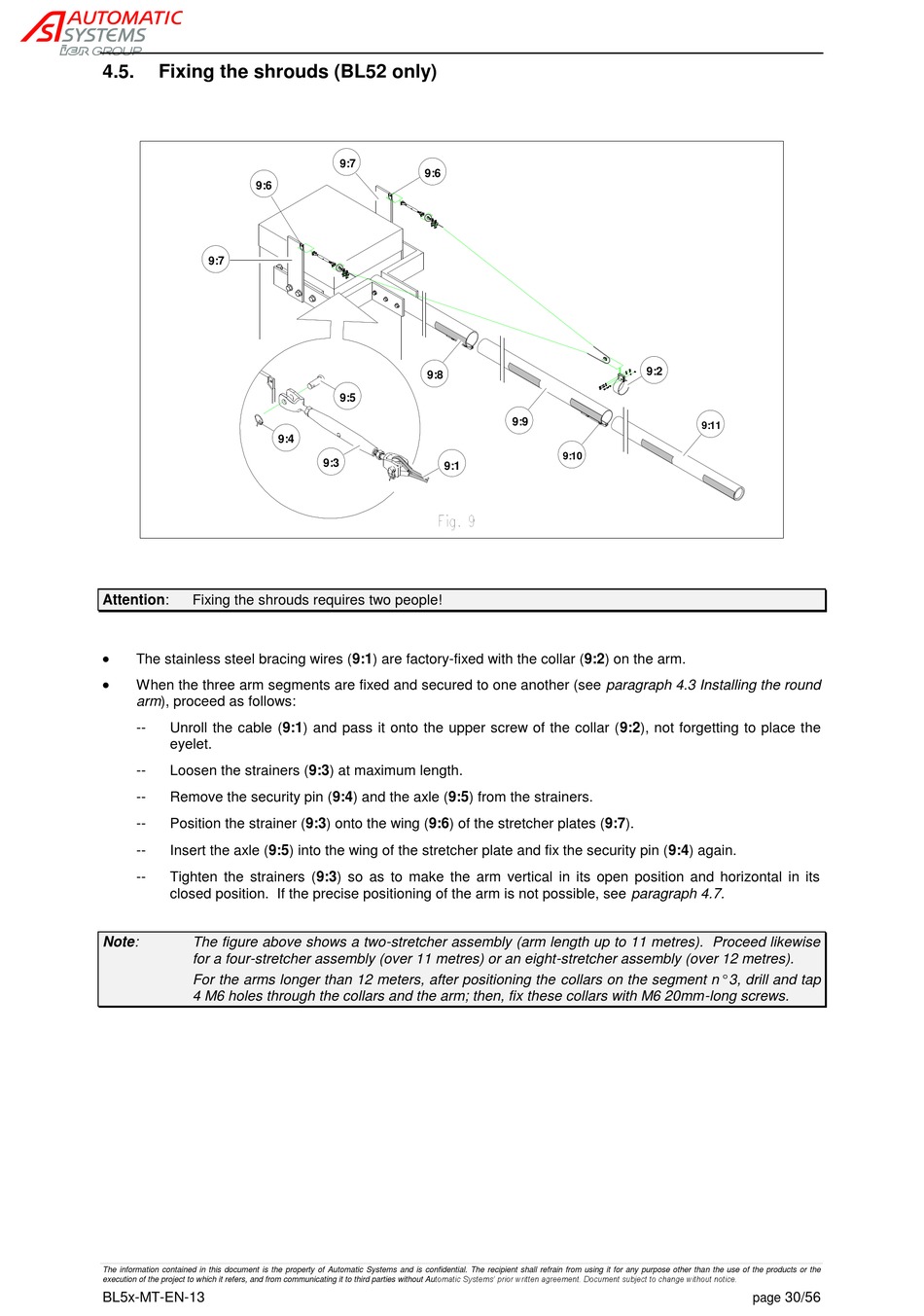

Note: The figure above shows a two-stretcher assembly (arm length up to 11 metres). Proceed likewise
for a four-stretcher assembly (over 11 metres) or an eight-stretcher assembly (over 12 metres).
For the arms longer than 12 meters, after positioning the collars on the segment n° 3, drill and tap
4 M6 holes through the collars and the arm; then, fix these collars with M6 20mm-long screws.
