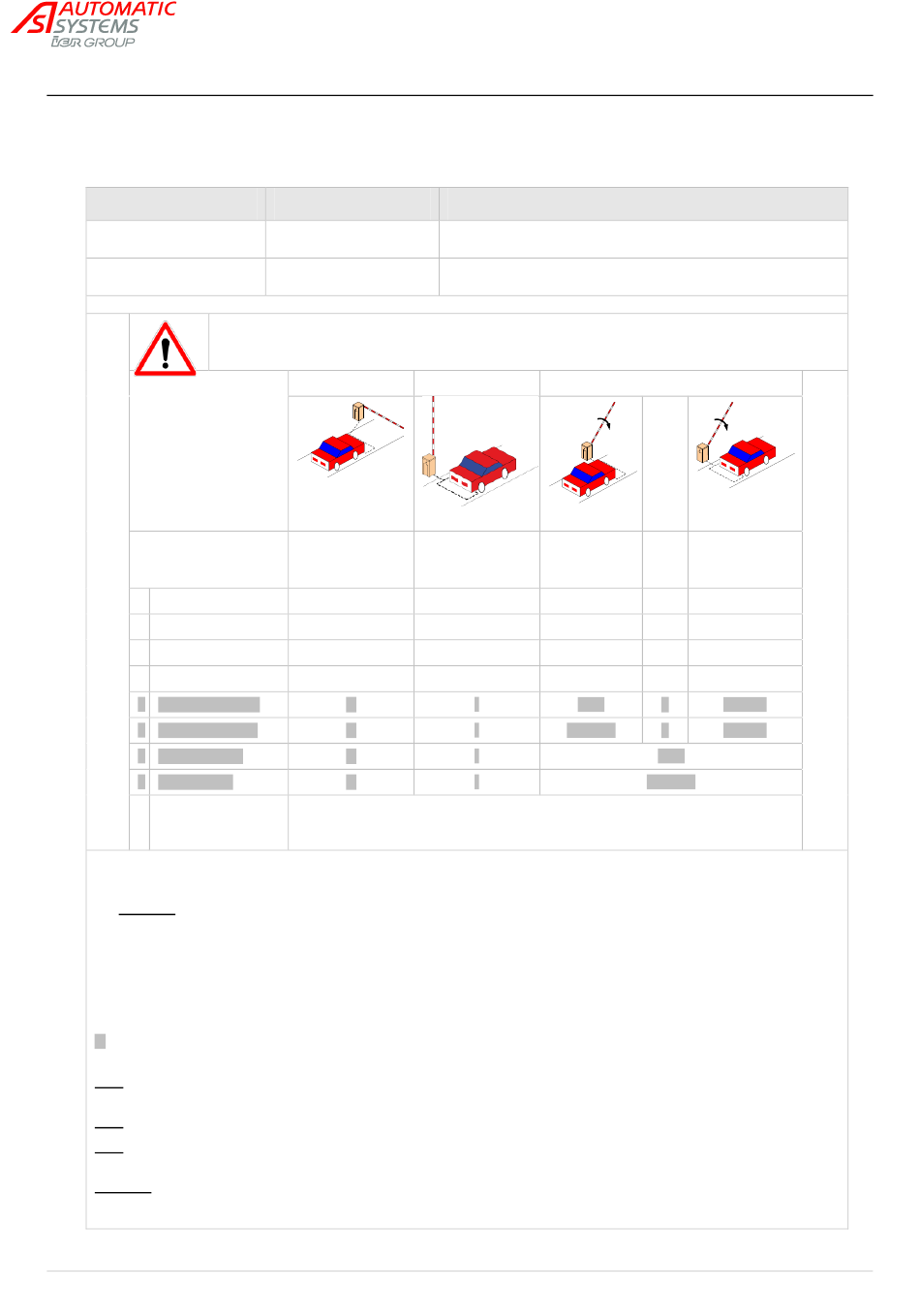

3.2.
"QUICK START" menu: quick configuration
This menu inspects the parameters that have to be configured before the equipment may be used.
Parameter
PS1 Function
PS 2 Function:
By default, the presence sensors are deactivated.
Therefore, in order to ensure that their safety functions are operational, it is
indispensable that the parameters for each of the presence sensors used be set.
Sensor function
0 Deactivated
1 Opening
2 CL_Stop+CL
3 CL_OP+CL
4 Nothin_Stop+CL
5 Nothing_OP+CL
6 Nothing_Stop
7 Nothing_OP
Incompatible
*:
Automatic closure only if the preceding opening was initiated by detection and not if presence is detected by another sensor.
Notably, if there is a power outage when the obstacle is open, the obstacle will not close automatically when the power is
brought back (a close command must be executed).
Warning: The presence sensor operating in "Open" mode may not be placed under the arm, because it is it is not secured, in
contrast to the other modes: a Lock Close command has priority for it (see the "Exploitation" parameter below) and could
cause the arm to close on a vehicle.
**: Opening is possible using the commands present on the control board's connector blocks: open command, reader command,
and Lock Open command.
***: If passage is detected while the obstacle is Locked Open, closure will take place when the Lock Open command is
deactivated.
: With regard to the underlined values, a close command must be executed to close the obstacle when it is open. The safety
function is only activated during the closing movement of the obstacle.
Note: the installation of 2 loops on PS1 and PS2 requires the use of a double detector since PS1 and PS2 are on the same
connector.
Note: 2 supplementary Presence Sensor (PS3 and PS4) are available through extended menu "SENSOR FUNCTION".
Note: the information regarding the sensor status (1/0) is always available (for each function mode) through extended menu
"OUTPUT FUNCTION".
Warning: When the power is turned on, the detectors (DP) measure the state of the loops and initialize the reference level with
regard to their environment. Hence, if a vehicle is present on the loop during activation, it will not be detected and the loop will
give the order to close (in modes 1, 2 and 3 only)!
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using it for any purpose other than the use of the products or the execution of the project to which
it refers, and from communicating it to third parties without Automatic Systems' prior written agreement. Document subject to change without notice.
BL5x-MT-EN-13
Values
Description
0 (by default) to 7
0 (by default) to 7
closed obstacle
open obstacle
Action upon
Action upon
arrival in the
leaving the
sensor's field
sensor's field
**
Opening**
**
Closing***
Closing***
**
**
**
**
**
This message is displayed for 1 second if the selected operating mode for the sensor
is not compatible with the exploitation mode (parameter below). See the table of
incompatible modes here under.
Definition of the mode of operation of Presence
Sensor 1: see table below.
Definition of the mode of operation of Presence
Sensor 2: see table below.
Closing obstacle
Action upon
arrival in the
sensor's field
-
-
Closing*
Opening
Stop
Opening
-
Stop
-
Opening
-
-
Action upon
+
leaving the
sensor's field
+
Closing*
+
Closing
Closing
+
+
Closing
+
Closing
Stop
Opening
18/56
