4.

INSTALLATION

4.1.

Preliminary work on site


This is basically the following:
-- Assembly of the barrier installation basement kit, delivered as an accessory.
6:6
6:4
6:3
6:1

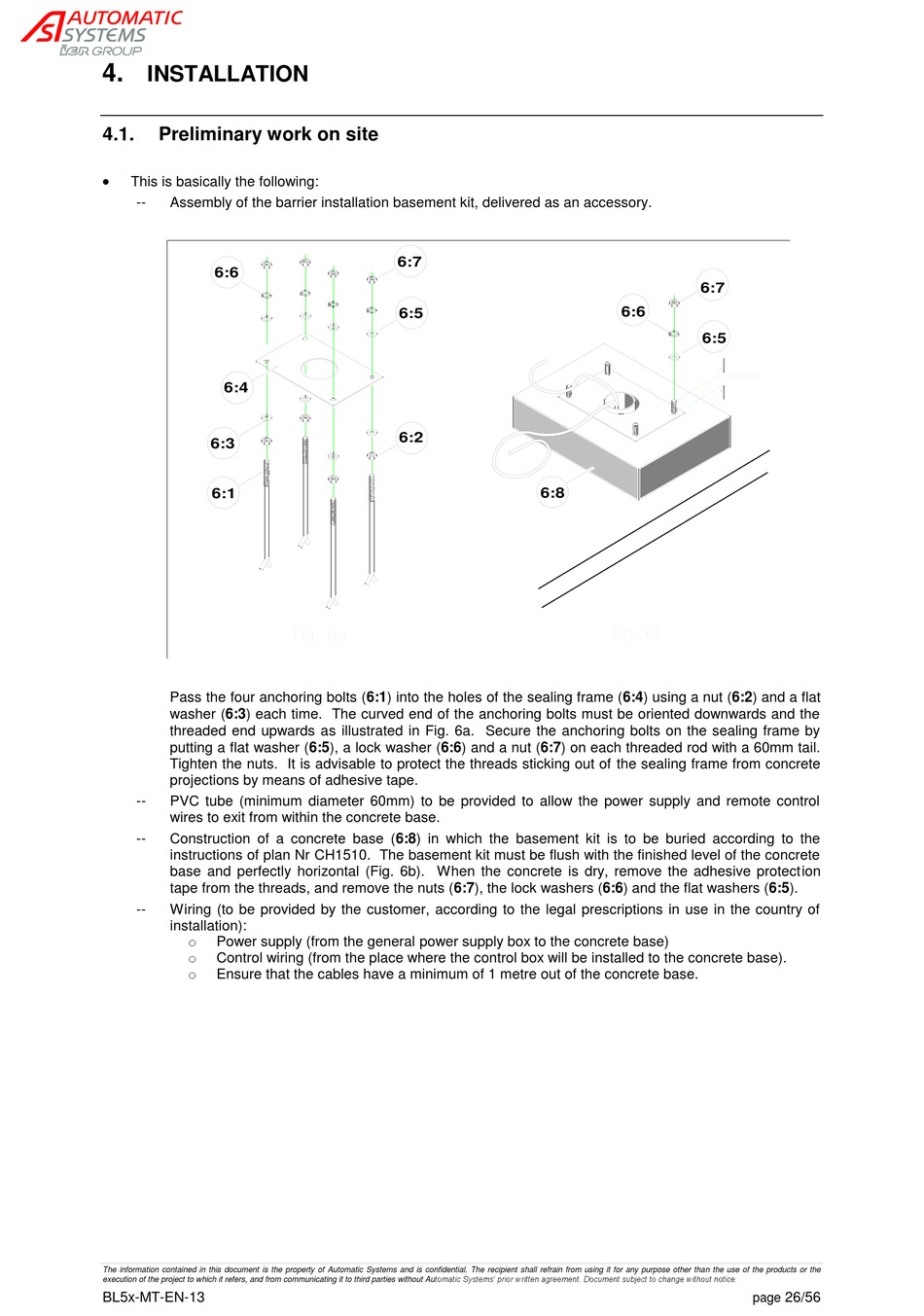

Pass the four anchoring bolts (6:1) into the holes of the sealing frame (6:4) using a nut (6:2) and a flat
washer (6:3) each time. The curved end of the anchoring bolts must be oriented downwards and the
threaded end upwards as illustrated in Fig. 6a. Secure the anchoring bolts on the sealing frame by
putting a flat washer (6:5), a lock washer (6:6) and a nut (6:7) on each threaded rod with a 60mm tail.
Tighten the nuts. It is advisable to protect the threads sticking out of the sealing frame from concrete
projections by means of adhesive tape.
-- PVC tube (minimum diameter 60mm) to be provided to allow the power supply and remote control
wires to exit from within the concrete base.
-- Construction of a concrete base (6:8) in which the basement kit is to be buried according to the
instructions of plan Nr CH1510. The basement kit must be flush with the finished level of the concrete
base and perfectly horizontal (Fig. 6b). When the concrete is dry, remove the adhesive protection
tape from the threads, and remove the nuts (6:7), the lock washers (6:6) and the flat washers (6:5).
-- Wiring (to be provided by the customer, according to the legal prescriptions in use in the country of
installation):
o
Power supply (from the general power supply box to the concrete base)
o
Control wiring (from the place where the control box will be installed to the concrete base).
o
Ensure that the cables have a minimum of 1 metre out of the concrete base.
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using it for any purpose other than the use of the products or the
execution of the project to which it refers, and from communicating it to third parties without Automatic Systems' prior written agreement. Document subject to change without notice.
BL5x-MT-EN-13
6:7
6:5
6:2
6:8
6:7
6:6
6:5
