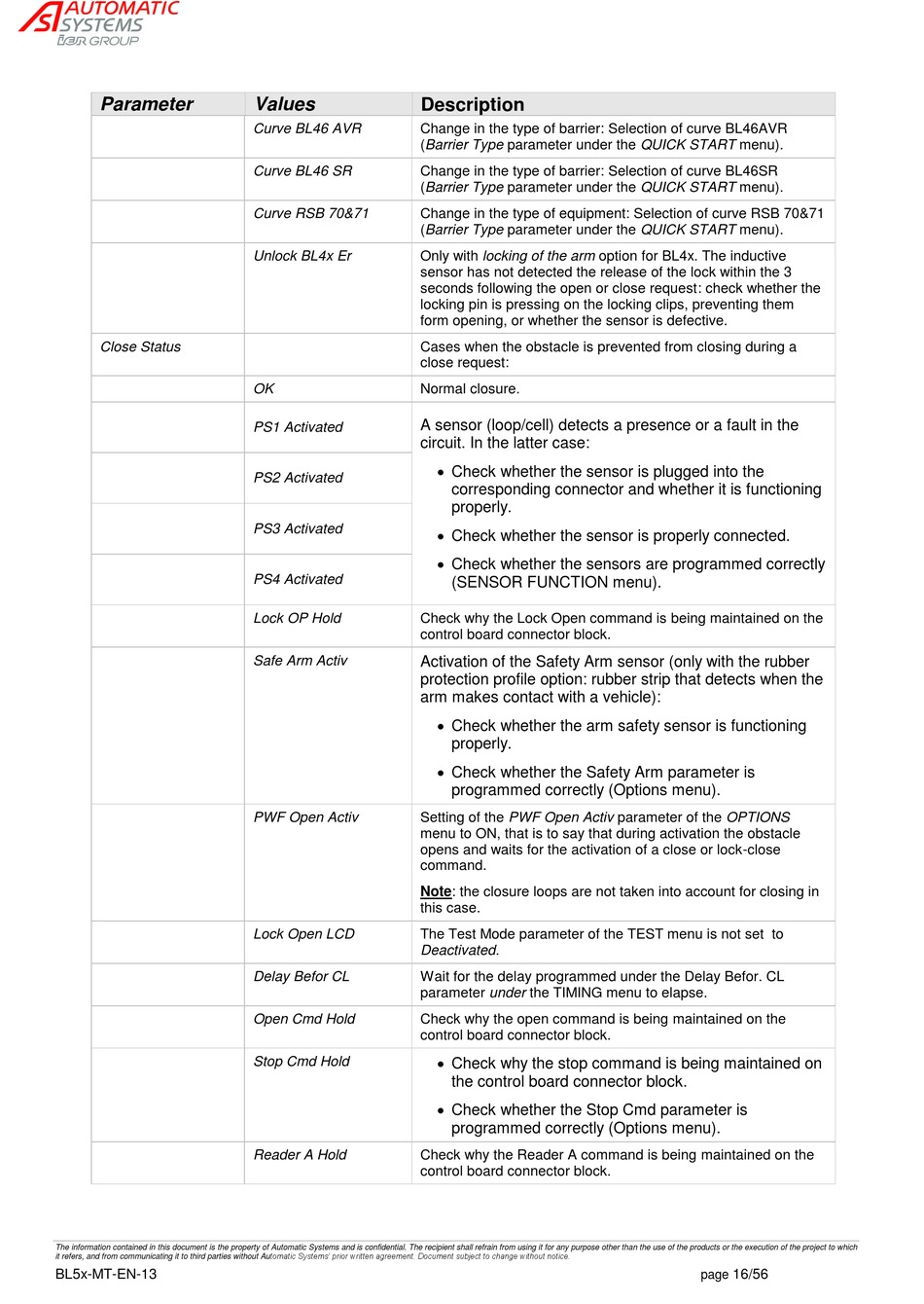

Ier Automatic Systems BL52 Operating Manual page 16

Parameter
Close Status
The information contained in this document is the property of Automatic Systems and is confidential. The recipient shall refrain from using it for any purpose other than the use of the products or the execution of the project to which
it refers, and from communicating it to third parties without Automatic Systems' prior written agreement. Document subject to change without notice.
BL5x-MT-EN-13
Values Description
Curve BL46 AVR Change in the type of barrier: Selection of curve BL46AVR
(Barrier Type parameter under the QUICK START menu).
Curve BL46 SR Change in the type of barrier: Selection of curve BL46SR
(Barrier Type parameter under the QUICK START menu).
Curve RSB 70&71 Change in the type of equipment: Selection of curve RSB 70&71
(Barrier Type parameter under the QUICK START menu).
Unlock BL4x Er Only with locking of the arm option for BL4x. The inductive
sensor has not detected the release of the lock within the 3
seconds following the open or close request: check whether the
locking pin is pressing on the locking clips, preventing them
form opening, or whether the sensor is defective.
Cases when the obstacle is prevented from closing during a
close request:
OK Normal closure.
A sensor (loop/cell) detects a presence or a fault in the
PS1 Activated
circuit. In the latter case:
PS2 Activated
PS3 Activated
PS4 Activated
Lock OP Hold Check why the Lock Open command is being maintained on the
control board connector block.
Safe Arm Activ Activation of the Safety Arm sensor (only with the rubber
protection profile option: rubber strip that detects when the
arm makes contact with a vehicle):
PWF Open Activ Setting of the PWF Open Activ parameter of the OPTIONS
menu to ON, that is to say that during activation the obstacle
opens and waits for the activation of a close or lock-close
command.
Note: the closure loops are not taken into account for closing in
this case.
Lock Open LCD The Test Mode parameter of the TEST menu is not set to
Deactivated.
Delay Befor CL Wait for the delay programmed under the Delay Befor. CL
parameter under the TIMING menu to elapse.
Open Cmd Hold Check why the open command is being maintained on the
control board connector block.
Stop Cmd Hold
Reader A Hold Check why the Reader A command is being maintained on the
control board connector block.
 Check whether the sensor is plugged into the
corresponding connector and whether it is functioning
properly.
 Check whether the sensor is properly connected.
 Check whether the sensors are programmed correctly
(SENSOR FUNCTION menu).
 Check whether the arm safety sensor is functioning
properly.
 Check whether the Safety Arm parameter is
programmed correctly (Options menu).
 Check why the stop command is being maintained on
the control board connector block.
 Check whether the Stop Cmd parameter is
programmed correctly (Options menu).
