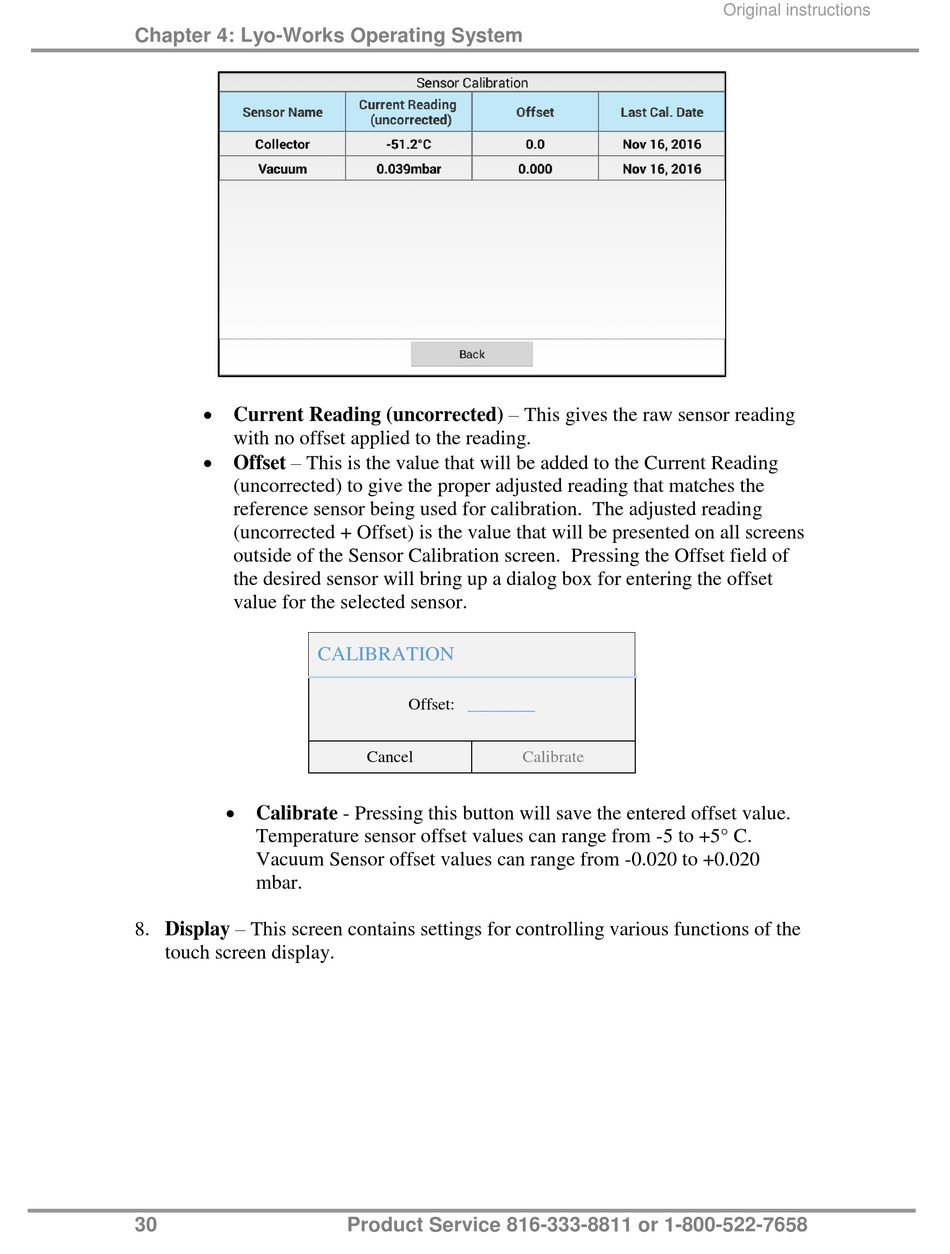

Chapter 4: Lyo-Works Operating System
 Current Reading (uncorrected) – This gives the raw sensor reading
with no offset applied to the reading.
 Offset – This is the value that will be added to the Current Reading
(uncorrected) to give the proper adjusted reading that matches the
reference sensor being used for calibration. The adjusted reading
(uncorrected + Offset) is the value that will be presented on all screens
outside of the Sensor Calibration screen. Pressing the Offset field of
the desired sensor will bring up a dialog box for entering the offset
value for the selected sensor.
 Calibrate - Pressing this button will save the entered offset value.
Temperature sensor offset values can range from -5 to +5° C.
Vacuum Sensor offset values can range from -0.020 to +0.020
mbar.
8. Display – This screen contains settings for controlling various functions of the
touch screen display.
