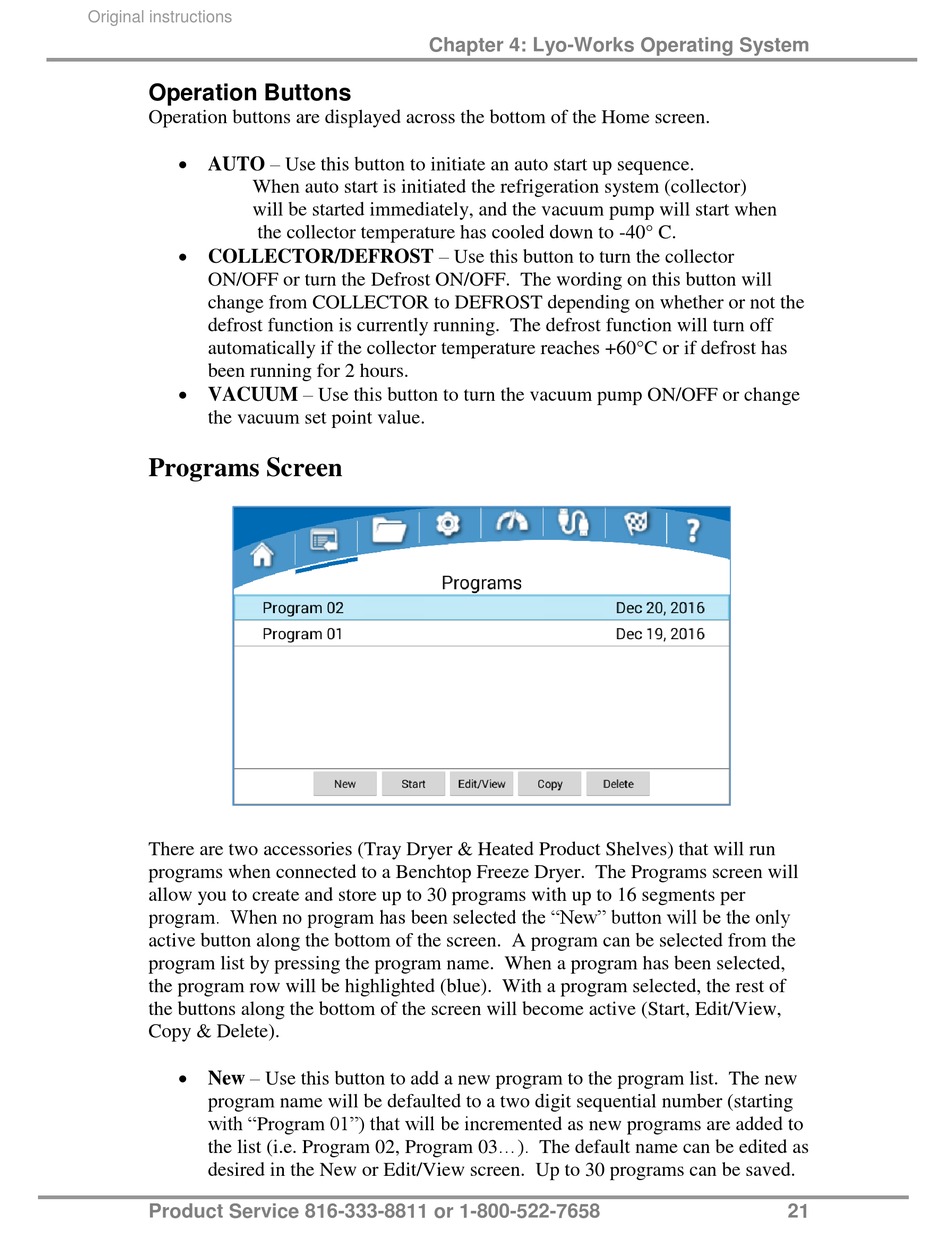

Operation Buttons
Operation buttons are displayed across the bottom of the Home screen.
 AUTO – Use this button to initiate an auto start up sequence.
When auto start is initiated the refrigeration system (collector)
will be started immediately, and the vacuum pump will start when
the collector temperature has cooled down to -40° C.
 COLLECTOR/DEFROST – Use this button to turn the collector
ON/OFF or turn the Defrost ON/OFF. The wording on this button will
change from COLLECTOR to DEFROST depending on whether or not the
defrost function is currently running. The defrost function will turn off
automatically if the collector temperature reaches +60°C or if defrost has
been running for 2 hours.
 VACUUM – Use this button to turn the vacuum pump ON/OFF or change
the vacuum set point value.

Programs Screen

There are two accessories (Tray Dryer & Heated Product Shelves) that will run
programs when connected to a Benchtop Freeze Dryer. The Programs screen will
allow you to create and store up to 30 programs with up to 16 segments per
program. When no program has been selected the "New" button will be the only
active button along the bottom of the screen. A program can be selected from the
program list by pressing the program name. When a program has been selected,
the program row will be highlighted (blue). With a program selected, the rest of
the buttons along the bottom of the screen will become active (Start, Edit/View,
Copy & Delete).
 New – Use this button to add a new program to the program list. The new
program name will be defaulted to a two digit sequential number (starting
with "Program 01") that will be incremented as new programs are added to
the list (i.e. Program 02, Program 03...). The default name can be edited as
desired in the New or Edit/View screen. Up to 30 programs can be saved.
