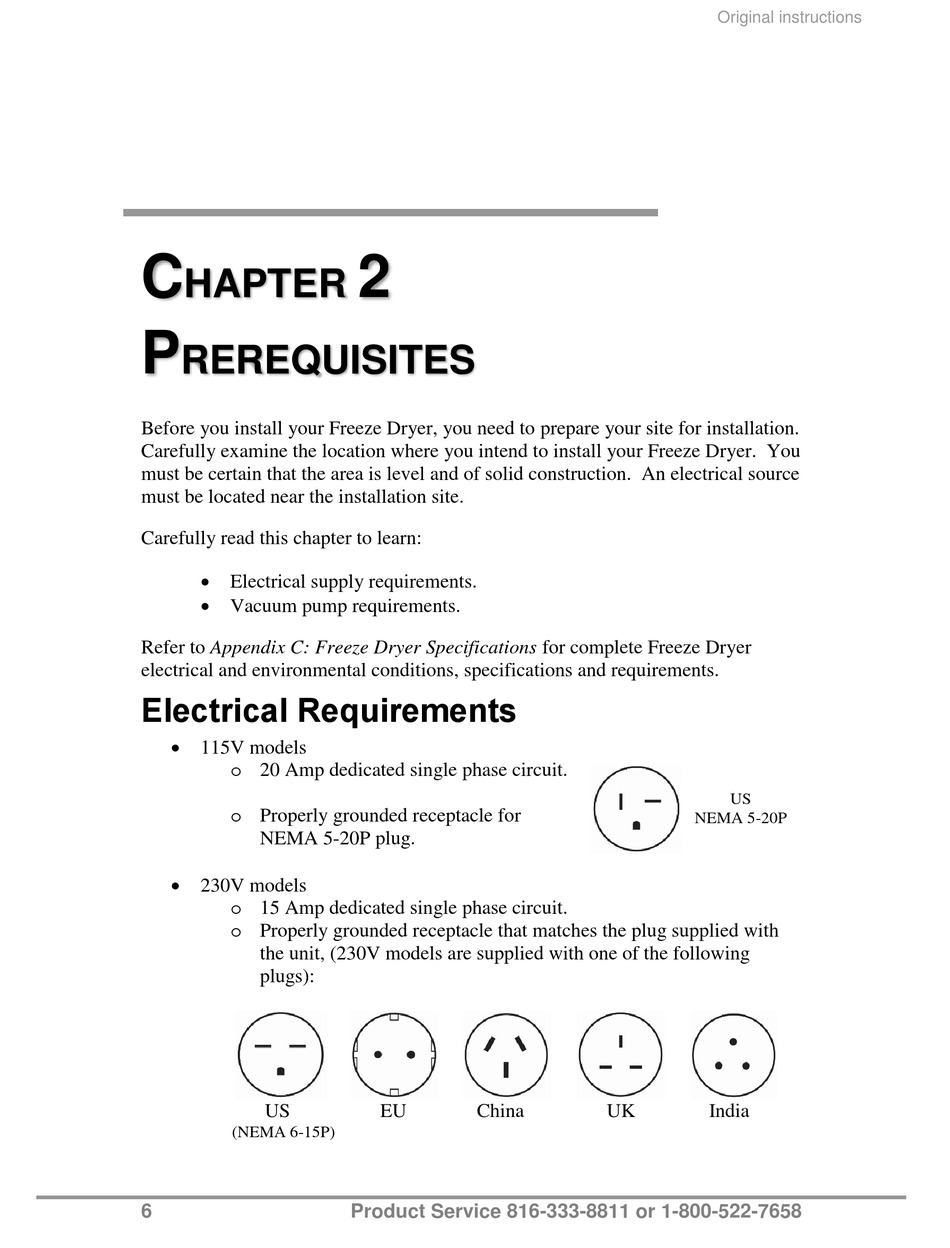

Chapter 2 Prerequisites; Electrical Requirements - Labconco FreeZone 70020 Series User Manual

C
HAPTER
P
REREQUISITES
Before you install your Freeze Dryer, you need to prepare your site for installation.
Carefully examine the location where you intend to install your Freeze Dryer. You
must be certain that the area is level and of solid construction. An electrical source
must be located near the installation site.
Carefully read this chapter to learn:
 Electrical supply requirements.
 Vacuum pump requirements.
Refer to Appendix C: Freeze Dryer Specifications for complete Freeze Dryer
electrical and environmental conditions, specifications and requirements.

Electrical Requirements

 115V models
o 20 Amp dedicated single phase circuit.
o Properly grounded receptacle for
NEMA 5-20P plug.
 230V models
o 15 Amp dedicated single phase circuit.
o Properly grounded receptacle that matches the plug supplied with
the unit, (230V models are supplied with one of the following
plugs):
US
(NEMA 6-15P)
6
2
EU China
Product Service 816-333-8811 or 1-800-522-7658
Original instructions
US
NEMA 5-20P
UK India
