Original instructions

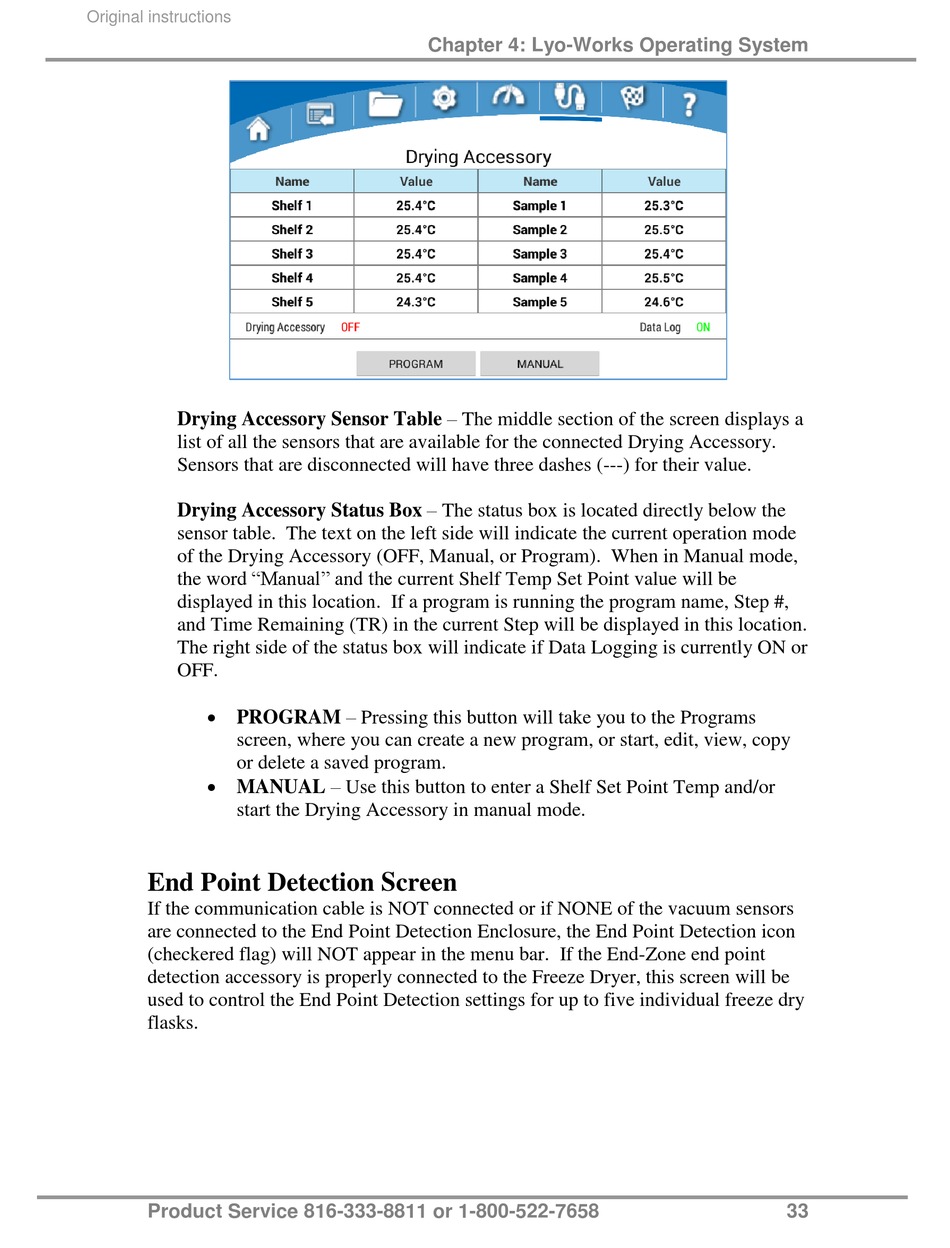

Drying Accessory Sensor Table – The middle section of the screen displays a
list of all the sensors that are available for the connected Drying Accessory.
Sensors that are disconnected will have three dashes (---) for their value.
Drying Accessory Status Box – The status box is located directly below the
sensor table. The text on the left side will indicate the current operation mode
of the Drying Accessory (OFF, Manual, or Program). When in Manual mode,
the word "Manual" and the current Shelf Temp Set Point value will be
displayed in this location. If a program is running the program name, Step #,
and Time Remaining (TR) in the current Step will be displayed in this location.
The right side of the status box will indicate if Data Logging is currently ON or
OFF.
 PROGRAM – Pressing this button will take you to the Programs
screen, where you can create a new program, or start, edit, view, copy
or delete a saved program.
 MANUAL – Use this button to enter a Shelf Set Point Temp and/or
start the Drying Accessory in manual mode.

End Point Detection Screen

If the communication cable is NOT connected or if NONE of the vacuum sensors
are connected to the End Point Detection Enclosure, the End Point Detection icon
(checkered flag) will NOT appear in the menu bar. If the End-Zone end point
detection accessory is properly connected to the Freeze Dryer, this screen will be
used to control the End Point Detection settings for up to five individual freeze dry
flasks.
Product Service 816-333-8811 or 1-800-522-7658
Chapter 4: Lyo-Works Operating System
33
