Drying Chamber Or Manifold Installation - Labconco FreeZone 70020 Series User Manual

Original instructions
Drying Chamber or Drying Manifold Installation
A drying chamber or drying manifold (purchased separately) may be positioned
directly above the 3-inch hole in the collector chamber lid.

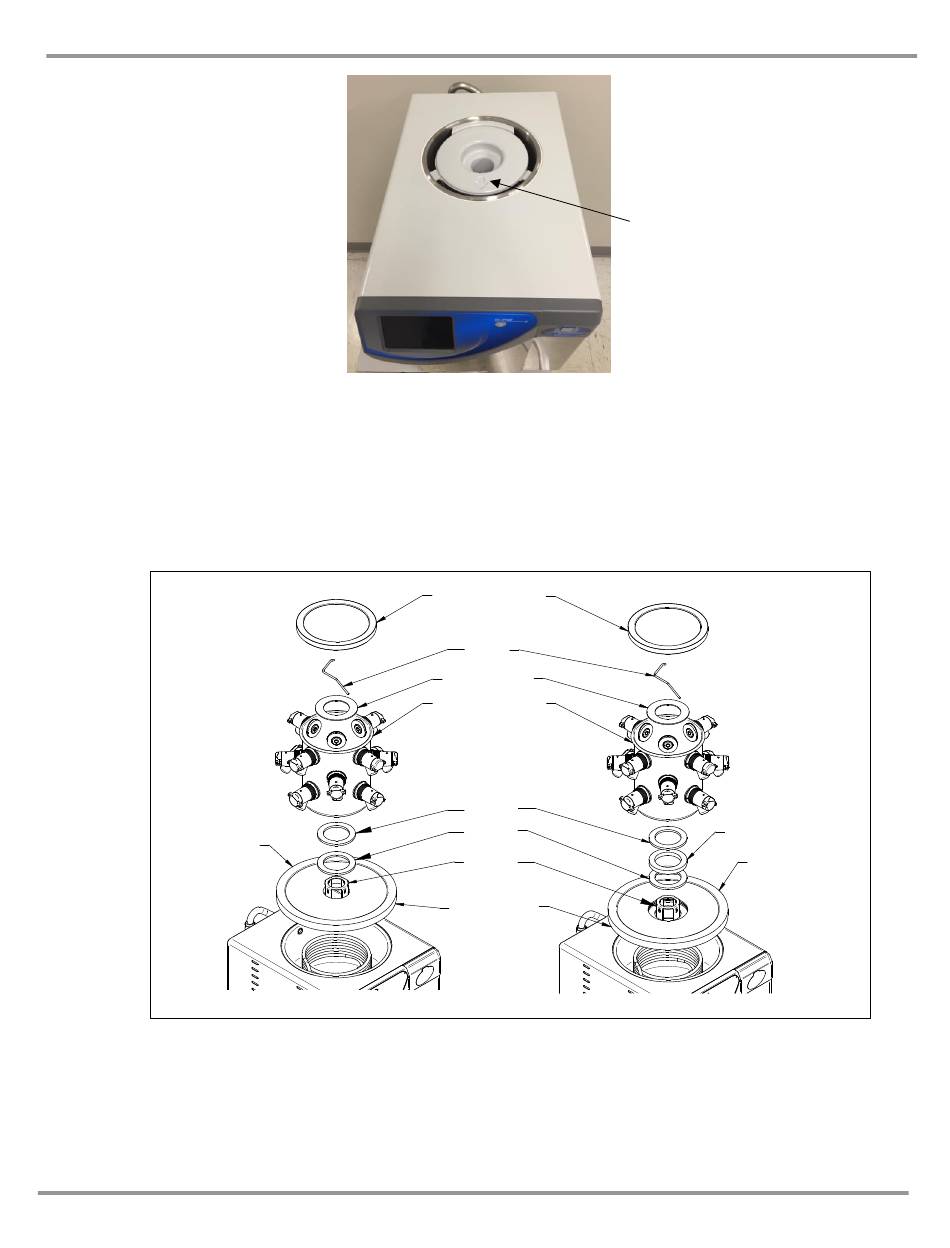

12 or 16 Port Drying Chamber Installation on Acrylic & Stainless Steel Lids
ACRYLIC
LID ASSEMBLY
Product Service 816-333-8811 or 1-800-522-7658
Chapter 3: Getting Started
DRYING CHAMBER
LID
LATCH
SPACER(SSTL)
DRYING CHAMBER
GASKET
GASKET
COLLAR
GASKET LIP
FACING DOWN
Arrow pointing forward
SPACER(PLASTIC)
STAINLESS STEEL
LID ASSEMBLY
