Touch Screen Operation

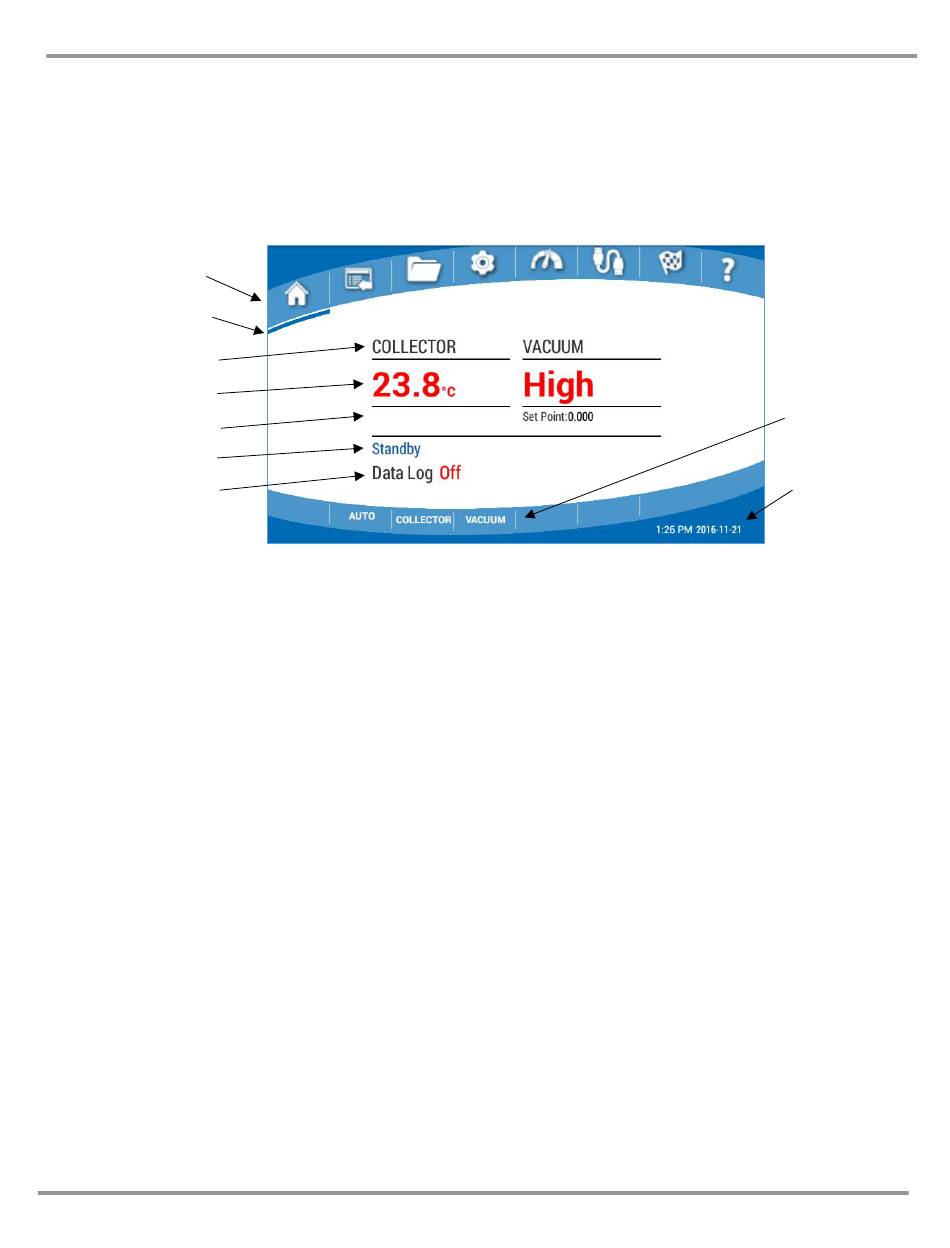

Home Screen

After initial power up, the Home screen will be displayed. Most of the general
operation and system monitoring can be done from the Home screen.
Menu
Indicator Bar
Line 1
Line 2
Line 3
Line 4
Line 5

Main Menu Icons

Menu icons are displayed across the top of the screen. Their descriptions from left
to right are as follows:
1.
2.
3.
4.
5.
6.
7.
8.

Moving between Menu Screens

You can move between menu screens by either touching the menu icons or
swiping across the screen from left to right or right to left.
The Following system parameters are displayed in the center portion of the screen:

Function Indicator Bar

A thin blue indicator bar will appear under the icon of the menu screen that is
currently being displayed. The same type of indicator bar will appear above the
operation buttons to signify if each function is ON or OFF.
Product Service 816-333-8811 or 1-800-522-7658
Chapter 4: Lyo-Works Operating System
Home
Programs
Data Logging
Settings
Sensors
Drying Accessory
End Point Detection
Help
Operation
Buttons
Time / Date
