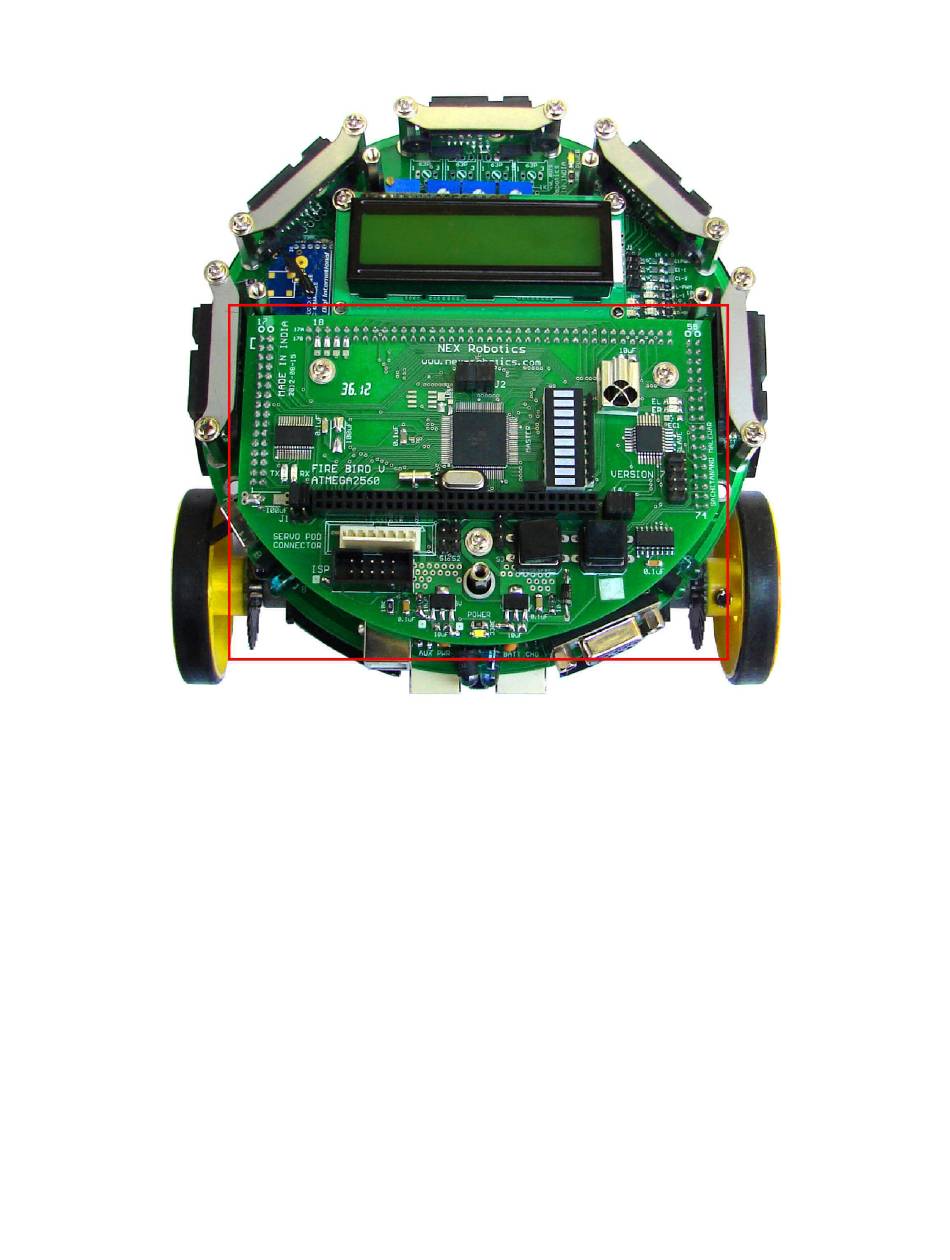

Figure 5.6: Microcontroller adapter board mounting
Do not apply unnecessary pressure onto the PCB while inserting into the connectors on
•
the main board. Check for any bent pins before inserting the PCB. Mount 3 screws on the
microcontroller board.
