NEX ROBOTICS FIREBIRD V ATMEGA 2560 Hardware Manual page 41

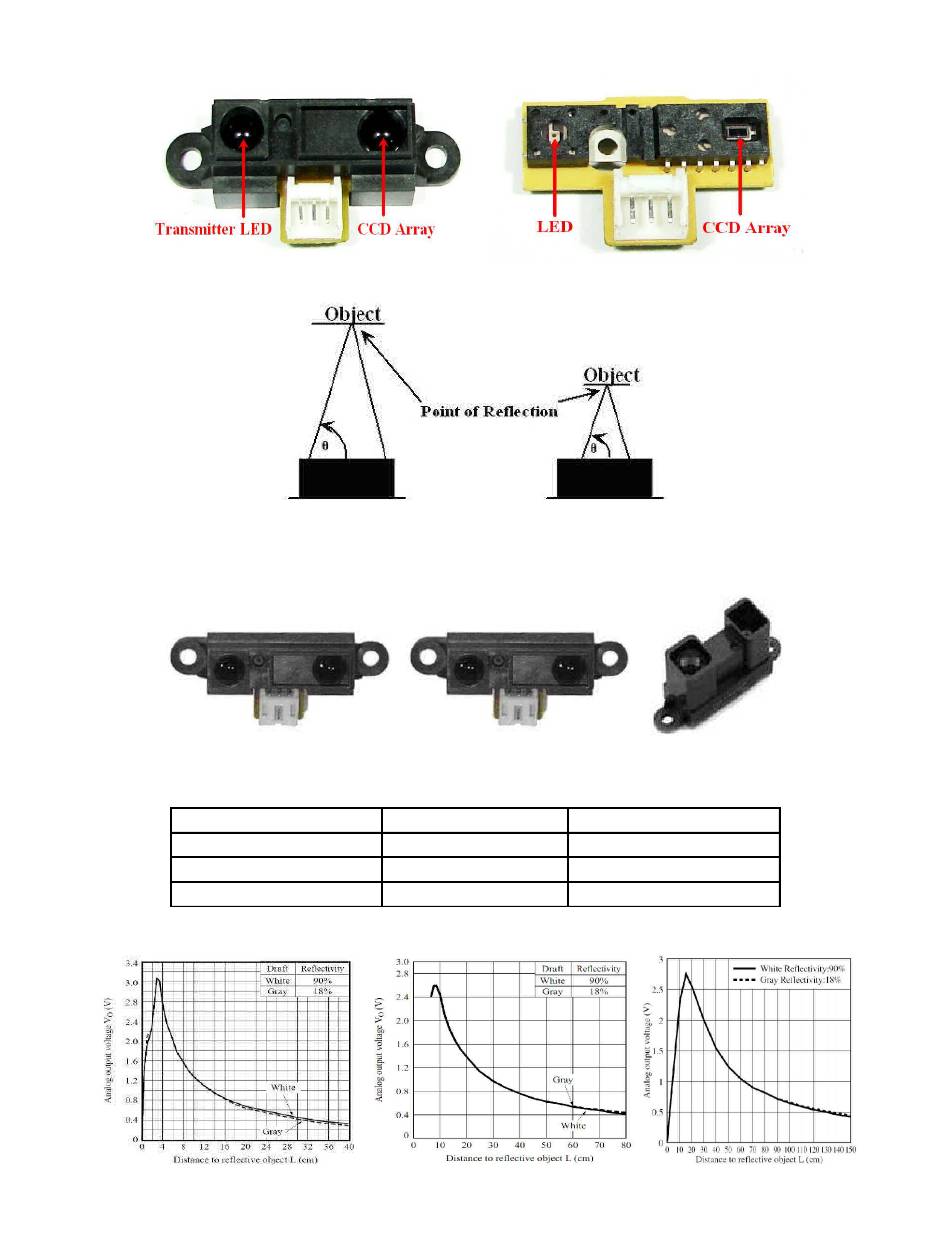

Figure 3.30: Infrared Range finder sensor and its inside view
Figure 3.31: Distance measurement based on angel of reflection
Fire Bird V supports three types of IR range sensors from Sharp Microelectronics.
GP2D120
Figure 3.32: Sharp IR Range sensors for Fire Bird V
Sensor
GP2D120X
GP2Y0A02YK
GP2Y0A02
Figure 3.33: Distance Vs. Output voltage of GP2D120, GP2Y0A02YK and GP2Y0A02YK
© NEX Robotics Pvt. Ltd. and ERTS Lab, CSE, IIT Bombay, INDIA
Range
30cm to 20cm
80cm to 10cm
150cm to 20cm
Table 3.9: Sharp IR Range sensors coverage
Fire Bird V ATMEGA2560 Hardware Manual
GP2D12
Blind Spot
4cm to 0cm
10cm to 0cm
20cm to 0cm
GP2Y0A02YK
41
