Fire Bird V ATMEGA2560 Hardware Manual

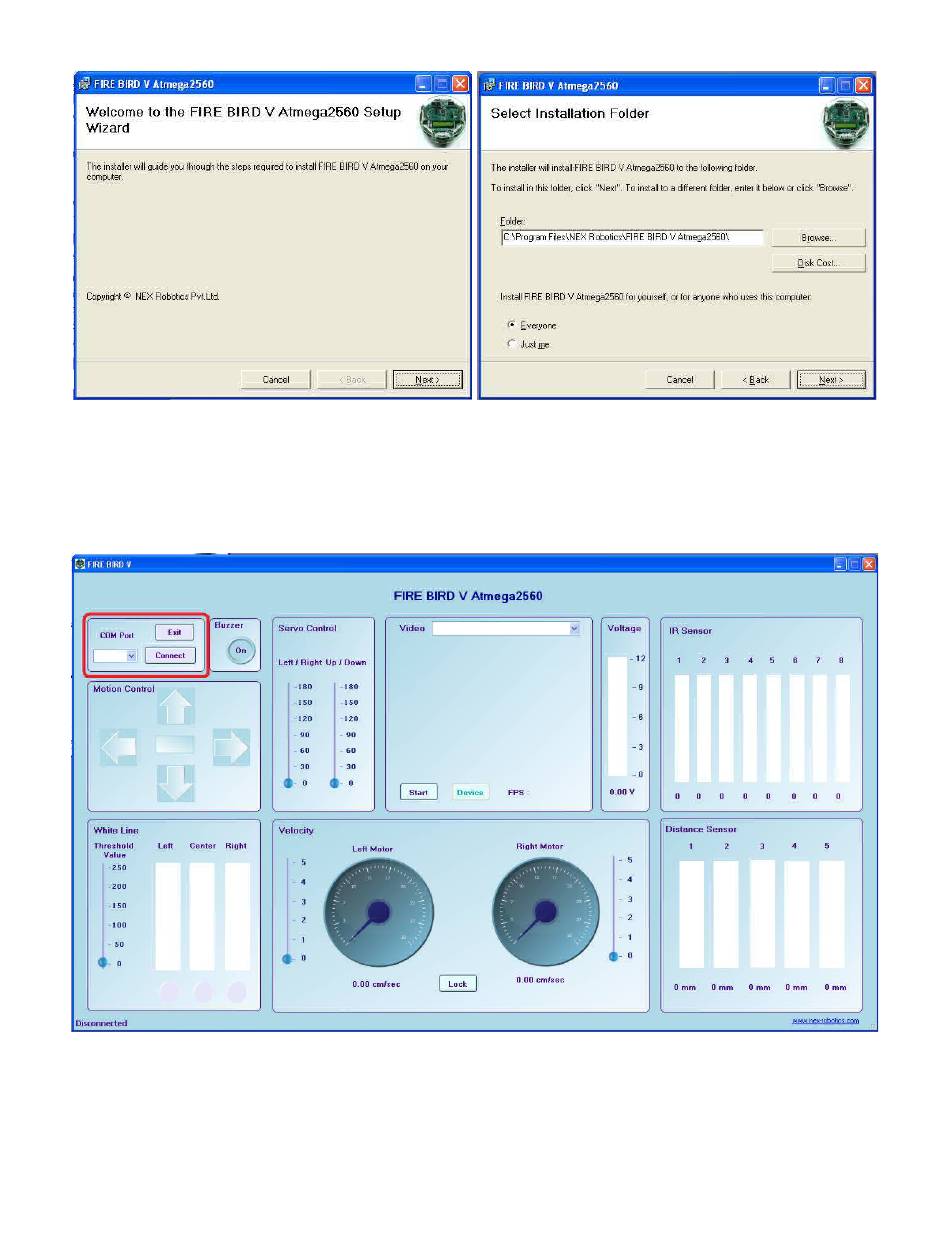

Figure 7.1
7.3 Using GUI
Step 1: After successful installation go to Start -> All Programs -> FIRE BIRD V Amega2560
-> FIRE BIRD V Amega2560 or click on Fire Bird V Amega2560 on your desktop location,
GUI will open.
Figure 7.2: Selecting correct com port
Step 2: Connect Robot with the PC using serial cable / NEX Robotics USB to serial converter or
with the XBee wireless module. For connections refer to section 6.2 to 6.6.
© NEX Robotics Pvt. Ltd. and ERTS Lab, CSE, IIT Bombay, INDIA
112
