3.19.2 Battery voltage sensing
Filtered battery voltage is used for battery voltage sensing. Analog to Digital Converter (ADC)
can measure maximum voltage of 5V. Hence battery voltage is scaled down from 8-15V to less
than 5V using resistor divider network formed by R12 and R13. It scales down the voltage by
approximately 1/3 of the actual value.
ATMEGA2560 ADC can be used in 8 bit or 10 bit resolution. To calculate voltage from the
ADC's acquired digital value in 8 bit resolution we use following formula:
V Battery = 0.7V + (ADC value * (5V/255) * ((10K + 3.3K) / 3.3K))
V Battery = 0.7V + (ADC value * 0.0790)
In the above formula:
0.7V represents voltage drop across the diodes D7 and D9. for more details refer to figure
•
3.11.
5V/255 represents the ADC step resolution
•
(10K + 3.3K) / 3.3K is a voltage divider formula
•
Note: For 10 bit resolution replace 255 by 1024.
© NEX Robotics Pvt. Ltd. and ERTS Lab, CSE, IIT Bombay, INDIA

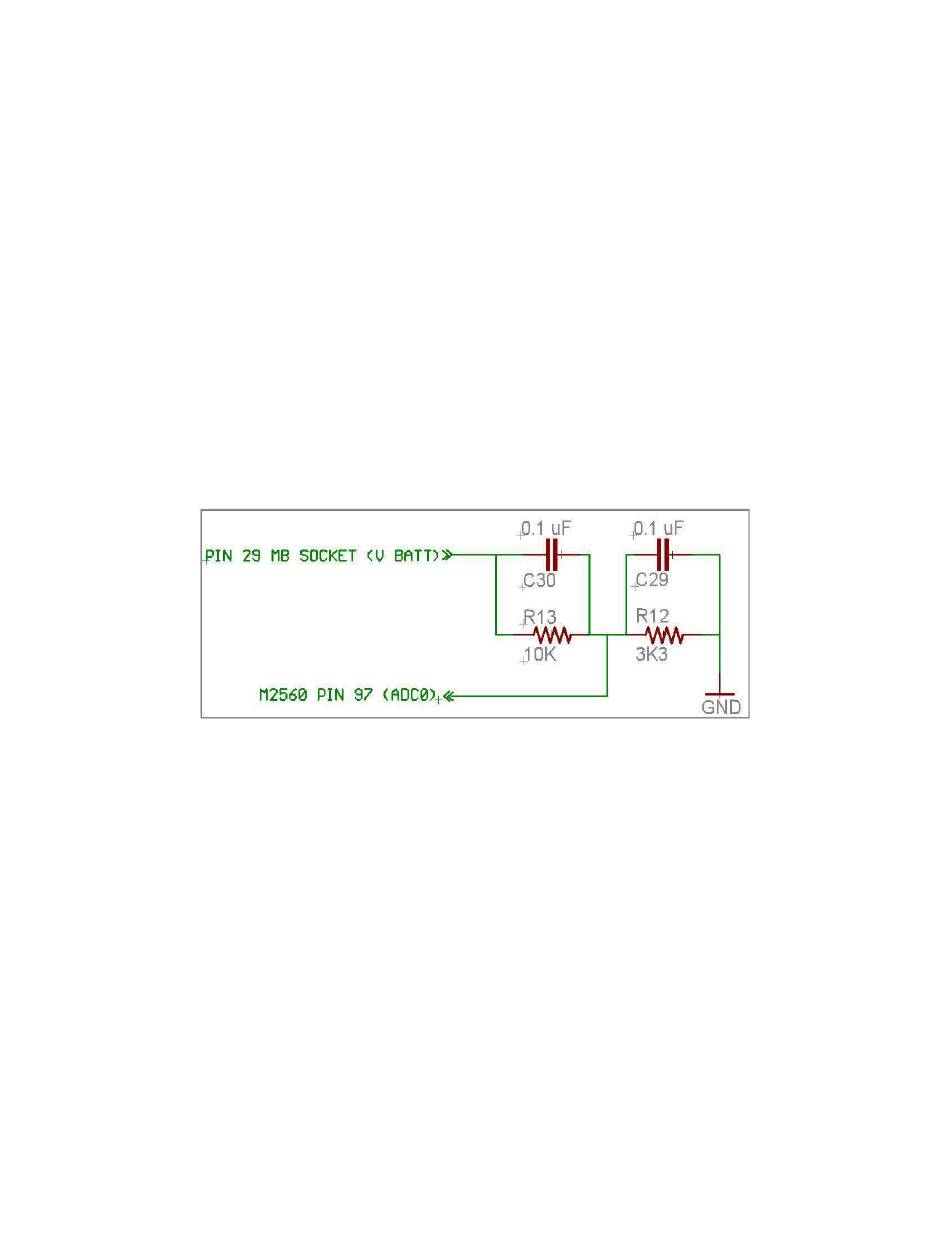

Figure 3.60: Battery Voltage Divider Bias Circuit
